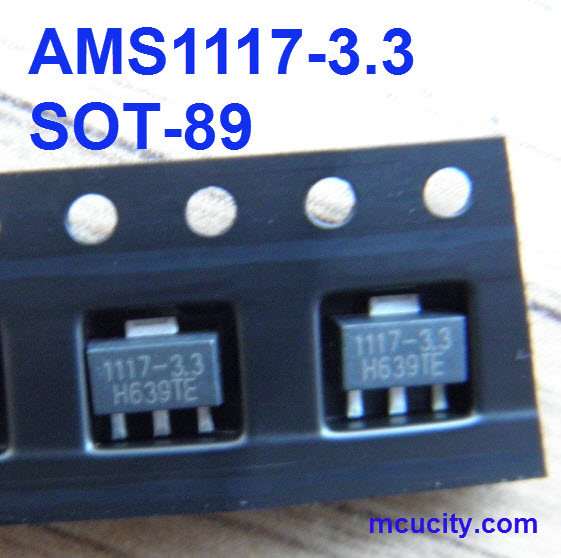

AMS1117- 3.3V 1117-3.3 (SOT-89) 500mA Low-Dropout Linear Regulator

IC เรกูเลเตอร์ LDO AMS1117-3.3 (+3.3V)

• Three Terminal Adjustable or Fixed Voltages*
  1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V
• Output Current of 500mA (SOT-89)
• Operates Down to 1V Dropout
• Line Regulation: 0.2% Max.
• Load Regulation: 0.4% Max.
• SOT-89, package available

APPLICATIONS

• High Efficiency Linear Regulators
• Post Regulators for Switching Supplies
• 5V to 3.3V Linear Regulator
• Battery Chargers
• Active SCSI Terminators
• Power Management for Notebook
• Battery Powered Instrumentation

GENERAL DESCRIPTION
The The AMS1117 series of adjustable and fixed voltage regulators are designed to provide up to1A output current and to operate
down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.3V, decreasing at lower
load currents.
On-chip trimming adjusts the reference voltage to 1.5%. Current limit is set to minimize the stress under overload conditions
on both the regulator and power source circuitry.
The AMS1117 devices are pin compatible with other three-terminal SCSI regulators and are offered in the low profile surface
mount SOT-89 SOT-223 package, in the 8L SOIC package and in the TO-252 (DPAK) plastic package.

DATASHEET AMS1117
