PICKIT 3.5 (3.5+) Programmer Offline (LOGO) Microchip ( PICKIT3 )
| รหัสสินค้า | M0260 |
| หมวดหมู่ | PIC microchip PICKIT 3 PICkit 2 |
| ราคา | 540.00 บาท |
| น้ำหนัก | 80 กรัม |
| สถานะสินค้า | พร้อมส่ง |
| สภาพ | สินค้าใหม่ |
| ลงสินค้า | 13 พ.ค. 2559 |
| อัพเดทล่าสุด | 4 ก.ย. 2568 |
| จำนวน | Unit |
หยิบลงตะกร้า
รายละเอียดสินค้า
PICKIT3 Programmer เครื่องโปรแกรม และ ดีบักเกอร์ PIC16 PIC18F PIC24 PIC32 ผ่าน ICSP
http://www.microchip.com/developmenttools/productdetails.aspx?partno=pg164130
http://kair.us/projects/pickitminus/index.html
http://kair.us/projects/pickitminus/pk2cmdminus_supported_devices.txt
PICKIT3 Programmer Description:
- USB (Full speed 12 Mbits/s interface to host PC)
- Real-time execution
- MPLAB IDE compatible (free copy included)
- Built-in over-voltage/short circuit monitor
- Firmware upgradeable from PC/web download
- Totally enclosed
- Supports low voltage to 2.0 volts (2.0v to 6.0v range)
- Diagnostic LEDs (power, busy, error)
- Read/write program and data memory of microcontroller
- Erase of program memory space with verification
- Freeze-peripherals at breakpoint
- Program up to 512K byte flash with the Programmer-to-Go
The MPLAB PICkit 3 allows debugging and programming of PIC® and dsPIC® Flash microcontrollers at a most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to the design engineer\\\'s PC using a full speed USB interface and can be connected to the target via an Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2, MPLAB ICD 3 and MPLAB REAL ICE).
Universal Programmer Seat Description:
Instructions for use:
Installing the microcontroller, 28-pin, 40-pin microcontroller left aligned 28/40P (A) This flag line short-circuit cap on the A position.
The 8,14,18,20-pin microcontroller aligned on the left 8P/14P/18P/20P flag line (B), shorting cap on the B position.
The ICD2, KIT2, KIT3 crystal head or 6Pin Block programming connection for programming the programming operation. (Note: a separate program of the seat can not be programmed the chip is programmed functions)
The seat supports the following programming microcontroller:
PIC16/18XX 40PIN Series devices (except 16F59)
PIC16/18XX 28PIN Series devices (except 16F57)
PIC16/18XX 18PIN Series devices
The PIC 8PIN/14PIN/20PIN family of devices (except 10FXX)

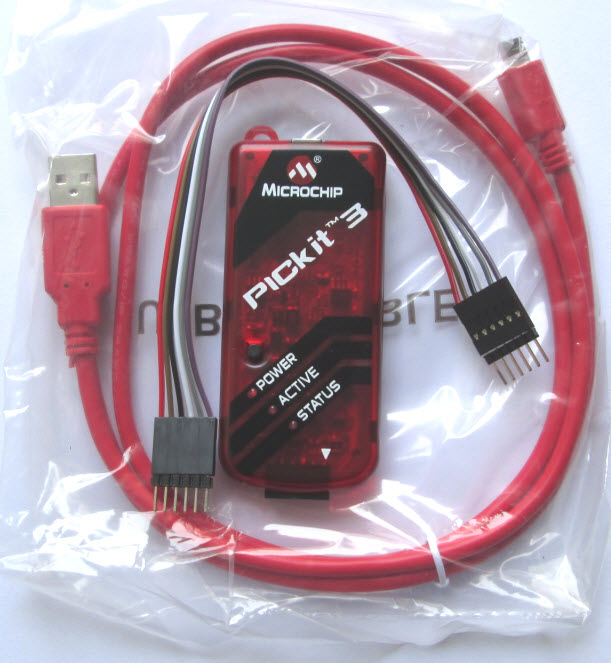

Package Included:
1 X PICKIT3 Simulator
1 X USB cable
1 X 6pin cable
PICkit Archives
https://www.microchip.com/development-tools/pic-and-dspic-downloads-archive
| PICkit 3 |
|---|
| PICkit 3 Stand Alone Programmer App v1.0 |
| PICkit 3 Programmer App and Scripting Tool v3.10 |

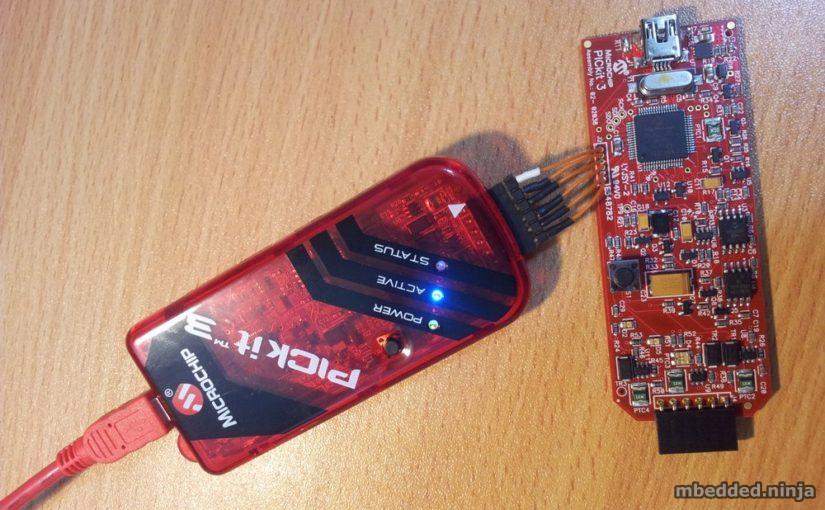

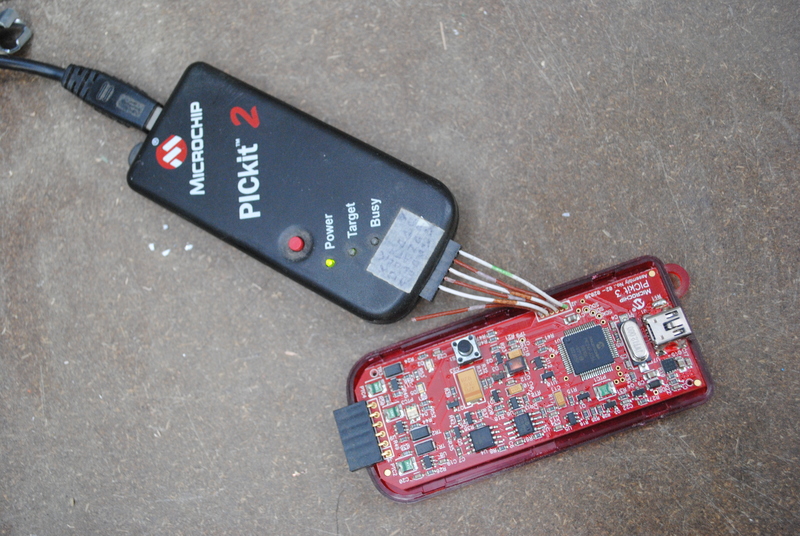

How To Unbrick A PICkit 3
เงื่อนไขอื่นๆ
PICkitminus and PK2CMD minus supported devices. Device file based on last publicly available PICKitPlus device file 2.63.218.15 from https://github.com/Anobium/PICKitPlus Some devices added and fixed by jaka. Device file and software updates available from http://kair.us/projects/pickitminus/index.html Device File Version: 2.64.20 Number of devices = 1510 Device Name Device Family Device ID ----------- ------------- --------- PIC10F200 Baseline 0x0000FFFF PIC10F202 Baseline 0x0000FFFF PIC10F204 Baseline 0x0000FFFF PIC10F206 Baseline 0x0000FFFF PIC10F220 Baseline 0x0000FFFF PIC10F222 Baseline 0x0000FFFF PIC12F508 Baseline 0x0000FFFF PIC12F509 Baseline 0x0000FFFF PIC12F510 Baseline 0x0000FFFF PIC12F519 Baseline 0x0000FFFF PIC16F54 Baseline 0x0000FFFF PIC16F57 Baseline 0x0000FFFF PIC16F59 Baseline 0x0000FFFF PIC16F505 Baseline 0x0000FFFF PIC16F506 Baseline 0x0000FFFF PIC16F526 Baseline 0x0000FFFF PIC16F527 Baseline 0x0000FFFF PIC16F570 Baseline 0x0000FFFF PIC12F609 Midrange/Standard 0x00002240 PIC12F615 Midrange/Standard 0x00002180 PIC12F617 Midrange/Standard 0x00001360 PIC12F629 Midrange/Standard 0x00000F80 PIC12F635 Midrange/Standard 0x00000FA0 PIC12F675 Midrange/Standard 0x00000FC0 PIC12F683 Midrange/Standard 0x00000460 PIC12F752 Midrange/Standard 0x00001500 PIC12HV609 Midrange/Standard 0x00002280 PIC12HV615 Midrange/Standard 0x000021A0 PIC12HV752 Midrange/Standard 0x00001520 PIC12LF1552 Midrange/Standard 0x00002BC0 PIC16F72 Midrange/Standard 0x000000A0 PIC16F73 Midrange/Standard 0x00000600 PIC16F74 Midrange/Standard 0x00000620 PIC16F76 Midrange/Standard 0x00000640 PIC16F77 Midrange/Standard 0x00000660 PIC16F84A Midrange/Standard 0x00000560 PIC16F87 Midrange/Standard 0x00000720 PIC16F88 Midrange/Standard 0x00000760 PIC16F610 Midrange/Standard 0x00002260 PIC16F616 Midrange/Standard 0x00001240 PIC16F627 Midrange/Standard 0x000007A0 PIC16F627A Midrange/Standard 0x00001040 PIC16F628 Midrange/Standard 0x000007C0 PIC16F628A Midrange/Standard 0x00001060 PIC16F630 Midrange/Standard 0x000010C0 PIC16F631 Midrange/Standard 0x00001420 PIC16F636 (639) Midrange/Standard 0x000010A0 PIC16F648A Midrange/Standard 0x00001100 PIC16F676 Midrange/Standard 0x000010E0 PIC16F677 Midrange/Standard 0x00001440 PIC16F684 Midrange/Standard 0x00001080 PIC16F685 Midrange/Standard 0x000004A0 PIC16F687 Midrange/Standard 0x00001320 PIC16F688 Midrange/Standard 0x00001180 PIC16F689 Midrange/Standard 0x00001340 PIC16F690 Midrange/Standard 0x00001400 PIC16F716 Midrange/Standard 0x00001140 PIC16F737 Midrange/Standard 0x00000BA0 PIC16F747 Midrange/Standard 0x00000BE0 PIC16F767 Midrange/Standard 0x00000EA0 PIC16F777 Midrange/Standard 0x00000DE0 PIC16F785 Midrange/Standard 0x00001200 PIC16F818 Midrange/Standard 0x000004C0 PIC16F819 Midrange/Standard 0x000004E0 PIC16F870 Midrange/Standard 0x00000D00 PIC16F871 Midrange/Standard 0x00000D20 PIC16F872 Midrange/Standard 0x000008E0 PIC16F873 Midrange/Standard 0x00000960 PIC16F873A Midrange/Standard 0x00000E40 PIC16F874 Midrange/Standard 0x00000920 PIC16F874A Midrange/Standard 0x00000E60 PIC16F876 Midrange/Standard 0x000009E0 PIC16F876A Midrange/Standard 0x00000E00 PIC16F877 Midrange/Standard 0x000009A0 PIC16F877A Midrange/Standard 0x00000E20 PIC16F882 Midrange/Standard 0x00002000 PIC16F883 Midrange/Standard 0x00002020 PIC16F884 Midrange/Standard 0x00002040 PIC16F886 Midrange/Standard 0x00002060 PIC16F887 Midrange/Standard 0x00002080 PIC16F913 Midrange/Standard 0x000013E0 PIC16F914 Midrange/Standard 0x000013C0 PIC16F916 Midrange/Standard 0x000013A0 PIC16F917 Midrange/Standard 0x00001380 PIC16F946 Midrange/Standard 0x00001460 PIC16HV610 Midrange/Standard 0x000022A0 PIC16HV616 Midrange/Standard 0x00001260 PIC16HV785 Midrange/Standard 0x00001220 PIC16C83 Midrange/NoDeviceId 0x00003FE0 PIC16C84 Midrange/NoDeviceId 0x00003FE0 PIC16F83 Midrange/NoDeviceId 0x00003FE0 PIC16F84 Midrange/NoDeviceId 0x00003FE0 PIC10F320 Midrange/1.8V Min 0x000029A0 PIC10F322 Midrange/1.8V Min 0x00002980 PIC10LF320 Midrange/1.8V Min 0x000029E0 PIC10LF322 Midrange/1.8V Min 0x000029C0 PIC12F1501 Midrange/1.8V Min 0x00002CC0 PIC12F1822 Midrange/1.8V Min 0x00002700 PIC12F1840 Midrange/1.8V Min 0x00001B80 PIC12LF1501 Midrange/1.8V Min 0x00002D80 PIC12LF1822 Midrange/1.8V Min 0x00002800 PIC12LF1840 Midrange/1.8V Min 0x00001BC0 PIC16F707 Midrange/1.8V Min 0x00001AC0 PIC16F720 Midrange/1.8V Min 0x00001C00 PIC16F721 Midrange/1.8V Min 0x00001C20 PIC16F722 Midrange/1.8V Min 0x00001880 PIC16F722A Midrange/1.8V Min 0x00001B20 PIC16F723 Midrange/1.8V Min 0x00001860 PIC16F723A Midrange/1.8V Min 0x00001B00 PIC16F724 Midrange/1.8V Min 0x00001840 PIC16F726 Midrange/1.8V Min 0x00001820 PIC16F727 Midrange/1.8V Min 0x00001800 PIC16F1503 Midrange/1.8V Min 0x00002CE0 PIC16F1507 Midrange/1.8V Min 0x00002D00 PIC16F1508 Midrange/1.8V Min 0x00002D20 PIC16F1509 Midrange/1.8V Min 0x00002D40 PIC16F1512 Midrange/1.8V Min 0x00001700 PIC16F1513 Midrange/1.8V Min 0x00001640 PIC16F1516 Midrange/1.8V Min 0x00001680 PIC16F1517 Midrange/1.8V Min 0x000016A0 PIC16F1518 Midrange/1.8V Min 0x000016C0 PIC16F1519 Midrange/1.8V Min 0x000016E0 PIC16F1526 Midrange/1.8V Min 0x00001580 PIC16F1527 Midrange/1.8V Min 0x000015A0 PIC16F1782 Midrange/1.8V Min 0x00002A00 PIC16F1783 Midrange/1.8V Min 0x00002A20 PIC16F1784 Midrange/1.8V Min 0x00002A40 PIC16F1786 Midrange/1.8V Min 0x00002A60 PIC16F1787 Midrange/1.8V Min 0x00002A80 PIC16F1823 Midrange/1.8V Min 0x00002720 PIC16F1824 Midrange/1.8V Min 0x00002740 PIC16F1825 Midrange/1.8V Min 0x00002760 PIC16F1826 Midrange/1.8V Min 0x00002780 PIC16F1827 Midrange/1.8V Min 0x000027A0 PIC16F1828 Midrange/1.8V Min 0x000027C0 PIC16F1829 Midrange/1.8V Min 0x000027E0 PIC16F1847 Midrange/1.8V Min 0x00001480 PIC16F1933 Midrange/1.8V Min 0x00002300 PIC16F1934 Midrange/1.8V Min 0x00002340 PIC16F1936 Midrange/1.8V Min 0x00002360 PIC16F1937 Midrange/1.8V Min 0x00002380 PIC16F1938 Midrange/1.8V Min 0x000023A0 PIC16F1939 Midrange/1.8V Min 0x000023C0 PIC16F1946 Midrange/1.8V Min 0x00002500 PIC16F1947 Midrange/1.8V Min 0x00002520 PIC16LF707 Midrange/1.8V Min 0x00001AE0 PIC16LF720 Midrange/1.8V Min 0x00001C40 PIC16LF721 Midrange/1.8V Min 0x00001C60 PIC16LF722 Midrange/1.8V Min 0x00001980 PIC16LF722A Midrange/1.8V Min 0x00001B60 PIC16LF723 Midrange/1.8V Min 0x00001960 PIC16LF723A Midrange/1.8V Min 0x00001B40 PIC16LF724 Midrange/1.8V Min 0x00001940 PIC16LF726 Midrange/1.8V Min 0x00001920 PIC16LF727 Midrange/1.8V Min 0x00001900 PIC16LF1503 Midrange/1.8V Min 0x00002DA0 PIC16LF1507 Midrange/1.8V Min 0x00002DC0 PIC16LF1508 Midrange/1.8V Min 0x00002DE0 PIC16LF1509 Midrange/1.8V Min 0x00002E00 PIC16LF1512 Midrange/1.8V Min 0x00001720 PIC16LF1513 Midrange/1.8V Min 0x00001740 PIC16LF1516 Midrange/1.8V Min 0x00001780 PIC16LF1517 Midrange/1.8V Min 0x000017A0 PIC16LF1518 Midrange/1.8V Min 0x000017C0 PIC16LF1519 Midrange/1.8V Min 0x000017E0 PIC16LF1526 Midrange/1.8V Min 0x000015C0 PIC16LF1527 Midrange/1.8V Min 0x000015E0 PIC16LF1554 Midrange/1.8V Min 0x00002F00 PIC16LF1559 Midrange/1.8V Min 0x00002F20 PIC16LF1782 Midrange/1.8V Min 0x00002AA0 PIC16LF1783 Midrange/1.8V Min 0x00002AC0 PIC16LF1784 Midrange/1.8V Min 0x00002AE0 PIC16LF1786 Midrange/1.8V Min 0x00002B00 PIC16LF1787 Midrange/1.8V Min 0x00002B20 PIC16LF1823 Midrange/1.8V Min 0x00002820 PIC16LF1824 Midrange/1.8V Min 0x00002840 PIC16LF1825 Midrange/1.8V Min 0x00002860 PIC16LF1826 Midrange/1.8V Min 0x00002880 PIC16LF1827 Midrange/1.8V Min 0x000028A0 PIC16LF1828 Midrange/1.8V Min 0x000028C0 PIC16LF1829 Midrange/1.8V Min 0x000028E0 PIC16LF1847 Midrange/1.8V Min 0x000014A0 PIC16LF1902 Midrange/1.8V Min 0x00002C20 PIC16LF1903 Midrange/1.8V Min 0x00002C00 PIC16LF1904 Midrange/1.8V Min 0x00002C80 PIC16LF1906 Midrange/1.8V Min 0x00002C60 PIC16LF1907 Midrange/1.8V Min 0x00002C40 PIC16LF1933 Midrange/1.8V Min 0x00002400 PIC16LF1934 Midrange/1.8V Min 0x00002440 PIC16LF1936 Midrange/1.8V Min 0x00002460 PIC16LF1937 Midrange/1.8V Min 0x00002480 PIC16LF1938 Midrange/1.8V Min 0x000024A0 PIC16LF1939 Midrange/1.8V Min 0x000024C0 PIC16LF1946 Midrange/1.8V Min 0x00002580 PIC16LF1947 Midrange/1.8V Min 0x000025A0 PIC12F1571 Midrange/1.8v MinII 0x00003051 PIC12F1572 Midrange/1.8v MinII 0x00003050 PIC12F1612 Midrange/1.8v MinII 0x00003058 PIC12LF1571 Midrange/1.8v MinII 0x00003053 PIC12LF1572 Midrange/1.8v MinII 0x00003052 PIC12LF1612 Midrange/1.8v MinII 0x00003059 PIC16F1454 Midrange/1.8v MinII 0x00003020 PIC16F1455 Midrange/1.8v MinII 0x00003021 PIC16F1459 Midrange/1.8v MinII 0x00003023 PIC16F1574 Midrange/1.8v MinII 0x00003000 PIC16F1575 Midrange/1.8v MinII 0x00003001 PIC16F1578 Midrange/1.8v MinII 0x00003002 PIC16F1579 Midrange/1.8v MinII 0x00003003 PIC16F1613 Midrange/1.8v MinII 0x0000304C PIC16F1614 Midrange/1.8v MinII 0x00003078 PIC16F1615 Midrange/1.8v MinII 0x0000307C PIC16F1618 Midrange/1.8v MinII 0x00003079 PIC16F1619 Midrange/1.8v MinII 0x0000307D PIC16F1703 Midrange/1.8v MinII 0x00003061 PIC16F1704 Midrange/1.8v MinII 0x00003043 PIC16F1705 Midrange/1.8v MinII 0x00003055 PIC16F1707 Midrange/1.8v MinII 0x00003060 PIC16F1708 Midrange/1.8v MinII 0x00003042 PIC16F1709 Midrange/1.8v MinII 0x00003054 PIC16F1713 Midrange/1.8v MinII 0x00003049 PIC16F1716 Midrange/1.8v MinII 0x00003048 PIC16F1717 Midrange/1.8v MinII 0x0000305C PIC16F1718 Midrange/1.8v MinII 0x0000305B PIC16F1719 Midrange/1.8v MinII 0x0000305A PIC16F1764 Midrange/1.8v MinII 0x00003080 PIC16F1765 Midrange/1.8v MinII 0x00003081 PIC16F1768 Midrange/1.8v MinII 0x00003084 PIC16F1769 Midrange/1.8v MinII 0x00003085 PIC16F1773 Midrange/1.8v MinII 0x0000308A PIC16F1776 Midrange/1.8v MinII 0x0000308B PIC16F1777 Midrange/1.8v MinII 0x0000308E PIC16F1778 Midrange/1.8v MinII 0x0000308F PIC16F1779 Midrange/1.8v MinII 0x00003090 PIC16F1788 Midrange/1.8v MinII 0x0000302B PIC16F1789 Midrange/1.8v MinII 0x0000302A PIC16F18313 Midrange/1.8v MinII 0x00003066 PIC16F18323 Midrange/1.8v MinII 0x00003067 PIC16F18324 Midrange/1.8v MinII 0x0000303A PIC16F18325 Midrange/1.8v MinII 0x0000303E PIC16F18326 Midrange/1.8v MinII 0x000030A4 PIC16F18344 Midrange/1.8v MinII 0x0000303B PIC16F18345 Midrange/1.8v MinII 0x0000303F PIC16F18346 Midrange/1.8v MinII 0x000030A5 PIC16LF1454 Midrange/1.8v MinII 0x00003024 PIC16LF1455 Midrange/1.8v MinII 0x00003025 PIC16LF1459 Midrange/1.8v MinII 0x00003027 PIC16LF1566 Midrange/1.8v MinII 0x00003046 PIC16LF1567 Midrange/1.8v MinII 0x00003047 PIC16LF1574 Midrange/1.8v MinII 0x00003004 PIC16LF1575 Midrange/1.8v MinII 0x00003005 PIC16LF1578 Midrange/1.8v MinII 0x00003006 PIC16LF1579 Midrange/1.8v MinII 0x00003007 PIC16LF1613 Midrange/1.8v MinII 0x0000304D PIC16LF1614 Midrange/1.8v MinII 0x0000307A PIC16LF1615 Midrange/1.8v MinII 0x0000307E PIC16LF1618 Midrange/1.8v MinII 0x0000307B PIC16LF1619 Midrange/1.8v MinII 0x0000307F PIC16LF1703 Midrange/1.8v MinII 0x00003063 PIC16LF1704 Midrange/1.8v MinII 0x00003045 PIC16LF1705 Midrange/1.8v MinII 0x00003057 PIC16LF1707 Midrange/1.8v MinII 0x00003062 PIC16LF1708 Midrange/1.8v MinII 0x00003044 PIC16LF1709 Midrange/1.8v MinII 0x00003056 PIC16LF1713 Midrange/1.8v MinII 0x0000304B PIC16LF1716 Midrange/1.8v MinII 0x0000304A PIC16LF1717 Midrange/1.8v MinII 0x0000305F PIC16LF1718 Midrange/1.8v MinII 0x0000305E PIC16LF1719 Midrange/1.8v MinII 0x0000305D PIC16LF1764 Midrange/1.8v MinII 0x00003082 PIC16LF1765 Midrange/1.8v MinII 0x00003083 PIC16LF1768 Midrange/1.8v MinII 0x00003086 PIC16LF1769 Midrange/1.8v MinII 0x00003087 PIC16LF1773 Midrange/1.8v MinII 0x0000308C PIC16LF1776 Midrange/1.8v MinII 0x0000308D PIC16LF1777 Midrange/1.8v MinII 0x00003091 PIC16LF1778 Midrange/1.8v MinII 0x00003092 PIC16LF1779 Midrange/1.8v MinII 0x00003093 PIC16LF1788 Midrange/1.8v MinII 0x0000302D PIC16LF1789 Midrange/1.8v MinII 0x0000302C PIC16LF18313 Midrange/1.8v MinII 0x00003068 PIC16LF18323 Midrange/1.8v MinII 0x00003069 PIC16LF18324 Midrange/1.8v MinII 0x0000303C PIC16LF18325 Midrange/1.8v MinII 0x00003040 PIC16LF18326 Midrange/1.8v MinII 0x000030A6 PIC16LF18344 Midrange/1.8v MinII 0x0000303D PIC16LF18345 Midrange/1.8v MinII 0x00003041 PIC16LF18346 Midrange/1.8v MinII 0x000030A7 PIC16F753 Midrange/1.8v SHV Min II 0x00003030 PIC16HV753 Midrange/1.8v SHV Min II 0x00003031 PIC16F13113 Midrange/1.8V Min MSB1st 0x00003121 PIC16F13114 Midrange/1.8V Min MSB1st 0x00003124 PIC16F13115 Midrange/1.8V Min MSB1st 0x00003127 PIC16F13123 Midrange/1.8V Min MSB1st 0x00003122 PIC16F13124 Midrange/1.8V Min MSB1st 0x00003125 PIC16F13125 Midrange/1.8V Min MSB1st 0x00003128 PIC16F13143 Midrange/1.8V Min MSB1st 0x00003123 PIC16F13144 Midrange/1.8V Min MSB1st 0x00003126 PIC16F13145 Midrange/1.8V Min MSB1st 0x00003129 PIC16F15213 Midrange/1.8V Min MSB1st 0x000030E3 PIC16F15214 Midrange/1.8V Min MSB1st 0x000030E6 PIC16F15223 Midrange/1.8V Min MSB1st 0x000030E4 PIC16F15224 Midrange/1.8V Min MSB1st 0x000030E7 PIC16F15225 Midrange/1.8V Min MSB1st 0x000030E9 PIC16F15243 Midrange/1.8V Min MSB1st 0x000030E5 PIC16F15244 Midrange/1.8V Min MSB1st 0x000030E8 PIC16F15245 Midrange/1.8V Min MSB1st 0x000030EA PIC16F15254 Midrange/1.8V Min MSB1st 0x000030F0 PIC16F15255 Midrange/1.8V Min MSB1st 0x000030EF PIC16F15256 Midrange/1.8V Min MSB1st 0x000030EB PIC16F15274 Midrange/1.8V Min MSB1st 0x000030EE PIC16F15275 Midrange/1.8V Min MSB1st 0x000030ED PIC16F15276 Midrange/1.8V Min MSB1st 0x000030EC PIC16F15313 Midrange/1.8V Min MSB1st 0x000030BE PIC16F15323 Midrange/1.8V Min MSB1st 0x000030C0 PIC16F15324 Midrange/1.8V Min MSB1st 0x000030C2 PIC16F15325 Midrange/1.8V Min MSB1st 0x000030C6 PIC16F15344 Midrange/1.8V Min MSB1st 0x000030C4 PIC16F15345 Midrange/1.8V Min MSB1st 0x000030C8 PIC16F15354 Midrange/1.8V Min MSB1st 0x000030AC PIC16F15355 Midrange/1.8V Min MSB1st 0x000030AE PIC16F15356 Midrange/1.8V Min MSB1st 0x000030B0 PIC16F15375 Midrange/1.8V Min MSB1st 0x000030B2 PIC16F15376 Midrange/1.8V Min MSB1st 0x000030B4 PIC16F15385 Midrange/1.8V Min MSB1st 0x000030B6 PIC16F15386 Midrange/1.8V Min MSB1st 0x000030B8 PIC16F17114 Midrange/1.8V Min MSB1st 0x000030DB PIC16F17115 Midrange/1.8V Min MSB1st 0x000030E2 PIC16F17124 Midrange/1.8V Min MSB1st 0x000030DC PIC16F17125 Midrange/1.8V Min MSB1st 0x000030DE PIC16F17126 Midrange/1.8V Min MSB1st 0x000030E0 PIC16F17144 Midrange/1.8V Min MSB1st 0x000030DD PIC16F17145 Midrange/1.8V Min MSB1st 0x000030DF PIC16F17146 Midrange/1.8V Min MSB1st 0x000030E1 PIC16F17154 Midrange/1.8V Min MSB1st 0x00003101 PIC16F17155 Midrange/1.8V Min MSB1st 0x00003103 PIC16F17156 Midrange/1.8V Min MSB1st 0x00003105 PIC16F17174 Midrange/1.8V Min MSB1st 0x00003102 PIC16F17175 Midrange/1.8V Min MSB1st 0x00003104 PIC16F17176 Midrange/1.8V Min MSB1st 0x00003106 PIC16F18013 Midrange/1.8V Min MSB1st 0x000030F1 PIC16F18014 Midrange/1.8V Min MSB1st 0x000030F2 PIC16F18015 Midrange/1.8V Min MSB1st 0x000030F5 PIC16F18023 Midrange/1.8V Min MSB1st 0x000030F3 PIC16F18024 Midrange/1.8V Min MSB1st 0x000030F4 PIC16F18025 Midrange/1.8V Min MSB1st 0x000030F6 PIC16F18026 Midrange/1.8V Min MSB1st 0x000030F9 PIC16F18044 Midrange/1.8V Min MSB1st 0x000030F7 PIC16F18045 Midrange/1.8V Min MSB1st 0x000030F8 PIC16F18046 Midrange/1.8V Min MSB1st 0x000030FA PIC16F18054 Midrange/1.8V Min MSB1st 0x000030FB PIC16F18055 Midrange/1.8V Min MSB1st 0x000030FC PIC16F18056 Midrange/1.8V Min MSB1st 0x000030FF PIC16F18074 Midrange/1.8V Min MSB1st 0x000030FD PIC16F18075 Midrange/1.8V Min MSB1st 0x000030FE PIC16F18076 Midrange/1.8V Min MSB1st 0x00003100 PIC16F18114 Midrange/1.8V Min MSB1st 0x00003107 PIC16F18115 Midrange/1.8V Min MSB1st 0x0000310C PIC16F18124 Midrange/1.8V Min MSB1st 0x00003108 PIC16F18125 Midrange/1.8V Min MSB1st 0x0000310D PIC16F18126 Midrange/1.8V Min MSB1st 0x00003111 PIC16F18144 Midrange/1.8V Min MSB1st 0x00003109 PIC16F18145 Midrange/1.8V Min MSB1st 0x0000310E PIC16F18146 Midrange/1.8V Min MSB1st 0x00003112 PIC16F18154 Midrange/1.8V Min MSB1st 0x0000310A PIC16F18155 Midrange/1.8V Min MSB1st 0x0000310F PIC16F18156 Midrange/1.8V Min MSB1st 0x00003113 PIC16F18174 Midrange/1.8V Min MSB1st 0x0000310B PIC16F18175 Midrange/1.8V Min MSB1st 0x00003110 PIC16F18176 Midrange/1.8V Min MSB1st 0x00003114 PIC16F18424 Midrange/1.8V Min MSB1st 0x000030CA PIC16F18425 Midrange/1.8V Min MSB1st 0x000030CC PIC16F18426 Midrange/1.8V Min MSB1st 0x000030D2 PIC16F18444 Midrange/1.8V Min MSB1st 0x000030CE PIC16F18445 Midrange/1.8V Min MSB1st 0x000030D0 PIC16F18446 Midrange/1.8V Min MSB1st 0x000030D4 PIC16F18455 Midrange/1.8V Min MSB1st 0x000030D7 PIC16F18456 Midrange/1.8V Min MSB1st 0x000030D9 PIC16F18854 Midrange/1.8V Min MSB1st 0x0000306A PIC16F18855 Midrange/1.8V Min MSB1st 0x0000306C PIC16F18856 Midrange/1.8V Min MSB1st 0x00003070 PIC16F18857 Midrange/1.8V Min MSB1st 0x00003074 PIC16F18875 Midrange/1.8V Min MSB1st 0x0000306D PIC16F18876 Midrange/1.8V Min MSB1st 0x00003071 PIC16F18877 Midrange/1.8V Min MSB1st 0x00003075 PIC16F19155 Midrange/1.8V Min MSB1st 0x00003096 PIC16F19156 Midrange/1.8V Min MSB1st 0x00003098 PIC16F19175 Midrange/1.8V Min MSB1st 0x0000309A PIC16F19176 Midrange/1.8V Min MSB1st 0x0000309C PIC16F19185 Midrange/1.8V Min MSB1st 0x000030BA PIC16F19186 Midrange/1.8V Min MSB1st 0x000030BC PIC16F19195 Midrange/1.8V Min MSB1st 0x0000309E PIC16F19196 Midrange/1.8V Min MSB1st 0x000030A0 PIC16F19197 Midrange/1.8V Min MSB1st 0x000030A2 PIC16LF15313 Midrange/1.8V Min MSB1st 0x000030BF PIC16LF15323 Midrange/1.8V Min MSB1st 0x000030C1 PIC16LF15324 Midrange/1.8V Min MSB1st 0x000030C3 PIC16LF15325 Midrange/1.8V Min MSB1st 0x000030C7 PIC16LF15344 Midrange/1.8V Min MSB1st 0x000030C5 PIC16LF15345 Midrange/1.8V Min MSB1st 0x000030C9 PIC16LF15354 Midrange/1.8V Min MSB1st 0x000030AD PIC16LF15355 Midrange/1.8V Min MSB1st 0x000030AF PIC16LF15356 Midrange/1.8V Min MSB1st 0x000030B1 PIC16LF15375 Midrange/1.8V Min MSB1st 0x000030B3 PIC16LF15376 Midrange/1.8V Min MSB1st 0x000030B5 PIC16LF15385 Midrange/1.8V Min MSB1st 0x000030B7 PIC16LF15386 Midrange/1.8V Min MSB1st 0x000030B9 PIC16LF18424 Midrange/1.8V Min MSB1st 0x000030CB PIC16LF18425 Midrange/1.8V Min MSB1st 0x000030CD PIC16LF18426 Midrange/1.8V Min MSB1st 0x000030D3 PIC16LF18444 Midrange/1.8V Min MSB1st 0x000030CF PIC16LF18445 Midrange/1.8V Min MSB1st 0x000030D1 PIC16LF18446 Midrange/1.8V Min MSB1st 0x000030D5 PIC16LF18455 Midrange/1.8V Min MSB1st 0x000030D8 PIC16LF18456 Midrange/1.8V Min MSB1st 0x000030DA PIC16LF18854 Midrange/1.8V Min MSB1st 0x0000306B PIC16LF18855 Midrange/1.8V Min MSB1st 0x0000306E PIC16LF18856 Midrange/1.8V Min MSB1st 0x00003072 PIC16LF18857 Midrange/1.8V Min MSB1st 0x00003076 PIC16LF18875 Midrange/1.8V Min MSB1st 0x0000306F PIC16LF18876 Midrange/1.8V Min MSB1st 0x00003073 PIC16LF18877 Midrange/1.8V Min MSB1st 0x00003077 PIC16LF19155 Midrange/1.8V Min MSB1st 0x00003097 PIC16LF19156 Midrange/1.8V Min MSB1st 0x00003099 PIC16LF19175 Midrange/1.8V Min MSB1st 0x0000309B PIC16LF19176 Midrange/1.8V Min MSB1st 0x0000309D PIC16LF19185 Midrange/1.8V Min MSB1st 0x000030BB PIC16LF19186 Midrange/1.8V Min MSB1st 0x000030BD PIC16LF19195 Midrange/1.8V Min MSB1st 0x0000309F PIC16LF19196 Midrange/1.8V Min MSB1st 0x000030A1 PIC16LF19197 Midrange/1.8V Min MSB1st 0x000030A3 PIC18F242 PIC18/PIC18F 0x00000480 PIC18F248 PIC18/PIC18F 0x00000800 PIC18F252 PIC18/PIC18F 0x00000400 PIC18F258 PIC18/PIC18F 0x00000840 PIC18F442 PIC18/PIC18F 0x000004A0 PIC18F448 PIC18/PIC18F 0x00000820 PIC18F452 PIC18/PIC18F 0x00000420 PIC18F458 PIC18/PIC18F 0x00000860 PIC18F1220 PIC18/PIC18F 0x000007E0 PIC18F1230 PIC18/PIC18F 0x00001E00 PIC18F1320 PIC18/PIC18F 0x000007C0 PIC18F1330 PIC18/PIC18F 0x00001E20 PIC18F1330-ICD PIC18/PIC18F 0x00001FE0 PIC18F2220 PIC18/PIC18F 0x00000580 PIC18F2221 PIC18/PIC18F 0x00002160 PIC18F2320 PIC18/PIC18F 0x00000500 PIC18F2321 PIC18/PIC18F 0x00002120 PIC18F2331 PIC18/PIC18F 0x000008E0 PIC18F2410 PIC18/PIC18F 0x00001160 PIC18F2420 PIC18/PIC18F 0x00001140 PIC18F2423 PIC18/PIC18F 0x00001150 PIC18F2431 PIC18/PIC18F 0x000008C0 PIC18F2450 PIC18/PIC18F 0x00002420 PIC18F2455 PIC18/PIC18F 0x00001260 PIC18F2458 PIC18/PIC18F 0x00002A60 PIC18F2480 PIC18/PIC18F 0x00001AE0 PIC18F2510 PIC18/PIC18F 0x00001120 PIC18F2515 PIC18/PIC18F 0x00000CE0 PIC18F2520 PIC18/PIC18F 0x00001100 PIC18F2523 PIC18/PIC18F 0x00001110 PIC18F2525 PIC18/PIC18F 0x00000CC0 PIC18F2550 PIC18/PIC18F 0x00001240 PIC18F2553 PIC18/PIC18F 0x00002A40 PIC18F2580 PIC18/PIC18F 0x00001AC0 PIC18F2585 PIC18/PIC18F 0x00000EE0 PIC18F2610 PIC18/PIC18F 0x00000CA0 PIC18F2620 PIC18/PIC18F 0x00000C80 PIC18F2680 PIC18/PIC18F 0x00000EC0 PIC18F2682 PIC18/PIC18F 0x00002700 PIC18F2685 PIC18/PIC18F 0x00002720 PIC18F4220 PIC18/PIC18F 0x000005A0 PIC18F4221 PIC18/PIC18F 0x00002140 PIC18F4320 PIC18/PIC18F 0x00000520 PIC18F4321 PIC18/PIC18F 0x00002100 PIC18F4331 PIC18/PIC18F 0x000008A0 PIC18F4410 PIC18/PIC18F 0x000010E0 PIC18F4420 PIC18/PIC18F 0x000010C0 PIC18F4423 PIC18/PIC18F 0x000010D0 PIC18F4431 PIC18/PIC18F 0x00000880 PIC18F4450 PIC18/PIC18F 0x00002400 PIC18F4455 PIC18/PIC18F 0x00001220 PIC18F4458 PIC18/PIC18F 0x00002A20 PIC18F4480 PIC18/PIC18F 0x00001AA0 PIC18F4510 PIC18/PIC18F 0x000010A0 PIC18F4515 PIC18/PIC18F 0x00000C60 PIC18F4520 PIC18/PIC18F 0x00001080 PIC18F4523 PIC18/PIC18F 0x00001090 PIC18F4525 PIC18/PIC18F 0x00000C40 PIC18F4550 PIC18/PIC18F 0x00001200 PIC18F4553 PIC18/PIC18F 0x00002A00 PIC18F4580 PIC18/PIC18F 0x00001A80 PIC18F4585 PIC18/PIC18F 0x00000EA0 PIC18F4610 PIC18/PIC18F 0x00000C20 PIC18F4620 PIC18/PIC18F 0x00000C00 PIC18F4680 PIC18/PIC18F 0x00000E80 PIC18F4682 PIC18/PIC18F 0x00002740 PIC18F4685 PIC18/PIC18F 0x00002760 PIC18F6310 PIC18/PIC18F 0x00000BE0 PIC18F6390 PIC18/PIC18F 0x00000BA0 PIC18F6393 PIC18/PIC18F 0x00001A00 PIC18F6410 PIC18/PIC18F 0x000006E0 PIC18F6490 PIC18/PIC18F 0x000006A0 PIC18F6493 PIC18/PIC18F 0x00000E00 PIC18F6520 PIC18/PIC18F 0x00000B20 PIC18F6525 PIC18/PIC18F 0x00000AE0 PIC18F6527 PIC18/PIC18F 0x00001340 PIC18F6585 PIC18/PIC18F 0x00000A60 PIC18F6620 PIC18/PIC18F 0x00000660 PIC18F6621 PIC18/PIC18F 0x00000AA0 PIC18F6622 PIC18/PIC18F 0x00001380 PIC18F6627 PIC18/PIC18F 0x000013C0 PIC18F6628 PIC18/PIC18F 0x000049C0 PIC18F6680 PIC18/PIC18F 0x00000A20 PIC18F6720 PIC18/PIC18F 0x00000620 PIC18F6722 PIC18/PIC18F 0x00001400 PIC18F6723 PIC18/PIC18F 0x00004A00 PIC18F8310 PIC18/PIC18F 0x00000BC0 PIC18F8390 PIC18/PIC18F 0x00000B80 PIC18F8393 PIC18/PIC18F 0x00001A20 PIC18F8410 PIC18/PIC18F 0x000006C0 PIC18F8490 PIC18/PIC18F 0x00000680 PIC18F8493 PIC18/PIC18F 0x00000E20 PIC18F8520 PIC18/PIC18F 0x00000B00 PIC18F8525 PIC18/PIC18F 0x00000AC0 PIC18F8527 PIC18/PIC18F 0x00001360 PIC18F8585 PIC18/PIC18F 0x00000A40 PIC18F8620 PIC18/PIC18F 0x00000640 PIC18F8621 PIC18/PIC18F 0x00000A80 PIC18F8622 PIC18/PIC18F 0x000013A0 PIC18F8627 PIC18/PIC18F 0x000013E0 PIC18F8628 PIC18/PIC18F 0x000049E0 PIC18F8680 PIC18/PIC18F 0x00000A00 PIC18F8720 PIC18/PIC18F 0x00000600 PIC18F8722 PIC18/PIC18F 0x00001420 PIC18F8723 PIC18/PIC18F 0x00004A20 PIC18LF6520 PIC18/PIC18F 0x00000B30 PIC18LF8520 PIC18/PIC18F 0x00000B10 PIC18F04Q20 PIC18/PIC18F MSB1st 0x00007AE0 PIC18F04Q40 PIC18/PIC18F MSB1st 0x00007640 PIC18F04Q41 PIC18/PIC18F MSB1st 0x00007540 PIC18F05Q20 PIC18/PIC18F MSB1st 0x00007AA0 PIC18F05Q40 PIC18/PIC18F MSB1st 0x00007600 PIC18F05Q41 PIC18/PIC18F MSB1st 0x00007500 PIC18F06Q20 PIC18/PIC18F MSB1st 0x00007A60 PIC18F06Q40 PIC18/PIC18F MSB1st 0x000075C0 PIC18F06Q41 PIC18/PIC18F MSB1st 0x00007580 PIC18F14Q20 PIC18/PIC18F MSB1st 0x00007AC0 PIC18F14Q40 PIC18/PIC18F MSB1st 0x00007620 PIC18F14Q41 PIC18/PIC18F MSB1st 0x00007520 PIC18F15Q20 PIC18/PIC18F MSB1st 0x00007A80 PIC18F15Q40 PIC18/PIC18F MSB1st 0x000075E0 PIC18F15Q41 PIC18/PIC18F MSB1st 0x000074E0 PIC18F16Q20 PIC18/PIC18F MSB1st 0x00007A40 PIC18F16Q40 PIC18/PIC18F MSB1st 0x000075A0 PIC18F16Q41 PIC18/PIC18F MSB1st 0x00007560 PIC18F24K40 PIC18/PIC18F MSB1st 0x000069C0 PIC18F24K42 PIC18/PIC18F MSB1st 0x00006CA0 PIC18F24Q10 PIC18/PIC18F MSB1st 0x000071C0 PIC18F24Q24 PIC18/PIC18F MSB1st 0x000078A0 PIC18F24Q71 PIC18/PIC18F MSB1st 0x00007660 PIC18F25K40 PIC18/PIC18F MSB1st 0x000069A0 PIC18F25K42 PIC18/PIC18F MSB1st 0x00006C80 PIC18F25K83 PIC18/PIC18F MSB1st 0x00006EE0 PIC18F25Q10 PIC18/PIC18F MSB1st 0x000071A0 PIC18F25Q24 PIC18/PIC18F MSB1st 0x000078C0 PIC18F25Q43 PIC18/PIC18F MSB1st 0x000073C0 PIC18F25Q71 PIC18/PIC18F MSB1st 0x000076A0 PIC18F26K40 PIC18/PIC18F MSB1st 0x00006980 PIC18F26K42 PIC18/PIC18F MSB1st 0x00006C60 PIC18F26K83 PIC18/PIC18F MSB1st 0x00006EC0 PIC18F26Q10 PIC18/PIC18F MSB1st 0x00007180 PIC18F26Q24 PIC18/PIC18F MSB1st 0x000078E0 PIC18F26Q43 PIC18/PIC18F MSB1st 0x00007420 PIC18F26Q71 PIC18/PIC18F MSB1st 0x000076E0 PIC18F26Q83 PIC18/PIC18F MSB1st 0x0000A306 PIC18F26Q84 PIC18/PIC18F MSB1st 0x0000A300 PIC18F27K40 PIC18/PIC18F MSB1st 0x00006960 PIC18F27K42 PIC18/PIC18F MSB1st 0x00006C40 PIC18F27Q10 PIC18/PIC18F MSB1st 0x00007100 PIC18F27Q43 PIC18/PIC18F MSB1st 0x00007480 PIC18F27Q83 PIC18/PIC18F MSB1st 0x00009909 PIC18F27Q84 PIC18/PIC18F MSB1st 0x00009903 PIC18F44Q71 PIC18/PIC18F MSB1st 0x000077A0 PIC18F45K40 PIC18/PIC18F MSB1st 0x00006940 PIC18F45K42 PIC18/PIC18F MSB1st 0x00006C20 PIC18F45Q10 PIC18/PIC18F MSB1st 0x00007140 PIC18F45Q24 PIC18/PIC18F MSB1st 0x00007940 PIC18F45Q43 PIC18/PIC18F MSB1st 0x000073E0 PIC18F45Q71 PIC18/PIC18F MSB1st 0x000077E0 PIC18F46K40 PIC18/PIC18F MSB1st 0x00006920 PIC18F46K42 PIC18/PIC18F MSB1st 0x00006C00 PIC18F46Q10 PIC18/PIC18F MSB1st 0x00007120 PIC18F46Q24 PIC18/PIC18F MSB1st 0x00007900 PIC18F46Q43 PIC18/PIC18F MSB1st 0x00007440 PIC18F46Q71 PIC18/PIC18F MSB1st 0x00007720 PIC18F46Q83 PIC18/PIC18F MSB1st 0x0000A307 PIC18F46Q84 PIC18/PIC18F MSB1st 0x0000A301 PIC18F47K40 PIC18/PIC18F MSB1st 0x00006900 PIC18F47K42 PIC18/PIC18F MSB1st 0x00006BE0 PIC18F47Q10 PIC18/PIC18F MSB1st 0x000070E0 PIC18F47Q43 PIC18/PIC18F MSB1st 0x000074A0 PIC18F47Q83 PIC18/PIC18F MSB1st 0x0000990A PIC18F47Q84 PIC18/PIC18F MSB1st 0x00009904 PIC18F54Q71 PIC18/PIC18F MSB1st 0x00007820 PIC18F55K42 PIC18/PIC18F MSB1st 0x00006BC0 PIC18F55Q24 PIC18/PIC18F MSB1st 0x00007960 PIC18F55Q43 PIC18/PIC18F MSB1st 0x00007400 PIC18F55Q71 PIC18/PIC18F MSB1st 0x00007860 PIC18F56K42 PIC18/PIC18F MSB1st 0x00006BA0 PIC18F56Q24 PIC18/PIC18F MSB1st 0x00007920 PIC18F56Q43 PIC18/PIC18F MSB1st 0x00007460 PIC18F56Q71 PIC18/PIC18F MSB1st 0x00007760 PIC18F56Q83 PIC18/PIC18F MSB1st 0x0000A308 PIC18F56Q84 PIC18/PIC18F MSB1st 0x0000A302 PIC18F57K42 PIC18/PIC18F MSB1st 0x00006B80 PIC18F57Q43 PIC18/PIC18F MSB1st 0x000074C0 PIC18F57Q83 PIC18/PIC18F MSB1st 0x0000990B PIC18F57Q84 PIC18/PIC18F MSB1st 0x00009905 PIC18F65K40 PIC18/PIC18F MSB1st 0x00006800 PIC18F66K40 PIC18/PIC18F MSB1st 0x00006AE0 PIC18F67K40 PIC18/PIC18F MSB1st 0x00006AC0 PIC18LF24K40 PIC18/PIC18F MSB1st 0x00006AA0 PIC18LF24K42 PIC18/PIC18F MSB1st 0x00006DE0 PIC18LF25K40 PIC18/PIC18F MSB1st 0x00006A80 PIC18LF25K42 PIC18/PIC18F MSB1st 0x00006DC0 PIC18LF25K83 PIC18/PIC18F MSB1st 0x00006F20 PIC18LF26K40 PIC18/PIC18F MSB1st 0x00006A60 PIC18LF26K42 PIC18/PIC18F MSB1st 0x00006DA0 PIC18LF26K83 PIC18/PIC18F MSB1st 0x00006F00 PIC18LF27K40 PIC18/PIC18F MSB1st 0x00006A40 PIC18LF27K42 PIC18/PIC18F MSB1st 0x00006D80 PIC18LF45K40 PIC18/PIC18F MSB1st 0x00006A20 PIC18LF45K42 PIC18/PIC18F MSB1st 0x00006D60 PIC18LF46K40 PIC18/PIC18F MSB1st 0x00006A00 PIC18LF46K42 PIC18/PIC18F MSB1st 0x00006D40 PIC18LF47K40 PIC18/PIC18F MSB1st 0x000069E0 PIC18LF47K42 PIC18/PIC18F MSB1st 0x00006D20 PIC18LF55K42 PIC18/PIC18F MSB1st 0x00006D00 PIC18LF56K42 PIC18/PIC18F MSB1st 0x00006CE0 PIC18LF57K42 PIC18/PIC18F MSB1st 0x00006CC0 PIC18LF65K40 PIC18/PIC18F MSB1st 0x00006B60 PIC18LF66K40 PIC18/PIC18F MSB1st 0x00006B40 PIC18LF67K40 PIC18/PIC18F MSB1st 0x00006B20 PIC18F24J10 PIC18/PIC18F_J_ 0x00001D00 PIC18F24J11 PIC18/PIC18F_J_ 0x00004D80 PIC18F24J50 PIC18/PIC18F_J_ 0x00004C00 PIC18F25J10 PIC18/PIC18F_J_ 0x00001C00 PIC18F25J11 PIC18/PIC18F_J_ 0x00004DA0 PIC18F25J50 PIC18/PIC18F_J_ 0x00004C20 PIC18F26J11 PIC18/PIC18F_J_ 0x00004DC0 PIC18F26J13 PIC18/PIC18F_J_ 0x00005920 PIC18F26J50 PIC18/PIC18F_J_ 0x00004C40 PIC18F26J53 PIC18/PIC18F_J_ 0x00005820 PIC18F27J13 PIC18/PIC18F_J_ 0x00005960 PIC18F27J53 PIC18/PIC18F_J_ 0x00005860 PIC18F44J10 PIC18/PIC18F_J_ 0x00001D20 PIC18F44J11 PIC18/PIC18F_J_ 0x00004DE0 PIC18F44J50 PIC18/PIC18F_J_ 0x00004C60 PIC18F45J10 PIC18/PIC18F_J_ 0x00001C20 PIC18F45J11 PIC18/PIC18F_J_ 0x00004E00 PIC18F45J50 PIC18/PIC18F_J_ 0x00004C80 PIC18F46J11 PIC18/PIC18F_J_ 0x00004E20 PIC18F46J13 PIC18/PIC18F_J_ 0x00005BA0 PIC18F46J50 PIC18/PIC18F_J_ 0x00004CA0 PIC18F46J53 PIC18/PIC18F_J_ 0x000058A0 PIC18F47J13 PIC18/PIC18F_J_ 0x000059E0 PIC18F47J53 PIC18/PIC18F_J_ 0x000058E0 PIC18F63J11 PIC18/PIC18F_J_ 0x00003900 PIC18F63J90 PIC18/PIC18F_J_ 0x00003800 PIC18F64J11 PIC18/PIC18F_J_ 0x00003920 PIC18F64J90 PIC18/PIC18F_J_ 0x00003820 PIC18F65J10 PIC18/PIC18F_J_ 0x00001520 PIC18F65J11 PIC18/PIC18F_J_ 0x00003960 PIC18F65J15 PIC18/PIC18F_J_ 0x00001540 PIC18F65J50 PIC18/PIC18F_J_ 0x00004100 PIC18F65J90 PIC18/PIC18F_J_ 0x00003860 PIC18F65J94 PIC18/PIC18F_J_ 0x00006400 PIC18F66J10 PIC18/PIC18F_J_ 0x00001560 PIC18F66J11 PIC18/PIC18F_J_ 0x00004440 PIC18F66J15 PIC18/PIC18F_J_ 0x00001580 PIC18F66J16 PIC18/PIC18F_J_ 0x00004460 PIC18F66J50 PIC18/PIC18F_J_ 0x00004140 PIC18F66J55 PIC18/PIC18F_J_ 0x00004160 PIC18F66J60 PIC18/PIC18F_J_ 0x00001800 PIC18F66J65 PIC18/PIC18F_J_ 0x00001F00 PIC18F66J90 PIC18/PIC18F_J_ 0x00005000 PIC18F66J93 PIC18/PIC18F_J_ 0x00005040 PIC18F66J94 PIC18/PIC18F_J_ 0x000063E0 PIC18F67J10 PIC18/PIC18F_J_ 0x000015A0 PIC18F67J11 PIC18/PIC18F_J_ 0x00004480 PIC18F67J50 PIC18/PIC18F_J_ 0x00004180 PIC18F67J60 PIC18/PIC18F_J_ 0x00001F20 PIC18F67J90 PIC18/PIC18F_J_ 0x00005020 PIC18F67J93 PIC18/PIC18F_J_ 0x00005060 PIC18F67J94 PIC18/PIC18F_J_ 0x000063A0 PIC18F83J11 PIC18/PIC18F_J_ 0x00003980 PIC18F83J90 PIC18/PIC18F_J_ 0x00003880 PIC18F84J11 PIC18/PIC18F_J_ 0x000039A0 PIC18F84J90 PIC18/PIC18F_J_ 0x000038A0 PIC18F85J10 PIC18/PIC18F_J_ 0x000015E0 PIC18F85J11 PIC18/PIC18F_J_ 0x000039E0 PIC18F85J15 PIC18/PIC18F_J_ 0x00001700 PIC18F85J50 PIC18/PIC18F_J_ 0x000041A0 PIC18F85J90 PIC18/PIC18F_J_ 0x000038E0 PIC18F85J94 PIC18/PIC18F_J_ 0x00006380 PIC18F86J10 PIC18/PIC18F_J_ 0x00001720 PIC18F86J11 PIC18/PIC18F_J_ 0x000044E0 PIC18F86J15 PIC18/PIC18F_J_ 0x00001740 PIC18F86J16 PIC18/PIC18F_J_ 0x00004500 PIC18F86J50 PIC18/PIC18F_J_ 0x000041E0 PIC18F86J55 PIC18/PIC18F_J_ 0x00004200 PIC18F86J60 PIC18/PIC18F_J_ 0x00001820 PIC18F86J65 PIC18/PIC18F_J_ 0x00001F40 PIC18F86J72 PIC18/PIC18F_J_ 0x00005040 PIC18F86J90 PIC18/PIC18F_J_ 0x00005080 PIC18F86J93 PIC18/PIC18F_J_ 0x000050C0 PIC18F86J94 PIC18/PIC18F_J_ 0x00006360 PIC18F87J10 PIC18/PIC18F_J_ 0x00001760 PIC18F87J11 PIC18/PIC18F_J_ 0x00004520 PIC18F87J50 PIC18/PIC18F_J_ 0x00004220 PIC18F87J60 PIC18/PIC18F_J_ 0x00001F60 PIC18F87J72 PIC18/PIC18F_J_ 0x00005060 PIC18F87J90 PIC18/PIC18F_J_ 0x000050A0 PIC18F87J93 PIC18/PIC18F_J_ 0x000050E0 PIC18F87J94 PIC18/PIC18F_J_ 0x00006320 PIC18F95J94 PIC18/PIC18F_J_ 0x00006300 PIC18F96J60 PIC18/PIC18F_J_ 0x00001840 PIC18F96J65 PIC18/PIC18F_J_ 0x00001F80 PIC18F96J94 PIC18/PIC18F_J_ 0x000062E0 PIC18F97J60 PIC18/PIC18F_J_ 0x00001FA0 PIC18F97J94 PIC18/PIC18F_J_ 0x000062A0 PIC18LF24J10 PIC18/PIC18F_J_ 0x00001D40 PIC18LF24J11 PIC18/PIC18F_J_ 0x00004E40 PIC18LF24J50 PIC18/PIC18F_J_ 0x00004CC0 PIC18LF25J10 PIC18/PIC18F_J_ 0x00001C40 PIC18LF25J11 PIC18/PIC18F_J_ 0x00004E60 PIC18LF25J50 PIC18/PIC18F_J_ 0x00004CE0 PIC18LF26J11 PIC18/PIC18F_J_ 0x00004E80 PIC18LF26J13 PIC18/PIC18F_J_ 0x00005B20 PIC18LF26J50 PIC18/PIC18F_J_ 0x00004D00 PIC18LF26J53 PIC18/PIC18F_J_ 0x00005A20 PIC18LF27J13 PIC18/PIC18F_J_ 0x00005B60 PIC18LF27J53 PIC18/PIC18F_J_ 0x00005A60 PIC18LF44J10 PIC18/PIC18F_J_ 0x00001D60 PIC18LF44J11 PIC18/PIC18F_J_ 0x00004EA0 PIC18LF44J50 PIC18/PIC18F_J_ 0x00004D20 PIC18LF45J10 PIC18/PIC18F_J_ 0x00001C60 PIC18LF45J11 PIC18/PIC18F_J_ 0x00004EC0 PIC18LF45J50 PIC18/PIC18F_J_ 0x00004D40 PIC18LF46J11 PIC18/PIC18F_J_ 0x00004EE0 PIC18LF46J13 PIC18/PIC18F_J_ 0x00005BA0 PIC18LF46J50 PIC18/PIC18F_J_ 0x00004D60 PIC18LF46J53 PIC18/PIC18F_J_ 0x00005AA0 PIC18LF47J13 PIC18/PIC18F_J_ 0x00005BE0 PIC18LF47J53 PIC18/PIC18F_J_ 0x00005AE0 PIC18F13K22 PIC18/PIC18F_K_ 0x00004F40 PIC18F13K50 PIC18/PIC18F_K_ 0x00004740 PIC18F14K22 PIC18/PIC18F_K_ 0x00004F20 PIC18F14K50 PIC18/PIC18F_K_ 0x00004760 PIC18F14K50-ICD PIC18/PIC18F_K_ 0x000047A0 PIC18F23K20 PIC18/PIC18F_K_ 0x000020E0 PIC18F23K22 PIC18/PIC18F_K_ 0x00005740 PIC18F24K20 PIC18/PIC18F_K_ 0x000020A0 PIC18F24K22 PIC18/PIC18F_K_ 0x00005640 PIC18F24K50 PIC18/PIC18F_K_ 0x00005C60 PIC18F25K20 PIC18/PIC18F_K_ 0x00002060 PIC18F25K22 PIC18/PIC18F_K_ 0x00005540 PIC18F25K50 PIC18/PIC18F_K_ 0x00005C20 PIC18F26K20 PIC18/PIC18F_K_ 0x00002020 PIC18F26K22 PIC18/PIC18F_K_ 0x00005440 PIC18F26K50 PIC18/PIC18F_K_ 0x00005D10 PIC18F43K20 PIC18/PIC18F_K_ 0x000020C0 PIC18F43K22 PIC18/PIC18F_K_ 0x00005700 PIC18F44K20 PIC18/PIC18F_K_ 0x00002080 PIC18F44K22 PIC18/PIC18F_K_ 0x00005600 PIC18F45K20 PIC18/PIC18F_K_ 0x00002040 PIC18F45K22 PIC18/PIC18F_K_ 0x00005500 PIC18F45K50 PIC18/PIC18F_K_ 0x00005C00 PIC18F46K20 PIC18/PIC18F_K_ 0x00002000 PIC18F46K22 PIC18/PIC18F_K_ 0x00005400 PIC18F46K50 PIC18/PIC18F_K_ 0x00005D00 PIC18LF13K22 PIC18/PIC18F_K_ 0x00004F80 PIC18LF13K50 PIC18/PIC18F_K_ 0x00004700 PIC18LF14K22 PIC18/PIC18F_K_ 0x00004F60 PIC18LF14K50 PIC18/PIC18F_K_ 0x00004720 PIC18LF14K50-ICD PIC18/PIC18F_K_ 0x00004B80 PIC18LF23K22 PIC18/PIC18F_K_ 0x00005760 PIC18LF24K22 PIC18/PIC18F_K_ 0x00005660 PIC18LF24K50 PIC18/PIC18F_K_ 0x00005CE0 PIC18LF25K22 PIC18/PIC18F_K_ 0x00005560 PIC18LF25K50 PIC18/PIC18F_K_ 0x00005CA0 PIC18LF26K22 PIC18/PIC18F_K_ 0x00005460 PIC18LF26K50 PIC18/PIC18F_K_ 0x00005D30 PIC18LF43K22 PIC18/PIC18F_K_ 0x00005720 PIC18LF44K22 PIC18/PIC18F_K_ 0x00005620 PIC18LF45K22 PIC18/PIC18F_K_ 0x00005520 PIC18LF45K50 PIC18/PIC18F_K_ 0x00005C80 PIC18LF46K22 PIC18/PIC18F_K_ 0x00005420 PIC18LF46K50 PIC18/PIC18F_K_ 0x00005D40 PIC18F25K80 PIC18/PIC18F_K90_K80_K22 0x00006180 PIC18F26K80 PIC18/PIC18F_K90_K80_K22 0x00006120 PIC18F45K80 PIC18/PIC18F_K90_K80_K22 0x00006160 PIC18F46K80 PIC18/PIC18F_K90_K80_K22 0x00006100 PIC18F65K22 PIC18/PIC18F_K90_K80_K22 0x00005300 PIC18F65K80 PIC18/PIC18F_K90_K80_K22 0x00006140 PIC18F65K90 PIC18/PIC18F_K90_K80_K22 0x00005240 PIC18F66K22 PIC18/PIC18F_K90_K80_K22 0x000052C0 PIC18F66K80 PIC18/PIC18F_K90_K80_K22 0x000060E0 PIC18F66K90 PIC18/PIC18F_K90_K80_K22 0x00005200 PIC18F67K22 PIC18/PIC18F_K90_K80_K22 0x00005180 PIC18F67K90 PIC18/PIC18F_K90_K80_K22 0x00005100 PIC18F85K22 PIC18/PIC18F_K90_K80_K22 0x00005360 PIC18F85K90 PIC18/PIC18F_K90_K80_K22 0x000052A0 PIC18F86K22 PIC18/PIC18F_K90_K80_K22 0x00005320 PIC18F86K90 PIC18/PIC18F_K90_K80_K22 0x00005260 PIC18F87K22 PIC18/PIC18F_K90_K80_K22 0x000051C0 PIC18F87K90 PIC18/PIC18F_K90_K80_K22 0x00005140 PIC18LF25K80 PIC18/PIC18F_K90_K80_K22 0x00006260 PIC18LF26K80 PIC18/PIC18F_K90_K80_K22 0x00006200 PIC18LF45K80 PIC18/PIC18F_K90_K80_K22 0x00006240 PIC18LF46K80 PIC18/PIC18F_K90_K80_K22 0x000061E0 PIC18LF65K80 PIC18/PIC18F_K90_K80_K22 0x00006220 PIC18LF66K80 PIC18/PIC18F_K90_K80_K22 0x000061C0 PIC24F04KA200 Others/PIC24 0x00000D02 PIC24F04KA201 Others/PIC24 0x00000D00 PIC24F04KL100 Others/PIC24 0x00004B01 PIC24F04KL101 Others/PIC24 0x00004B02 PIC24F08KA101 Others/PIC24 0x00000B08 PIC24F08KA102 Others/PIC24 0x00000B0A PIC24F08KL200 Others/PIC24 0x00004B05 PIC24F08KL201 Others/PIC24 0x00004B06 PIC24F08KL301 Others/PIC24 0x00004B0A PIC24F08KL302 Others/PIC24 0x00004B00 PIC24F08KL401 Others/PIC24 0x00004B0E PIC24F08KL402 Others/PIC24 0x00004B04 PIC24F08KM101 Others/PIC24 0x00005500 PIC24F08KM102 Others/PIC24 0x00005502 PIC24F08KM202 Others/PIC24 0x00005512 PIC24F08KM204 Others/PIC24 0x00005516 PIC24F16KA101 Others/PIC24 0x00000B01 PIC24F16KA102 Others/PIC24 0x00000B03 PIC24F16KA301 Others/PIC24 0x00004508 PIC24F16KA302 Others/PIC24 0x00004502 PIC24F16KA304 Others/PIC24 0x00004506 PIC24F16KL401 Others/PIC24 0x00004B1E PIC24F16KL402 Others/PIC24 0x00004B14 PIC24F16KM102 Others/PIC24 0x0000550A PIC24F16KM104 Others/PIC24 0x0000550E PIC24F16KM202 Others/PIC24 0x0000551A PIC24F16KM204 Others/PIC24 0x0000551E PIC24F32KA301 Others/PIC24 0x00004518 PIC24F32KA302 Others/PIC24 0x00004512 PIC24F32KA304 Others/PIC24 0x00004516 PIC24FJ16GA002 Others/PIC24 0x00000444 PIC24FJ16GA004 Others/PIC24 0x0000044C PIC24FJ32GA002 Others/PIC24 0x00000445 PIC24FJ32GA004 Others/PIC24 0x0000044D PIC24FJ32GA102 Others/PIC24 0x00004202 PIC24FJ32GA104 Others/PIC24 0x0000420A PIC24FJ32GB002 Others/PIC24 0x00004203 PIC24FJ32GB004 Others/PIC24 0x0000420B PIC24FJ48GA002 Others/PIC24 0x00000446 PIC24FJ48GA004 Others/PIC24 0x0000044E PIC24FJ64GA002 Others/PIC24 0x00000447 PIC24FJ64GA004 Others/PIC24 0x0000044F PIC24FJ64GA006 Others/PIC24 0x00000405 PIC24FJ64GA008 Others/PIC24 0x00000408 PIC24FJ64GA010 Others/PIC24 0x0000040B PIC24FJ64GA102 Others/PIC24 0x00004206 PIC24FJ64GA104 Others/PIC24 0x0000420E PIC24FJ64GA106 Others/PIC24 0x00001000 PIC24FJ64GA108 Others/PIC24 0x00001002 PIC24FJ64GA110 Others/PIC24 0x00001006 PIC24FJ64GB002 Others/PIC24 0x00004207 PIC24FJ64GB004 Others/PIC24 0x0000420F PIC24FJ64GB106 Others/PIC24 0x00001001 PIC24FJ64GB108 Others/PIC24 0x00001003 PIC24FJ64GB110 Others/PIC24 0x00001007 PIC24FJ96GA006 Others/PIC24 0x00000406 PIC24FJ96GA008 Others/PIC24 0x00000409 PIC24FJ96GA010 Others/PIC24 0x0000040C PIC24FJ128GA006 Others/PIC24 0x00000407 PIC24FJ128GA008 Others/PIC24 0x0000040A PIC24FJ128GA010 Others/PIC24 0x0000040D PIC24FJ128GA106 Others/PIC24 0x00001008 PIC24FJ128GA108 Others/PIC24 0x0000100A PIC24FJ128GA110 Others/PIC24 0x0000100E PIC24FJ128GB106 Others/PIC24 0x00001009 PIC24FJ128GB108 Others/PIC24 0x0000100B PIC24FJ128GB110 Others/PIC24 0x0000100F PIC24FJ192GA106 Others/PIC24 0x00001010 PIC24FJ192GA108 Others/PIC24 0x00001012 PIC24FJ192GA110 Others/PIC24 0x00001016 PIC24FJ192GB106 Others/PIC24 0x00001011 PIC24FJ192GB108 Others/PIC24 0x00001013 PIC24FJ192GB110 Others/PIC24 0x00001017 PIC24FJ256GA106 Others/PIC24 0x00001018 PIC24FJ256GA108 Others/PIC24 0x0000101A PIC24FJ256GA110 Others/PIC24 0x0000101E PIC24FJ256GB106 Others/PIC24 0x00001019 PIC24FJ256GB108 Others/PIC24 0x0000101B PIC24FJ256GB110 Others/PIC24 0x0000101F PIC24FV08KM101 Others/PIC24 0x00005501 PIC24FV08KM102 Others/PIC24 0x00005503 PIC24FV08KM202 Others/PIC24 0x00005513 PIC24FV08KM204 Others/PIC24 0x00005517 PIC24FV16KA301 Others/PIC24 0x00004509 PIC24FV16KA302 Others/PIC24 0x00004503 PIC24FV16KA304 Others/PIC24 0x00004507 PIC24FV16KM102 Others/PIC24 0x0000550B PIC24FV16KM104 Others/PIC24 0x0000550F PIC24FV16KM202 Others/PIC24 0x0000551B PIC24FV16KM204 Others/PIC24 0x0000551F PIC24FV32KA301 Others/PIC24 0x00004519 PIC24FV32KA302 Others/PIC24 0x00004513 PIC24FV32KA304 Others/PIC24 0x00004517 PIC24HJ12GP201 Others/PIC24 0x0000080A PIC24HJ12GP202 Others/PIC24 0x0000080B PIC24HJ16GP304 Others/PIC24 0x00000F17 PIC24HJ32GP202 Others/PIC24 0x00000F1D PIC24HJ32GP204 Others/PIC24 0x00000F1F PIC24HJ32GP302 Others/PIC24 0x00000645 PIC24HJ32GP304 Others/PIC24 0x00000647 PIC24HJ64GP202 Others/PIC24 0x00000655 PIC24HJ64GP204 Others/PIC24 0x00000657 PIC24HJ64GP206 Others/PIC24 0x00000041 PIC24HJ64GP210 Others/PIC24 0x00000047 PIC24HJ64GP502 Others/PIC24 0x00000675 PIC24HJ64GP504 Others/PIC24 0x00000677 PIC24HJ64GP506 Others/PIC24 0x00000049 PIC24HJ64GP510 Others/PIC24 0x0000004B PIC24HJ128GP202 Others/PIC24 0x00000665 PIC24HJ128GP204 Others/PIC24 0x00000667 PIC24HJ128GP206 Others/PIC24 0x0000005D PIC24HJ128GP210 Others/PIC24 0x0000005F PIC24HJ128GP306 Others/PIC24 0x00000065 PIC24HJ128GP310 Others/PIC24 0x00000067 PIC24HJ128GP502 Others/PIC24 0x0000067D PIC24HJ128GP504 Others/PIC24 0x0000067F PIC24HJ128GP506 Others/PIC24 0x00000061 PIC24HJ128GP510 Others/PIC24 0x00000063 PIC24HJ256GP206 Others/PIC24 0x00000071 PIC24HJ256GP210 Others/PIC24 0x00000073 PIC24HJ256GP610 Others/PIC24 0x0000007B PIC24FJ64GA202 Others/PIC24r2 0x00004C50 PIC24FJ64GA204 Others/PIC24r2 0x00004C51 PIC24FJ64GA306 Others/PIC24r2 0x000046C0 PIC24FJ64GA308 Others/PIC24r2 0x000046C4 PIC24FJ64GA310 Others/PIC24r2 0x000046C8 PIC24FJ64GA702 Others/PIC24r2 0x00007506 PIC24FJ64GA704 Others/PIC24r2 0x00007505 PIC24FJ64GA705 Others/PIC24r2 0x00007507 PIC24FJ64GB202 Others/PIC24r2 0x00004C58 PIC24FJ64GB204 Others/PIC24r2 0x00004C59 PIC24FJ64GC006 Others/PIC24r2 0x00004888 PIC24FJ64GC008 Others/PIC24r2 0x0000488A PIC24FJ64GC010 Others/PIC24r2 0x00004884 PIC24FJ64GL302 Others/PIC24r2 0x00002200 PIC24FJ64GL303 Others/PIC24r2 0x00002202 PIC24FJ64GL305 Others/PIC24r2 0x00002204 PIC24FJ64GL306 Others/PIC24r2 0x00002206 PIC24FJ128DA106 Others/PIC24r2 0x00004109 PIC24FJ128DA110 Others/PIC24r2 0x0000410B PIC24FJ128DA206 Others/PIC24r2 0x00004108 PIC24FJ128DA210 Others/PIC24r2 0x0000410A PIC24FJ128GA202 Others/PIC24r2 0x00004C52 PIC24FJ128GA204 Others/PIC24r2 0x00004C53 PIC24FJ128GA306 Others/PIC24r2 0x000046C2 PIC24FJ128GA308 Others/PIC24r2 0x000046C6 PIC24FJ128GA310 Others/PIC24r2 0x000046CA PIC24FJ128GA606 Others/PIC24r2 0x00006000 PIC24FJ128GA610 Others/PIC24r2 0x00006001 PIC24FJ128GA702 Others/PIC24r2 0x0000750A PIC24FJ128GA704 Others/PIC24r2 0x00007509 PIC24FJ128GA705 Others/PIC24r2 0x0000750B PIC24FJ128GB202 Others/PIC24r2 0x00004C5A PIC24FJ128GB204 Others/PIC24r2 0x00004C5B PIC24FJ128GB206 Others/PIC24r2 0x00004100 PIC24FJ128GB210 Others/PIC24r2 0x00004102 PIC24FJ128GB606 Others/PIC24r2 0x00006004 PIC24FJ128GB610 Others/PIC24r2 0x00006005 PIC24FJ128GC006 Others/PIC24r2 0x00004889 PIC24FJ128GC008 Others/PIC24r2 0x0000488B PIC24FJ128GC010 Others/PIC24r2 0x00004885 PIC24FJ128GL302 Others/PIC24r2 0x00002208 PIC24FJ128GL303 Others/PIC24r2 0x0000220A PIC24FJ128GL305 Others/PIC24r2 0x0000220C PIC24FJ128GL306 Others/PIC24r2 0x0000220E PIC24FJ128GL405 Others/PIC24r2 0x00002300 PIC24FJ128GL406 Others/PIC24r2 0x00002304 PIC24FJ128GL408 Others/PIC24r2 0x00002308 PIC24FJ128GL410 Others/PIC24r2 0x0000230C PIC24FJ128GU405 Others/PIC24r2 0x00002301 PIC24FJ128GU406 Others/PIC24r2 0x00002305 PIC24FJ128GU408 Others/PIC24r2 0x00002309 PIC24FJ128GU410 Others/PIC24r2 0x0000230D PIC24FJ256DA106 Others/PIC24r2 0x0000410D PIC24FJ256DA110 Others/PIC24r2 0x0000410F PIC24FJ256DA206 Others/PIC24r2 0x0000410C PIC24FJ256DA210 Others/PIC24r2 0x0000410E PIC24FJ256GA606 Others/PIC24r2 0x00006008 PIC24FJ256GA610 Others/PIC24r2 0x00006009 PIC24FJ256GA702 Others/PIC24r2 0x0000750E PIC24FJ256GA704 Others/PIC24r2 0x0000750D PIC24FJ256GA705 Others/PIC24r2 0x0000750F PIC24FJ256GB206 Others/PIC24r2 0x00004104 PIC24FJ256GB210 Others/PIC24r2 0x00004106 PIC24FJ256GB606 Others/PIC24r2 0x0000600C PIC24FJ256GB610 Others/PIC24r2 0x0000600D PIC24FJ256GL405 Others/PIC24r2 0x00002310 PIC24FJ256GL406 Others/PIC24r2 0x00002314 PIC24FJ256GL408 Others/PIC24r2 0x00002318 PIC24FJ256GL410 Others/PIC24r2 0x0000231C PIC24FJ256GU405 Others/PIC24r2 0x00002311 PIC24FJ256GU406 Others/PIC24r2 0x00002315 PIC24FJ256GU408 Others/PIC24r2 0x00002319 PIC24FJ256GU410 Others/PIC24r2 0x0000231D PIC24FJ512GA606 Others/PIC24r2 0x00006010 PIC24FJ512GA610 Others/PIC24r2 0x00006011 PIC24FJ512GB606 Others/PIC24r2 0x00006014 PIC24FJ512GB610 Others/PIC24r2 0x00006015 PIC24FJ512GL405 Others/PIC24r2 0x00002320 PIC24FJ512GL406 Others/PIC24r2 0x00002324 PIC24FJ512GL408 Others/PIC24r2 0x00002328 PIC24FJ512GL410 Others/PIC24r2 0x0000232C PIC24FJ512GU405 Others/PIC24r2 0x00002321 PIC24FJ512GU406 Others/PIC24r2 0x00002325 PIC24FJ512GU408 Others/PIC24r2 0x00002329 PIC24FJ512GU410 Others/PIC24r2 0x0000232D PIC24FJ1024GA606 Others/PIC24r2 0x00006018 PIC24FJ1024GA610 Others/PIC24r2 0x00006019 PIC24FJ1024GB606 Others/PIC24r2 0x0000601C PIC24FJ1024GB610 Others/PIC24r2 0x0000601D DSPIC33EP32GP502 Others/PIC24EP 0x00001C0D DSPIC33EP32GP503 Others/PIC24EP 0x00001C0E DSPIC33EP32GP504 Others/PIC24EP 0x00001C0C DSPIC33EP32MC202 Others/PIC24EP 0x00001C01 DSPIC33EP32MC203 Others/PIC24EP 0x00001C02 DSPIC33EP32MC204 Others/PIC24EP 0x00001C00 DSPIC33EP32MC502 Others/PIC24EP 0x00001C05 DSPIC33EP32MC503 Others/PIC24EP 0x00001C06 DSPIC33EP32MC504 Others/PIC24EP 0x00001C04 DSPIC33EP64GP502 Others/PIC24EP 0x00001D2D DSPIC33EP64GP503 Others/PIC24EP 0x00001D2E DSPIC33EP64GP504 Others/PIC24EP 0x00001D2C DSPIC33EP64GP506 Others/PIC24EP 0x00001D2F DSPIC33EP64MC202 Others/PIC24EP 0x00001D21 DSPIC33EP64MC203 Others/PIC24EP 0x00001D22 DSPIC33EP64MC204 Others/PIC24EP 0x00001D20 DSPIC33EP64MC206 Others/PIC24EP 0x00001D23 DSPIC33EP64MC502 Others/PIC24EP 0x00001D25 DSPIC33EP64MC503 Others/PIC24EP 0x00001D26 DSPIC33EP64MC504 Others/PIC24EP 0x00001D24 DSPIC33EP64MC506 Others/PIC24EP 0x00001D27 DSPIC33EP128GP502 Others/PIC24EP 0x00001E4D DSPIC33EP128GP504 Others/PIC24EP 0x00001E4C DSPIC33EP128GP506 Others/PIC24EP 0x00001E4F DSPIC33EP128MC202 Others/PIC24EP 0x00001E41 DSPIC33EP128MC204 Others/PIC24EP 0x00001E40 DSPIC33EP128MC206 Others/PIC24EP 0x00001E43 DSPIC33EP128MC502 Others/PIC24EP 0x00001E45 DSPIC33EP128MC504 Others/PIC24EP 0x00001E44 DSPIC33EP128MC506 Others/PIC24EP 0x00001E47 DSPIC33EP256GP502 Others/PIC24EP 0x00001F6D DSPIC33EP256GP504 Others/PIC24EP 0x00001F6C DSPIC33EP256GP506 Others/PIC24EP 0x00001F6F DSPIC33EP256MC202 Others/PIC24EP 0x00001F61 DSPIC33EP256MC204 Others/PIC24EP 0x00001F60 DSPIC33EP256MC206 Others/PIC24EP 0x00001F63 DSPIC33EP256MC502 Others/PIC24EP 0x00001F65 DSPIC33EP256MC504 Others/PIC24EP 0x00001F64 DSPIC33EP256MC506 Others/PIC24EP 0x00001F67 DSPIC33EP512GP502 Others/PIC24EP 0x0000178D DSPIC33EP512GP504 Others/PIC24EP 0x0000178C DSPIC33EP512GP506 Others/PIC24EP 0x0000178F DSPIC33EP512MC202 Others/PIC24EP 0x00001781 DSPIC33EP512MC204 Others/PIC24EP 0x00001780 DSPIC33EP512MC206 Others/PIC24EP 0x00001783 DSPIC33EP512MC502 Others/PIC24EP 0x00001785 DSPIC33EP512MC504 Others/PIC24EP 0x00001784 DSPIC33EP512MC506 Others/PIC24EP 0x00001787 PIC24EP32GP202 Others/PIC24EP 0x00001C19 PIC24EP32GP203 Others/PIC24EP 0x00001C1A PIC24EP32GP204 Others/PIC24EP 0x00001C18 PIC24EP32MC202 Others/PIC24EP 0x00001C11 PIC24EP32MC203 Others/PIC24EP 0x00001C12 PIC24EP32MC204 Others/PIC24EP 0x00001C10 PIC24EP64GP202 Others/PIC24EP 0x00001D39 PIC24EP64GP203 Others/PIC24EP 0x00001D3A PIC24EP64GP204 Others/PIC24EP 0x00001D38 PIC24EP64GP206 Others/PIC24EP 0x00001D3B PIC24EP64MC202 Others/PIC24EP 0x00001D31 PIC24EP64MC203 Others/PIC24EP 0x00001D32 PIC24EP64MC204 Others/PIC24EP 0x00001D30 PIC24EP64MC206 Others/PIC24EP 0x00001D33 PIC24EP128GP202 Others/PIC24EP 0x00001E59 PIC24EP128GP204 Others/PIC24EP 0x00001E58 PIC24EP128GP206 Others/PIC24EP 0x00001E5B PIC24EP128MC202 Others/PIC24EP 0x00001E51 PIC24EP128MC204 Others/PIC24EP 0x00001E50 PIC24EP128MC206 Others/PIC24EP 0x00001E53 PIC24EP256GP202 Others/PIC24EP 0x00001F79 PIC24EP256GP204 Others/PIC24EP 0x00001F78 PIC24EP256GP206 Others/PIC24EP 0x00001F7B PIC24EP256MC202 Others/PIC24EP 0x00001F71 PIC24EP256MC204 Others/PIC24EP 0x00001F70 PIC24EP256MC206 Others/PIC24EP 0x00001F73 PIC24EP512GP202 Others/PIC24EP 0x00001799 PIC24EP512GP204 Others/PIC24EP 0x00001798 PIC24EP512GP206 Others/PIC24EP 0x0000179B PIC24EP512MC202 Others/PIC24EP 0x00001791 PIC24EP512MC204 Others/PIC24EP 0x00001790 PIC24EP512MC206 Others/PIC24EP 0x00001793 DSPIC33FJ06GS101 Others/dsPIC33 0x00000C00 DSPIC33FJ06GS102 Others/dsPIC33 0x00000C01 DSPIC33FJ06GS202 Others/dsPIC33 0x00000C02 DSPIC33FJ12GP201 Others/dsPIC33 0x00000802 DSPIC33FJ12GP202 Others/dsPIC33 0x00000803 DSPIC33FJ12MC201 Others/dsPIC33 0x00000800 DSPIC33FJ12MC202 Others/dsPIC33 0x00000801 DSPIC33FJ16GP304 Others/dsPIC33 0x00000F07 DSPIC33FJ16GS402 Others/dsPIC33 0x00000C04 DSPIC33FJ16GS404 Others/dsPIC33 0x00000C06 DSPIC33FJ16GS502 Others/dsPIC33 0x00000C03 DSPIC33FJ16GS504 Others/dsPIC33 0x00000C05 DSPIC33FJ16MC304 Others/dsPIC33 0x00000F03 DSPIC33FJ32GP202 Others/dsPIC33 0x00000F0D DSPIC33FJ32GP204 Others/dsPIC33 0x00000F0F DSPIC33FJ32GP302 Others/dsPIC33 0x00000605 DSPIC33FJ32GP304 Others/dsPIC33 0x00000607 DSPIC33FJ32MC202 Others/dsPIC33 0x00000F09 DSPIC33FJ32MC204 Others/dsPIC33 0x00000F0B DSPIC33FJ32MC302 Others/dsPIC33 0x00000601 DSPIC33FJ32MC304 Others/dsPIC33 0x00000603 DSPIC33FJ64GP202 Others/dsPIC33 0x00000615 DSPIC33FJ64GP204 Others/dsPIC33 0x00000617 DSPIC33FJ64GP206(A) Others/dsPIC33 0x000000C1 DSPIC33FJ64GP306(A) Others/dsPIC33 0x000000CD DSPIC33FJ64GP310(A) Others/dsPIC33 0x000000CF DSPIC33FJ64GP706(A) Others/dsPIC33 0x000000D5 DSPIC33FJ64GP708(A) Others/dsPIC33 0x000000D6 DSPIC33FJ64GP710(A) Others/dsPIC33 0x000000D7 DSPIC33FJ64GP802 Others/dsPIC33 0x0000061D DSPIC33FJ64GP804 Others/dsPIC33 0x0000061F DSPIC33FJ64GS608 Others/dsPIC33 0x00004005 DSPIC33FJ64MC202 Others/dsPIC33 0x00000611 DSPIC33FJ64MC204 Others/dsPIC33 0x00000613 DSPIC33FJ64MC506 Others/dsPIC33 0x00000089 DSPIC33FJ64MC508 Others/dsPIC33 0x0000008A DSPIC33FJ64MC510 Others/dsPIC33 0x0000008B DSPIC33FJ64MC706 Others/dsPIC33 0x00000091 DSPIC33FJ64MC710 Others/dsPIC33 0x00000097 DSPIC33FJ64MC802 Others/dsPIC33 0x00000619 DSPIC33FJ64MC804 Others/dsPIC33 0x0000061B DSPIC33FJ128GP202 Others/dsPIC33 0x00000625 DSPIC33FJ128GP204 Others/dsPIC33 0x00000627 DSPIC33FJ128GP206(A) Others/dsPIC33 0x000000D9 DSPIC33FJ128GP306(A) Others/dsPIC33 0x000000E5 DSPIC33FJ128GP310(A) Others/dsPIC33 0x000000E7 DSPIC33FJ128GP706(A) Others/dsPIC33 0x000000ED DSPIC33FJ128GP708(A) Others/dsPIC33 0x000000EE DSPIC33FJ128GP710(A) Others/dsPIC33 0x000000EF DSPIC33FJ128GP802 Others/dsPIC33 0x0000062D DSPIC33FJ128GP804 Others/dsPIC33 0x0000062F DSPIC33FJ128MC202 Others/dsPIC33 0x00000621 DSPIC33FJ128MC204 Others/dsPIC33 0x00000623 DSPIC33FJ128MC506 Others/dsPIC33 0x000000A1 DSPIC33FJ128MC510 Others/dsPIC33 0x000000A3 DSPIC33FJ128MC706 Others/dsPIC33 0x000000A9 DSPIC33FJ128MC708 Others/dsPIC33 0x000000AE DSPIC33FJ128MC710 Others/dsPIC33 0x000000AF DSPIC33FJ128MC802 Others/dsPIC33 0x00000629 DSPIC33FJ128MC804 Others/dsPIC33 0x0000062B DSPIC33FJ256GP506 Others/dsPIC33 0x000000F5 DSPIC33FJ256GP506A Others/dsPIC33 0x000007F5 DSPIC33FJ256GP510 Others/dsPIC33 0x000000F7 DSPIC33FJ256GP510A Others/dsPIC33 0x000007F7 DSPIC33FJ256GP710 Others/dsPIC33 0x000000FF DSPIC33FJ256GP710A Others/dsPIC33 0x000007FF DSPIC33FJ256MC510 Others/dsPIC33 0x000000B7 DSPIC33FJ256MC510A Others/dsPIC33 0x000007B7 DSPIC33FJ256MC710 Others/dsPIC33 0x000000BF DSPIC33FJ256MC710A Others/dsPIC33 0x000007BF DSPIC33CK32MP202 Others/dsPIC33CK 0x00007C00 DSPIC33CK32MP203 Others/dsPIC33CK 0x00007C01 DSPIC33CK32MP205 Others/dsPIC33CK 0x00007C02 DSPIC33CK32MP206 Others/dsPIC33CK 0x00007C03 DSPIC33CK32MP502 Others/dsPIC33CK 0x00007C40 DSPIC33CK32MP503 Others/dsPIC33CK 0x00007C41 DSPIC33CK32MP505 Others/dsPIC33CK 0x00007C42 DSPIC33CK32MP506 Others/dsPIC33CK 0x00007C43 DSPIC33CK64MP202 Others/dsPIC33CK 0x00007C10 DSPIC33CK64MP203 Others/dsPIC33CK 0x00007C11 DSPIC33CK64MP205 Others/dsPIC33CK 0x00007C12 DSPIC33CK64MP206 Others/dsPIC33CK 0x00007C13 DSPIC33CK64MP208 Others/dsPIC33CK 0x00007C14 DSPIC33CK64MP502 Others/dsPIC33CK 0x00007C50 DSPIC33CK64MP503 Others/dsPIC33CK 0x00007C51 DSPIC33CK64MP505 Others/dsPIC33CK 0x00007C52 DSPIC33CK64MP506 Others/dsPIC33CK 0x00007C53 DSPIC33CK64MP508 Others/dsPIC33CK 0x00007C54 DSPIC33CK128MC102 Others/dsPIC33CK 0x0000A200 DSPIC33CK128MC103 Others/dsPIC33CK 0x0000A201 DSPIC33CK128MC105 Others/dsPIC33CK 0x0000A202 DSPIC33CK128MC106 Others/dsPIC33CK 0x0000A203 DSPIC33CK128MC502 Others/dsPIC33CK 0x0000A240 DSPIC33CK128MC503 Others/dsPIC33CK 0x0000A241 DSPIC33CK128MC505 Others/dsPIC33CK 0x0000A242 DSPIC33CK128MC506 Others/dsPIC33CK 0x0000A243 DSPIC33CK128MP202 Others/dsPIC33CK 0x00007C20 DSPIC33CK128MP203 Others/dsPIC33CK 0x00007C21 DSPIC33CK128MP205 Others/dsPIC33CK 0x00007C22 DSPIC33CK128MP206 Others/dsPIC33CK 0x00007C23 DSPIC33CK128MP208 Others/dsPIC33CK 0x00007C24 DSPIC33CK128MP502 Others/dsPIC33CK 0x00007C60 DSPIC33CK128MP503 Others/dsPIC33CK 0x00007C61 DSPIC33CK128MP505 Others/dsPIC33CK 0x00007C62 DSPIC33CK128MP506 Others/dsPIC33CK 0x00007C63 DSPIC33CK128MP508 Others/dsPIC33CK 0x00007C64 DSPIC33CK256MC102 Others/dsPIC33CK 0x0000A210 DSPIC33CK256MC103 Others/dsPIC33CK 0x0000A211 DSPIC33CK256MC105 Others/dsPIC33CK 0x0000A212 DSPIC33CK256MC106 Others/dsPIC33CK 0x0000A213 DSPIC33CK256MC502 Others/dsPIC33CK 0x0000A250 DSPIC33CK256MC503 Others/dsPIC33CK 0x0000A251 DSPIC33CK256MC505 Others/dsPIC33CK 0x0000A252 DSPIC33CK256MC506 Others/dsPIC33CK 0x0000A253 DSPIC33CK256MP202 Others/dsPIC33CK 0x00007C30 DSPIC33CK256MP203 Others/dsPIC33CK 0x00007C31 DSPIC33CK256MP205 Others/dsPIC33CK 0x00007C32 DSPIC33CK256MP206 Others/dsPIC33CK 0x00007C33 DSPIC33CK256MP208 Others/dsPIC33CK 0x00007C34 DSPIC33CK256MP502 Others/dsPIC33CK 0x00007C70 DSPIC33CK256MP503 Others/dsPIC33CK 0x00007C71 DSPIC33CK256MP505 Others/dsPIC33CK 0x00007C72 DSPIC33CK256MP506 Others/dsPIC33CK 0x00007C73 DSPIC33CK256MP508 Others/dsPIC33CK 0x00007C74 DSPIC33EV32GM002 Others/dsPIC33EV 0x00005D01 DSPIC33EV32GM003 Others/dsPIC33EV 0x00005D02 DSPIC33EV32GM004 Others/dsPIC33EV 0x00005D00 DSPIC33EV32GM006 Others/dsPIC33EV 0x00005D03 DSPIC33EV32GM102 Others/dsPIC33EV 0x00005D09 DSPIC33EV32GM103 Others/dsPIC33EV 0x00005D0A DSPIC33EV32GM104 Others/dsPIC33EV 0x00005D08 DSPIC33EV32GM106 Others/dsPIC33EV 0x00005D0B DSPIC33EV64GM002 Others/dsPIC33EV 0x00005D11 DSPIC33EV64GM003 Others/dsPIC33EV 0x00005D12 DSPIC33EV64GM004 Others/dsPIC33EV 0x00005D10 DSPIC33EV64GM006 Others/dsPIC33EV 0x00005D13 DSPIC33EV64GM102 Others/dsPIC33EV 0x00005D19 DSPIC33EV64GM103 Others/dsPIC33EV 0x00005D1A DSPIC33EV64GM104 Others/dsPIC33EV 0x00005D18 DSPIC33EV64GM106 Others/dsPIC33EV 0x00005D1B DSPIC33EV128GM002 Others/dsPIC33EV 0x00005D21 DSPIC33EV128GM003 Others/dsPIC33EV 0x00005D22 DSPIC33EV128GM004 Others/dsPIC33EV 0x00005D20 DSPIC33EV128GM006 Others/dsPIC33EV 0x00005D23 DSPIC33EV128GM102 Others/dsPIC33EV 0x00005D29 DSPIC33EV128GM103 Others/dsPIC33EV 0x00005D2A DSPIC33EV128GM104 Others/dsPIC33EV 0x00005D28 DSPIC33EV128GM106 Others/dsPIC33EV 0x00005D2B DSPIC33EV256GM002 Others/dsPIC33EV 0x00005D31 DSPIC33EV256GM003 Others/dsPIC33EV 0x00005D32 DSPIC33EV256GM004 Others/dsPIC33EV 0x00005D30 DSPIC33EV256GM006 Others/dsPIC33EV 0x00005D33 DSPIC33EV256GM102 Others/dsPIC33EV 0x00005D39 DSPIC33EV256GM103 Others/dsPIC33EV 0x00005D3A DSPIC33EV256GM104 Others/dsPIC33EV 0x00005D38 DSPIC33EV256GM106 Others/dsPIC33EV 0x00005D3B DSPIC30F2010 Others/dsPIC30 0x00000040 DSPIC30F2011 Others/dsPIC30 0x00000240 DSPIC30F2012 Others/dsPIC30 0x00000241 DSPIC30F3010 Others/dsPIC30 0x000001C0 DSPIC30F3011 Others/dsPIC30 0x000001C1 DSPIC30F3012 Others/dsPIC30 0x000000C1 DSPIC30F3013 Others/dsPIC30 0x000000C3 DSPIC30F3014 Others/dsPIC30 0x00000160 DSPIC30F4011 Others/dsPIC30 0x00000101 DSPIC30F4012 Others/dsPIC30 0x00000100 DSPIC30F4013 Others/dsPIC30 0x00000141 DSPIC30F5011 Others/dsPIC30 0x00000080 DSPIC30F5013 Others/dsPIC30 0x00000081 DSPIC30F5015 Others/dsPIC30 0x00000200 DSPIC30F5016 Others/dsPIC30 0x00000201 DSPIC30F6010 Others/dsPIC30 0x00000188 DSPIC30F6010A Others/dsPIC30 0x00000281 DSPIC30F6011 Others/dsPIC30 0x00000192 DSPIC30F6011A Others/dsPIC30 0x000002C0 DSPIC30F6012 Others/dsPIC30 0x00000193 DSPIC30F6012A Others/dsPIC30 0x000002C2 DSPIC30F6013 Others/dsPIC30 0x00000197 DSPIC30F6013A Others/dsPIC30 0x000002C1 DSPIC30F6014 Others/dsPIC30 0x00000198 DSPIC30F6014A Others/dsPIC30 0x000002C3 DSPIC30F6015 Others/dsPIC30 0x00000280 DSPIC30F1010 Others/dsPIC30 SMPS 0x00000404 DSPIC30F2020 Others/dsPIC30 SMPS 0x00000400 DSPIC30F2023 Others/dsPIC30 SMPS 0x00000403 HCS200 Others/KEELOQ?? HCS 0xFFFFFFFF HCS201 Others/KEELOQ?? HCS 0xFFFFFFFF HCS300 Others/KEELOQ?? HCS 0xFFFFFFFF HCS301 Others/KEELOQ?? HCS 0xFFFFFFFF HCS320 Others/KEELOQ?? HCS 0xFFFFFFFF HCS360 Others/KEELOQ?? HCS 0xFFFFFF36 HCS361 Others/KEELOQ?? HCS 0xFFFFFF36 HCS362 Others/KEELOQ?? HCS 0xFFFFFFFF MCP25020 Others/MCP250xx 0xFFFFFFFF MCP25025 Others/MCP250xx 0xFFFFFFFF MCP25050 Others/MCP250xx 0xFFFFFFFF MCP25055 Others/MCP250xx 0xFFFFFFFF PIC32MX110F016B PIC32 0x04A07053 PIC32MX110F016C PIC32 0x04A09053 PIC32MX110F016D PIC32 0x04A0B053 PIC32MX120F032B PIC32 0x04A06053 PIC32MX120F032C PIC32 0x04A08053 PIC32MX120F032D PIC32 0x04A0A053 PIC32MX120F064H PIC32 0x06A50053 PIC32MX130F064B PIC32 0x04D07053 PIC32MX130F064C PIC32 0x04D09053 PIC32MX130F064D PIC32 0x04D0B053 PIC32MX130F128H PIC32 0x06A00053 PIC32MX130F128L PIC32 0x06A01053 PIC32MX130F256B PIC32 0x06703053 PIC32MX130F256D PIC32 0x06705053 PIC32MX150F128B PIC32 0x04D06053 PIC32MX150F128C PIC32 0x04D08053 PIC32MX150F128D PIC32 0x04D0A053 PIC32MX150F256H PIC32 0x06A10053 PIC32MX150F256L PIC32 0x06A11053 PIC32MX154F128B PIC32 0x07800053 PIC32MX154F128D PIC32 0x07804053 PIC32MX170F256B PIC32 0x06610053 PIC32MX170F256D PIC32 0x0661A053 PIC32MX170F512H PIC32 0x06A30053 PIC32MX170F512L PIC32 0x06A31053 PIC32MX174F256B PIC32 0x07801053 PIC32MX174F256D PIC32 0x07805053 PIC32MX210F016B PIC32 0x04A01053 PIC32MX210F016C PIC32 0x04A03053 PIC32MX210F016D PIC32 0x04A05053 PIC32MX220F032B PIC32 0x04A00053 PIC32MX220F032C PIC32 0x04A02053 PIC32MX220F032D PIC32 0x04A04053 PIC32MX230F064B PIC32 0x04D01053 PIC32MX230F064C PIC32 0x04D03053 PIC32MX230F064D PIC32 0x04D05053 PIC32MX230F128H PIC32 0x06A02053 PIC32MX230F128L PIC32 0x06A03053 PIC32MX230F256B PIC32 0x06700053 PIC32MX230F256D PIC32 0x06702053 PIC32MX250F128B PIC32 0x04D00053 PIC32MX250F128C PIC32 0x04D02053 PIC32MX250F128D PIC32 0x04D04053 PIC32MX250F256H PIC32 0x06A12053 PIC32MX250F256L PIC32 0x06A13053 PIC32MX254F128B PIC32 0x07802053 PIC32MX254F128D PIC32 0x07806053 PIC32MX270F256B PIC32 0x06600053 PIC32MX270F256D PIC32 0x0660A053 PIC32MX270F256DB PIC32 0x0660C053 PIC32MX270F512H PIC32 0x06A32053 PIC32MX270F512L PIC32 0x06A33053 PIC32MX274F256B PIC32 0x07803053 PIC32MX274F256D PIC32 0x07807053 PIC32MX320F032H PIC32 0x00902053 PIC32MX320F064H PIC32 0x00906053 PIC32MX320F128H PIC32 0x0090A053 PIC32MX320F128L PIC32 0x0092A053 PIC32MX330F064H PIC32 0x05600053 PIC32MX330F064L PIC32 0x05601053 PIC32MX340F128H PIC32 0x0090D053 PIC32MX340F128L PIC32 0x0092D053 PIC32MX340F256H PIC32 0x00912053 PIC32MX340F512H PIC32 0x00916053 PIC32MX350F128H PIC32 0x0570C053 PIC32MX350F128L PIC32 0x0570D053 PIC32MX350F256H PIC32 0x05704053 PIC32MX350F256L PIC32 0x05705053 PIC32MX360F256L PIC32 0x00934053 PIC32MX360F512L PIC32 0x00938053 PIC32MX370F512H PIC32 0x05808053 PIC32MX370F512L PIC32 0x05809053 PIC32MX420F032H PIC32 0x00942053 PIC32MX430F064H PIC32 0x05602053 PIC32MX430F064L PIC32 0x05603053 PIC32MX440F128H PIC32 0x0094D053 PIC32MX440F128L PIC32 0x0096D053 PIC32MX440F256H PIC32 0x00952053 PIC32MX440F512H PIC32 0x00956053 PIC32MX450F128H PIC32 0x0570E053 PIC32MX450F128L PIC32 0x0570F053 PIC32MX450F256H PIC32 0x05706053 PIC32MX450F256L PIC32 0x05707053 PIC32MX450F256LB PIC32 0x05710053 PIC32MX460F256L PIC32 0x00974053 PIC32MX460F512L PIC32 0x00978053 PIC32MX470F512H PIC32 0x0580A053 PIC32MX470F512L PIC32 0x0580B053 PIC32MX470F512LB PIC32 0x05811053 PIC32MX530F128H PIC32 0x06A04053 PIC32MX530F128L PIC32 0x06A05053 PIC32MX534F064H PIC32 0x04400053 PIC32MX534F064L PIC32 0x0440C053 PIC32MX550F256H PIC32 0x06A14053 PIC32MX550F256L PIC32 0x06A15053 PIC32MX564F064H PIC32 0x04401053 PIC32MX564F064L PIC32 0x0440D053 PIC32MX564F128H PIC32 0x04403053 PIC32MX564F128L PIC32 0x0440F053 PIC32MX570F512H PIC32 0x06A34053 PIC32MX570F512L PIC32 0x06A35053 PIC32MX575F256H PIC32 0x04317053 PIC32MX575F256L PIC32 0x04333053 PIC32MX575F512H PIC32 0x04309053 PIC32MX575F512L PIC32 0x0430F053 PIC32MX664F064H PIC32 0x04405053 PIC32MX664F064L PIC32 0x04411053 PIC32MX664F128H PIC32 0x04407053 PIC32MX664F128L PIC32 0x04413053 PIC32MX675F256H PIC32 0x0430B053 PIC32MX675F256L PIC32 0x04305053 PIC32MX675F512H PIC32 0x0430C053 PIC32MX675F512L PIC32 0x04311053 PIC32MX695F512H PIC32 0x04325053 PIC32MX695F512L PIC32 0x04341053 PIC32MX764F128H PIC32 0x0440B053 PIC32MX764F128L PIC32 0x04417053 PIC32MX775F256H PIC32 0x04303053 PIC32MX775F256L PIC32 0x04312053 PIC32MX775F512H PIC32 0x0430D053 PIC32MX775F512L PIC32 0x04307053 PIC32MX795F512H PIC32 0x0430E053 PIC32MX795F512L PIC32 0x04307053 11LC010 EEPROMS/11LC 0xFFFFFFFF 11LC020 EEPROMS/11LC 0xFFFFFFFF 11LC040 EEPROMS/11LC 0xFFFFFFFF 11LC080 EEPROMS/11LC 0xFFFFFFFF 11LC160 EEPROMS/11LC 0xFFFFFFFF 11LC161 EEPROMS/11LC 0xFFFFFFFF 24LC01B EEPROMS/24LC 0xFFFFFFFF 24LC02B EEPROMS/24LC 0xFFFFFFFF 24LC04B EEPROMS/24LC 0xFFFFFFFF 24LC08B EEPROMS/24LC 0xFFFFFFFF 24LC16B EEPROMS/24LC 0xFFFFFFFF 24LC32A EEPROMS/24LC 0xFFFFFFFF 24XX00 EEPROMS/24LC 0xFFFFFFFF 24XX01 EEPROMS/24LC 0xFFFFFFFF 24XX02 EEPROMS/24LC 0xFFFFFFFF 24XX024 EEPROMS/24LC 0xFFFFFFFF 24XX04 EEPROMS/24LC 0xFFFFFFFF 24XX08 EEPROMS/24LC 0xFFFFFFFF 24XX16 EEPROMS/24LC 0xFFFFFFFF 24XX32 EEPROMS/24LC 0xFFFFFFFF 24XX64 EEPROMS/24LC 0xFFFFFFFF 24XX128 EEPROMS/24LC 0xFFFFFFFF 24XX256 EEPROMS/24LC 0xFFFFFFFF 24XX512 EEPROMS/24LC 0xFFFFFFFF 24XX1025 EEPROMS/24LC 0xFFFFFFFF 24XX1026 EEPROMS/24LC 0xFFFFFFFF AT24CM01 EEPROMS/24LC 0xFFFFFFFF AT24CM02 EEPROMS/24LC 0xFFFFFFFF +FL127S EEPROMS/25LC 0xFFFFFFFF 25LC010A EEPROMS/25LC 0xFFFFFFFF 25LC020A EEPROMS/25LC 0xFFFFFFFF 25LC040A EEPROMS/25LC 0xFFFFFFFF 25LC080A EEPROMS/25LC 0xFFFFFFFF 25LC080B EEPROMS/25LC 0xFFFFFFFF 25LC128 EEPROMS/25LC 0xFFFFFFFF 25LC160A EEPROMS/25LC 0xFFFFFFFF 25LC160B EEPROMS/25LC 0xFFFFFFFF 25LC256 EEPROMS/25LC 0xFFFFFFFF 25LC320A EEPROMS/25LC 0xFFFFFFFF 25LC512 EEPROMS/25LC 0xFFFFFFFF 25LC640A EEPROMS/25LC 0xFFFFFFFF 25LC1024 EEPROMS/25LC 0xFFFFFFFF AT25M01 EEPROMS/25LC 0xFFFFFFFF AT25M02 EEPROMS/25LC 0xFFFFFFFF M25P10 EEPROMS/25LC 0xFFFFFFFF M25P16 EEPROMS/25LC 0xFFFFFFFF M25P20 EEPROMS/25LC 0xFFFFFFFF M25P32 EEPROMS/25LC 0xFFFFFFFF M25P40 EEPROMS/25LC 0xFFFFFFFF M25P64 EEPROMS/25LC 0xFFFFFFFF M25P80 EEPROMS/25LC 0xFFFFFFFF M25P128 EEPROMS/25LC 0xFFFFFFFF SST25VF512 EEPROMS/25LC 0xFFFFFFFF 93LC46A (C X8) EEPROMS/93LCxA,C 0xFFFFFFFF 93LC56A (C X8) EEPROMS/93LCxA,C 0xFFFFFFFF 93LC66A (C X8) EEPROMS/93LCxA,C 0xFFFFFFFF 93LC76A (C X8) EEPROMS/93LCxA,C 0xFFFFFFFF 93LC86A (C X8) EEPROMS/93LCxA,C 0xFFFFFFFF 93LC46B (C X16) EEPROMS/93LCxB,C 0xFFFFFFFF 93LC56B (C X16) EEPROMS/93LCxB,C 0xFFFFFFFF 93LC66B (C X16) EEPROMS/93LCxB,C 0xFFFFFFFF 93LC76B (C X16) EEPROMS/93LCxB,C 0xFFFFFFFF 93LC86B (C X16) EEPROMS/93LCxB,C 0xFFFFFFFF GD25Q64C EEPROMS/SPIFLASH 0x00C84017 M25P32_ST EEPROMS/SPIFLASH 0x00202016 MX25L4005 EEPROMS/SPIFLASH 0x00C22013 MX25L8005 EEPROMS/SPIFLASH 0x00C22014 MX25L12845E EEPROMS/SPIFLASH 0x00C22018 S25FL064P EEPROMS/SPIFLASH 0x00010216 SST26VF032B EEPROMS/SPIFLASH 0x00BF2642 W25Q16CV EEPROMS/SPIFLASH 0x00EF4015 W25Q32FV EEPROMS/SPIFLASH 0x00EF4016 W25Q64FV EEPROMS/SPIFLASH 0x00EF4017 W25Q128JV EEPROMS/SPIFLASH 0x00EF4018 W25X16 EEPROMS/SPIFLASH 0x00EF3015 W25X32 EEPROMS/SPIFLASH 0x00EF3016 W25X40 EEPROMS/SPIFLASH 0x00EF3013
