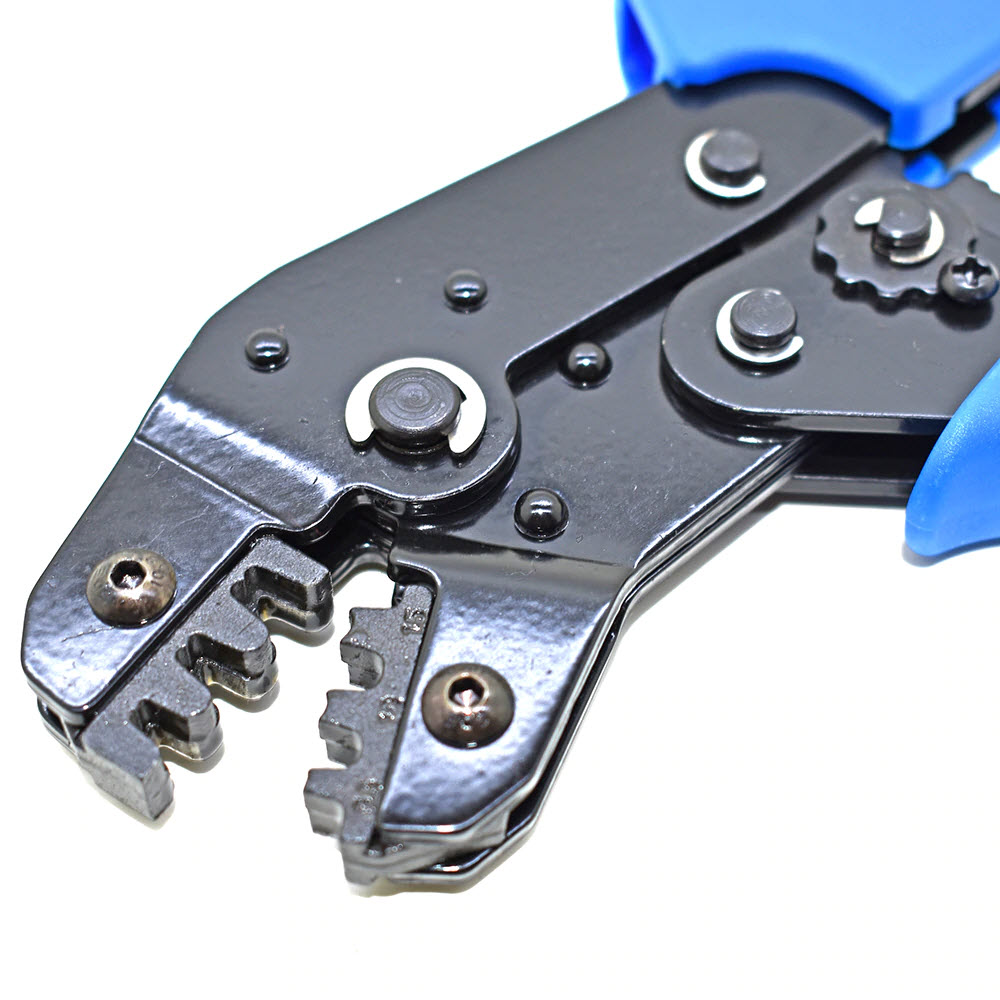

SN-48B crimping tool crimping plier 0.5-1.5mm2 multi tool tools

Product description:

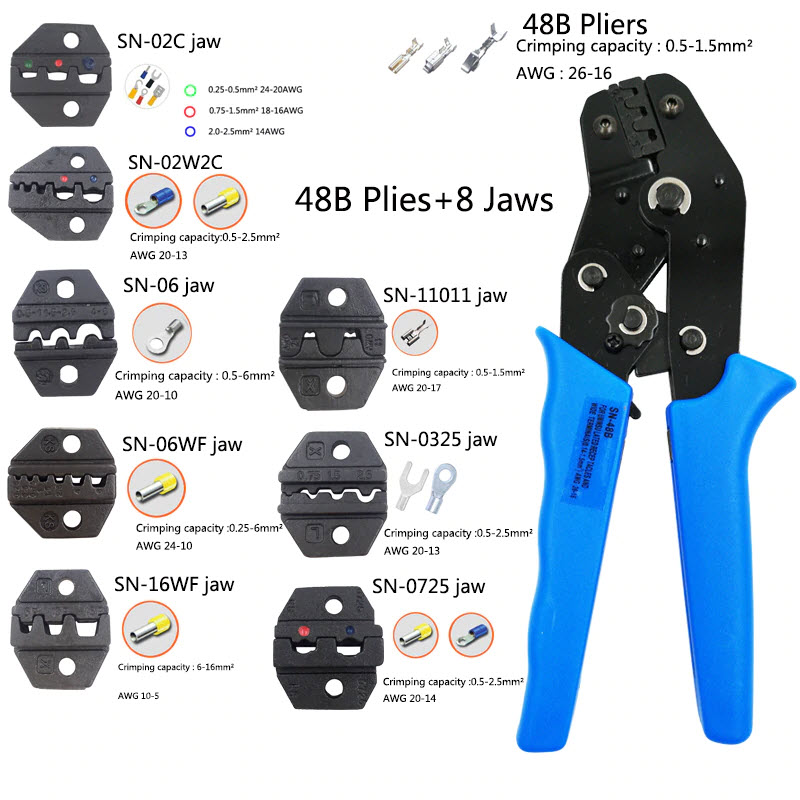

SN-2549:0.08-1mm2/28-17AWG/Length:190mm /weight:370g.

application:=SN28B+SN02BM,PH 2.0, 2.5 XH, JST, servo connector plug, D-SUB connector, XH2.54, double row PHD2.0, SM2.5 male female pin, SCN2.5, SAN2.5, 5264251 0 cold-press terminal, CH3.96, VH3.96 terminals, 5556,5558 male female pin, computer with big 4p, EL4.5 oda palace, 2.8 to 3.2 mm plug spring and male insert U O open ground lug,Popular cruise gateway terminal, ECU small policy, Mercedes atmosphere lamp terminals, terminal, 963715-1, SM multifunctional line pressing pliers terminals,Computer power transformation 4p 6p 8p p24 male head terminal,5557,4.2, 5569-2 * 4p plastic shell, curved needle, 5558 female connector terminal computers.

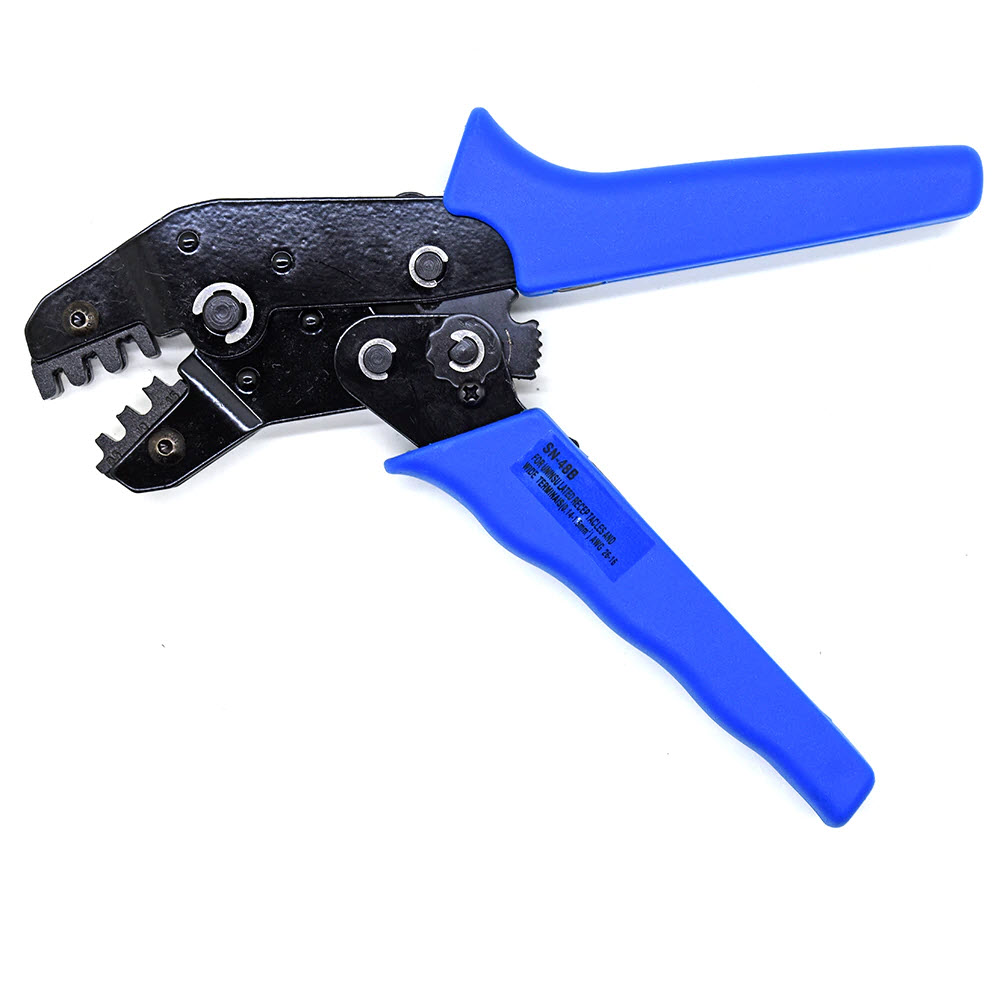

SN-48B:0.5-1.5mm2/20-15AWG/Length:190mm /weight:370g.

application:Can crimping dupont 2.8/4.8 Plug in the spring and Cold pressed terminals,Insert spring 3.96/4.8/5.2 cold-press terminal reed ground lug,Most of the terminal can be used within 4.8 mm.Terminal terminal clamp/wire terminal clamp/pressure/wiring terminal/motorcycle wiring harness terminal clamp.

SN-06WF:0.25-6mm2/23-10AWG/Length:190mm /weight:370g.

application:Can crimping 0.25-0.5mm2 /0.5-1mm2/1.5mm2/4.0mm2/6mm2 most of the area is less than 6.3mm2 tube terminals.

SN-02C:0.25-6mm2/23-10AWG/Length:190mm /weight:370g.

application:Can crimping 0.25-0.5mm2/0.75-1.5mm2/2.0-2.5mm2 most of the area is less than 2.5mm2 insuated terminals and connectors.

SN-11011:1-2.5mm2/17-13AWG/Length:190mm /weight:370g.

application:Can crimping dupont 2.8/4.8/5.2/6.3 Plug in the spring and Cold pressed terminals,Insert spring 3.96/4.8/6.3 cold-press terminal reed ground lug,Most of the terminal can be used within 6.3 mm.

SN-06:0.5-6mm2/20-10AWG/Length:190mm/weight:370g.

application:Can crimping 0.5-1.5mm2/1.5-4mm2/4-6mm2 most of the area is less than 6mm2 non insuated terminals.
