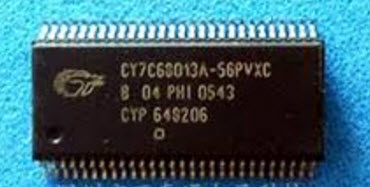

CY768013A-56PVXC (SSOP56) 8-bit Microcontrollers - MCU EZ USB FX2LP LO PWR LO COM

CY768013A-56PVXC (SSOP56) 8-bit Microcontrollers - MCU EZ USB FX2LP LO PWR LO COM

Datasheet CY768013A-56PVXC

Ddat

rocontroller High Speed USB Peripheral Controller
Features
■ USB 2.0 USB IF Hi-Speed certified (TID # 40460272)
■ Single-chip integrated USB 2.0 transceiver, smart SIE, and
enhanced 8051 microprocessor
■ Fit-, form-, and function-compatible with the FX2
&#x2750 Pin-compatible0
&#x2750 Object-code-compatible
&#x2750 Functionally compatible (FX2LP is a superset)
■ Ultra-low power: ICC no more than 85 mA in any mode
&#x2750 Ideal for bus- and battery-powered applications
■ Software: 8051 code runs from:
&#x2750 Internal RAM, which is downloaded through USB
&#x2750 Internal RAM, which is loaded from EEPROM
&#x2750 External memory device (128-pin package)
■ 16 KB of on-chip code/data RAM
■ Four programmable BULK, INTERRUPT, and
ISOCHRONOUS endpoints
&#x2750 Buffering options: Double, triple, and quad
■ Additional programmable (BULK/INTERRUPT) 64-byte
endpoint
■ 8-bit or 16-bit external data interface
■ Smart media standard ECC generation
■ GPIF™ (general programmable interface)
&#x2750 Enables direct connection to most parallel interfaces
&#x2750 Programmable waveform descriptors and configuration
registers to define waveforms
&#x2750 Supports multiple ready (RDY) inputs and control (CTL)
outputs
■ Integrated, industry-standard, enhanced 8051
&#x2750 48-MHz, 24-MHz, or 12-MHz CPU operation
&#x2750 Four clocks per instruction cycle
&#x2750 Two USARTs
&#x2750 Three counter/timers
&#x2750 Expanded interrupt system
&#x2750 Two data pointers

-size-adjust: auto; -webkit-text-strok■ 3.3-V operation with 5-V tolerant inputs
■ Vectored USB interrupts and GPIF/FIFO interrupts
■ Separate data buffers for the setup and data portions of a
CONTROL transfer
■ Integrated I2C controller; runs at 100 or 400 kHz
■ Four integrated FIFOs
&#x2750 Integrated glue logic and FIFOs lower system cost
&#x2750 Automatic conversion to and from 16-bit buses
&#x2750 Master or slave operation
&#x2750 Uses external clock or asynchronous strobes
&#x2750 Easy interface to ASIC and DSP ICs
■ Available in commercial and industrial temperature grades
(all packages except VFBGA)
Features (CY7C68013A/14A only)
■ CY7C68014A: Ideal for battery-powered applications
&#x2750 Suspend current: 100 A (typ)
■ CY7C68013A: Ideal for nonbattery-powered applications
&#x2750 Suspend current: 300 A (typ)
■ Available in five Pb-free packages with up to 40 GPIOs
&#x2750 128-pin TQFP (40 GPIOs), 100-pin TQFP (40 GPIOs), 56-pin
QFN (24 GPIOs), 56-pin SSOP (24 GPIOs), and 56-pin
VFBGA (24 GPIOs)
Features (CY7C68015A/16A only)
■ CY7C68016A: Ideal for battery-powered applications
&#x2750 Suspend current: 100 A (typ)
■ CY7C68015A: Ideal for nonbattery-powered applications
&#x2750 Suspend current: 300 A (typ)
■ Available in Pb-free 56-pin QFN package (26 GPIOs)
■ Two more GPIOs than CY7C68013A/14A enabling additional
features in the same footprint
