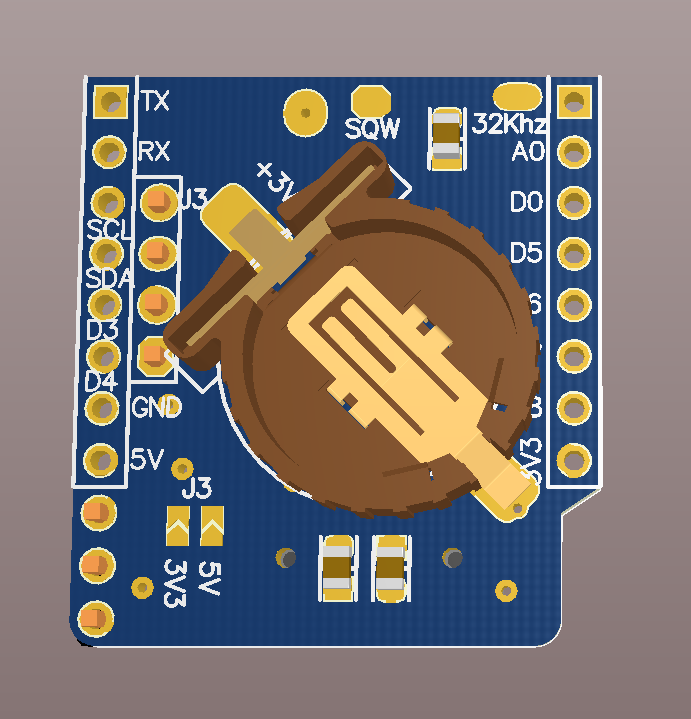

Wemos D1 Mini Data Logger Shield+RTC DS3231

With this Data Log Shield for WiFi D1 Mini board, can saving data to files on any FAT16 or FAT32 formatted MicroSD card. The included RTC (Real Time Clock) can be used to timestamp all your data with the current time, so that you know precisely what happened when!

SD card interface works with FAT16 or FAT32 formatted cards.

Real time clock (RTC) keeps the time going even when the power disconnected. The coin cell battery backup last date and time.

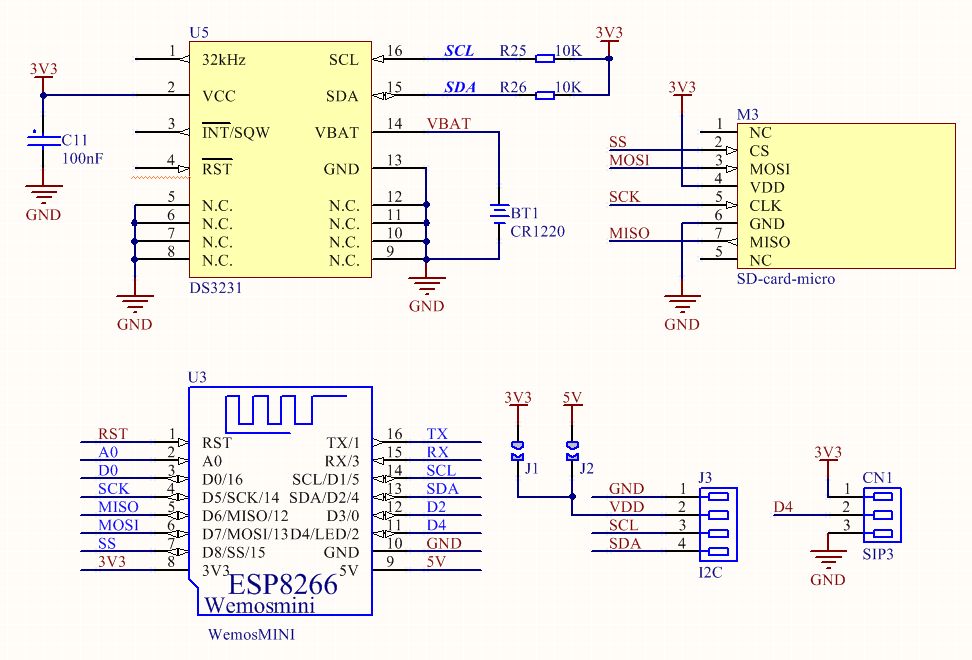

D1 - SCL

D2 - SDA

D5 - CLK (SCLK)

D6 - DO (MISO)

D7 - DI  (MOSI)

D8 - CS  (SS)



Male Pin Header 1x8pins = 2 pcs

Female Pin Header -BLACK 1x8pins = 2 pcs

Stackable Header - BLACK 1x8pins = 2 pcs



Note:

It is manual measurement, there may be 1-3mm error.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!



1 Pc x Data Logger Shield

6 Pcs x Pins
