42/57/86 stepper motor driver 32 segments TB6600 upgraded version 4.0A 42VDC

Introduction

TB6600 arduino Stepper Motor Driver is an easy-to-use professional stepper motor driver, which could control a two-phase stepping motor. It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal. TB6600 arduino stepper motor driver has a wide range power input, 9~42VDC power supply. And it is able to output 4A peak current, which is enough for the most of stepper motors.

The stepper driver supports speed and direction control. You can set its micro step and output current with 6 DIP switch. There are 7 kinds of micro steps (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 kinds of current control (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A) in all. And all signal terminals adopt high-speed optocoupler isolation, enhancing its anti-high-frequency interference ability.

As a professional device, it is able to drive 57, 42-type two-phase, four-phase, hybrid stepper motor.



Features

Support 8 kinds of current control

Support 7 kinds of micro steps adjustable

The interface adopts high-speed optocoupler isolation

Automatic semi-flow to reduce heat

Large area heat sink

Anti-high-frequency interference ability

Input anti-reverse protection

Overheat, over current and short circuit protection

Specification

Input Current: 0~5A

Output Current: 0.5~4.0A

Control Signal 3.3~24V

Power (MAX): 160W

Micro Step: 1, 2/A, 2/B, 4, 8, 16, 32

Temperature: -10～45℃

Humidity: No Condensation

Weight: 0.2 kg

Dimension: 96 * 71 * 37 mm

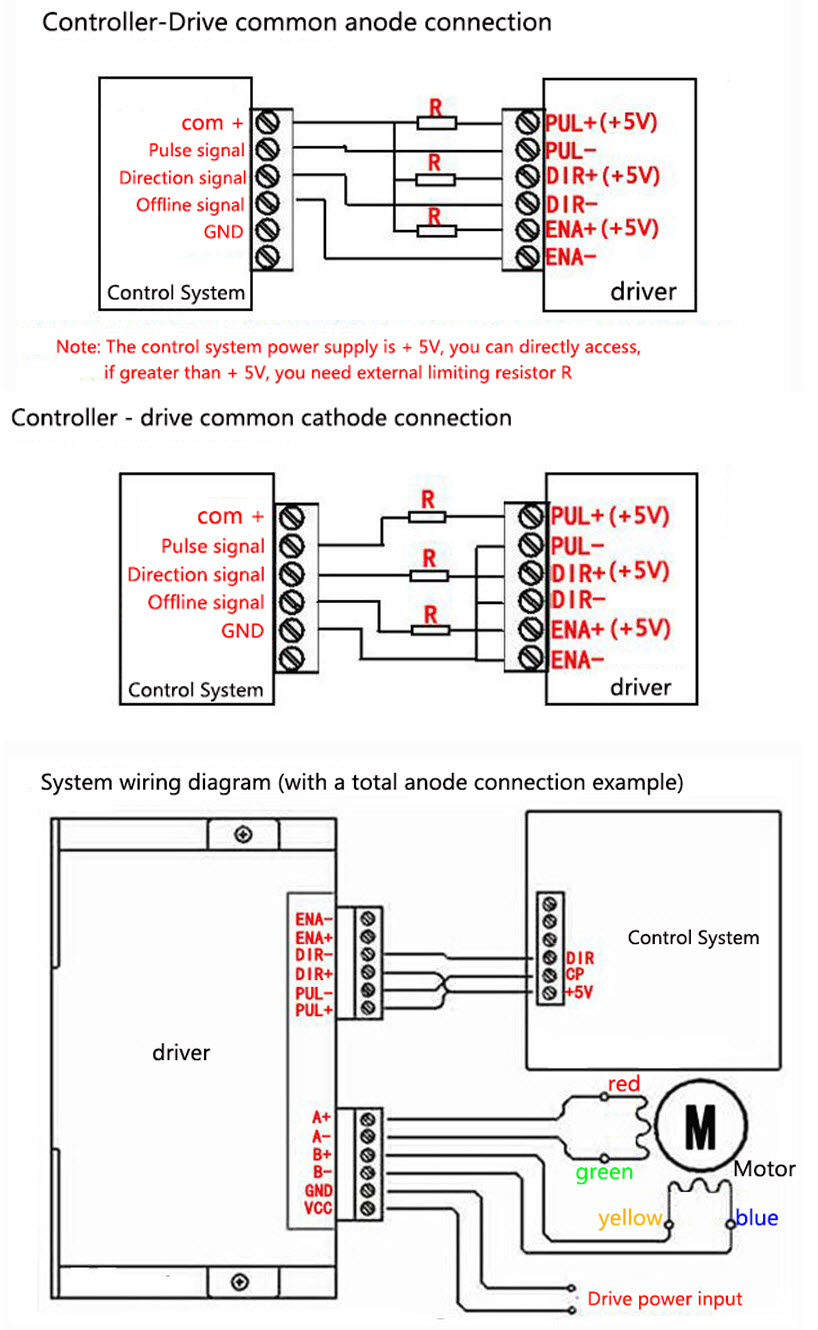

In this section, we'll show you how to use TB6600 arduino motor driver quickly. More detail could be found on the User Guide.

Electrical environment:

cooling method	Natural cooling or forced air cooling.
occasion	Can not be placed next to other heating equipment, to avoid dust, oil, corrosive gases, high humidity and strong earthquake sites, Combustible gas and conductive dust are prohibited.
humidity	40-90％RH
shock	10-55Hz/0.15mm
Storage temperature	-20-65℃
weight	0.15kg
