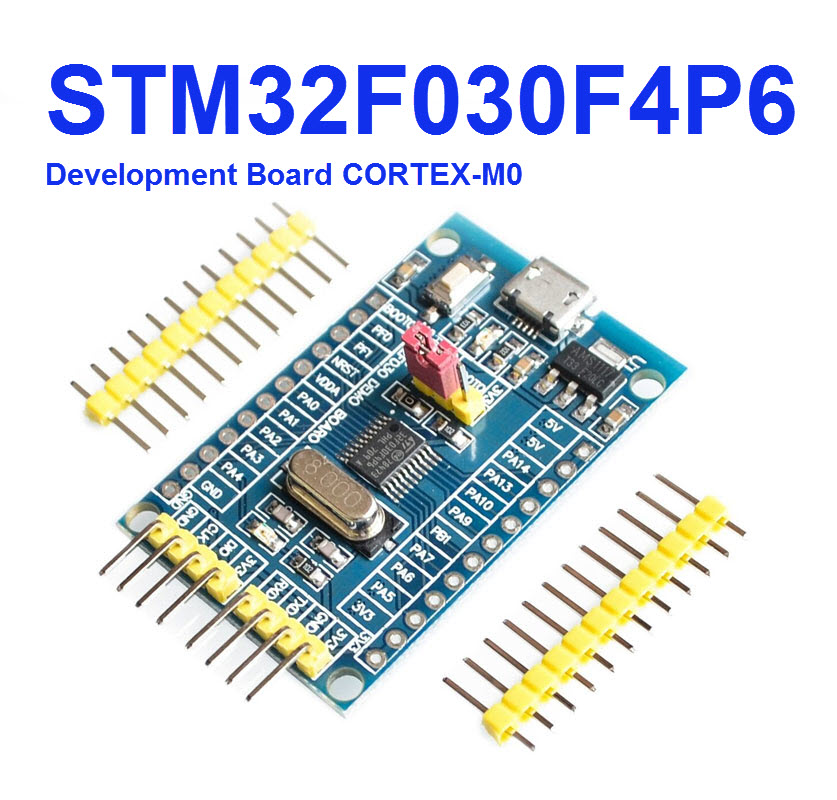

STM32F030F4P6 Mini System Development Board ARM CORTEX-M0 Core SWD/ISP MicroUSB

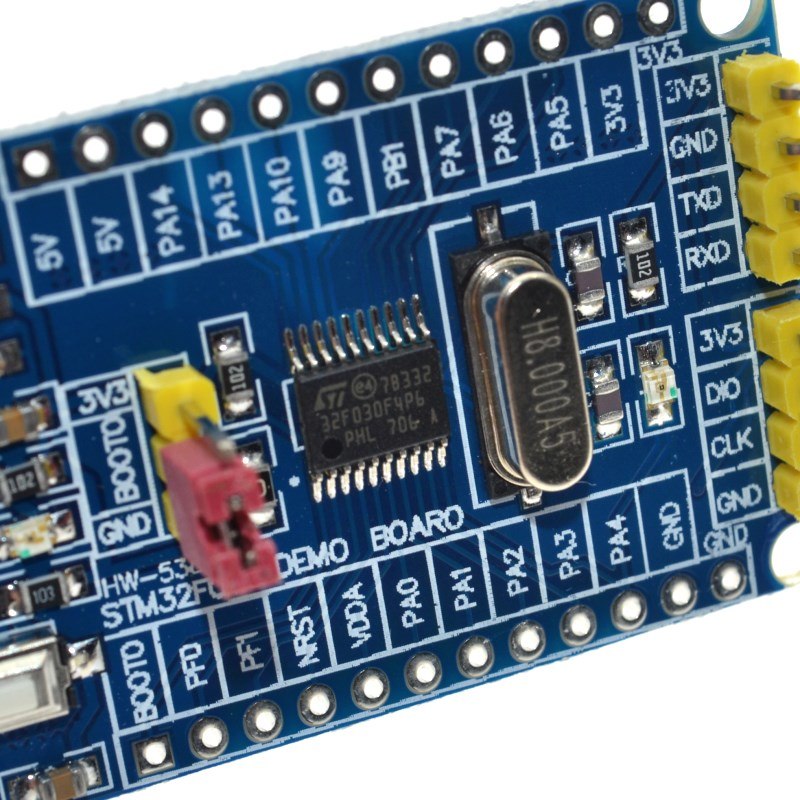

This board is a STM32F030F4P6 Minimum System Board(Cortex-M0). The target MCU is STM32F030F4P6 that is provided by ST. It is a ARM 32-bit Cortex?-M0 CPU, frequency up to 48 MHz, high-speed embedded memories . As a minimal ready-to-run system, this board integrates micor USB power supply interface, ISP/SWD programming/debugging interface, boot mode selection and so on to take you into the ARM Cortex world easily.

• This board is a STM32F030F4P6 Minimum System Board(Cortex-M0).
• The target MCU is STM32F030F4P6 that is provided by ST.
• ARM 32-bit Cortex-M0 CPU, frequency up to 48 MHz, high-speed embedded memories .
• Integrated micor USB power supply interface, ISP/SWD programming/debugging interface, boot mode selection and so on, to take you into the ARM Cortex world easily.
• More sets of 3.3 V to 5 V power supply, convenient for the power to external modules.
• SWD download interface (you can download via JLINK, ST link, debug KEIL version 5.0)

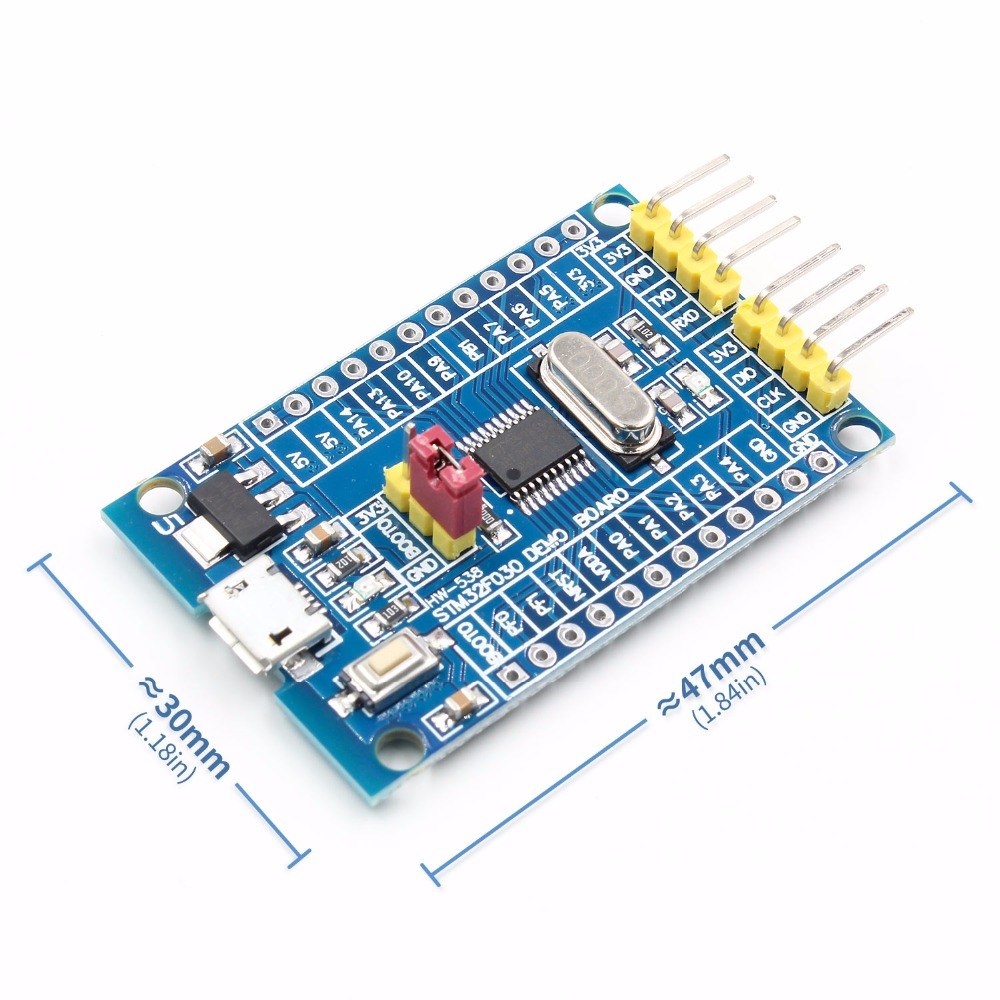

• Size: 4.5x3cm/1.77x1.18inch

  1  x  Mini System Development Board ARM STM32 F030F4P6 CORTEX-M0 Core 32bit 48 MHz

*
