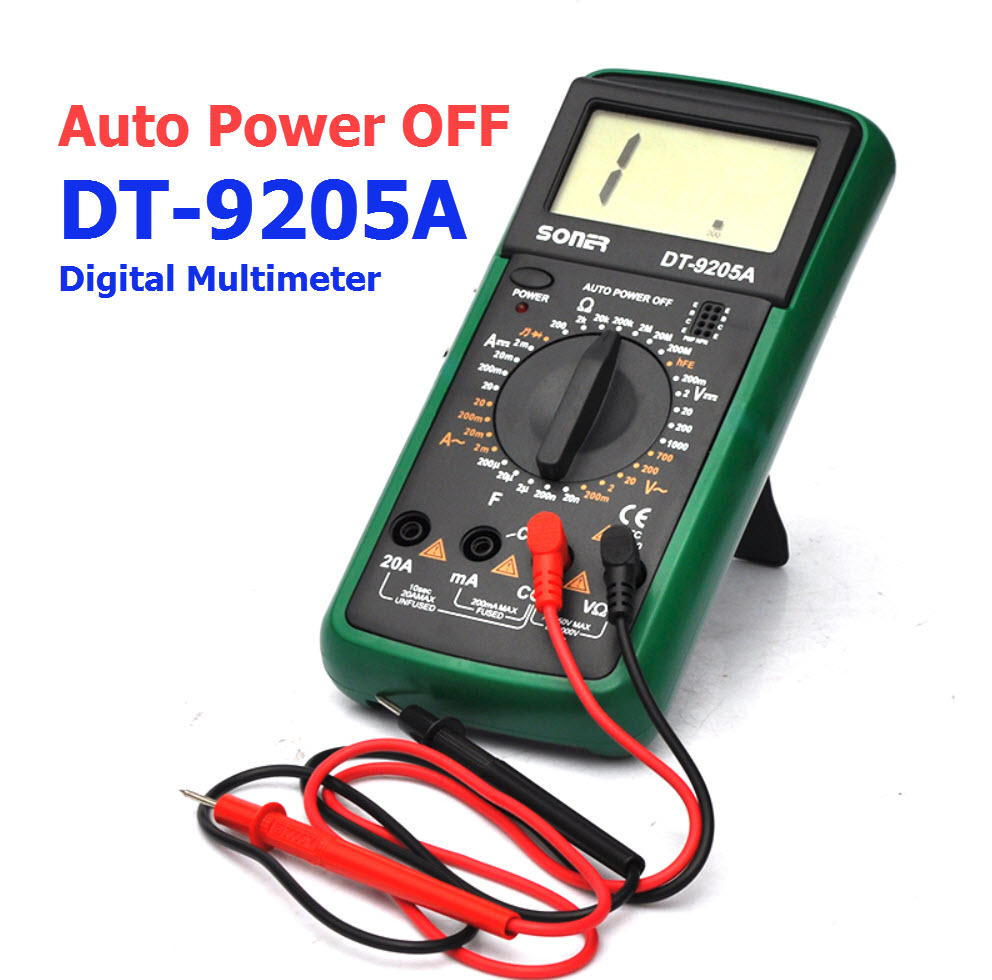

DT9205A Digital Multimeter LCD AC/DC Volt/Amp meter Resistance Capacitance Transistor Tester Diagnostic-tool

Features:
Large LCD display with high accuracy
Max. Display: 1999 counts
Measure DC /AC current, voltage, resistance, capacitance, hFE, diode, continuity buzzer
Stable performance, high reliability
Data hold function
Overload indication
Low battery indication

Specification:
DC Voltage: 200m/2/20/200/1000V 0.5%
AC Voltage: 200m/2/20/200/750V 0.8%
DC Current: 2m/20m/200m/20A 2.0%
AC Current: 20m/200m/20A 1.8%
Resistance: 200/2K/20K/200K/2M/20M/200Mohm 0.8%
Capacitance: 2n/20n/200n/2u/20u/200uF 4.0%
Diode Test: YES
Transistor Test: YES
Continuity Buzzer: YES

General Characteristics:
Power Supply: 1 * 9V battery

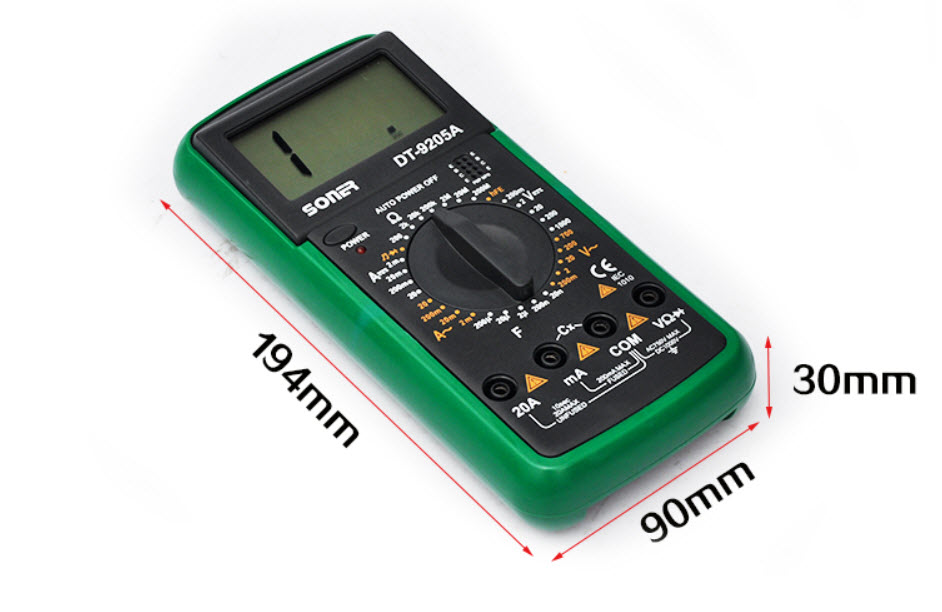

Dimension: 31.5 * 91 * 189mm
Product Weight: Approx. 280g
Package Size: 20 * 14.5 * 4cm / 8.3 * 5.6 * 1.6in
Package Weight: 304g / 10.7oz

Package List:

1 * DT9205A Handheld Digital Multimeter+battery 9V
1 * Test Lead




*

*
