รหัสสินค้า | M2064 |
หมวดหมู่ | ถ่าน 18650/14500/10440/26650 (China) |
ราคา | 300.00 บาท |
น้ำหนัก | 95 กรัม |
ลงสินค้า | 15 ก.ค. 2561 |
อัพเดทล่าสุด | 14 พ.ค. 2564 |
Material: | Li(NiCoMn)O2 |

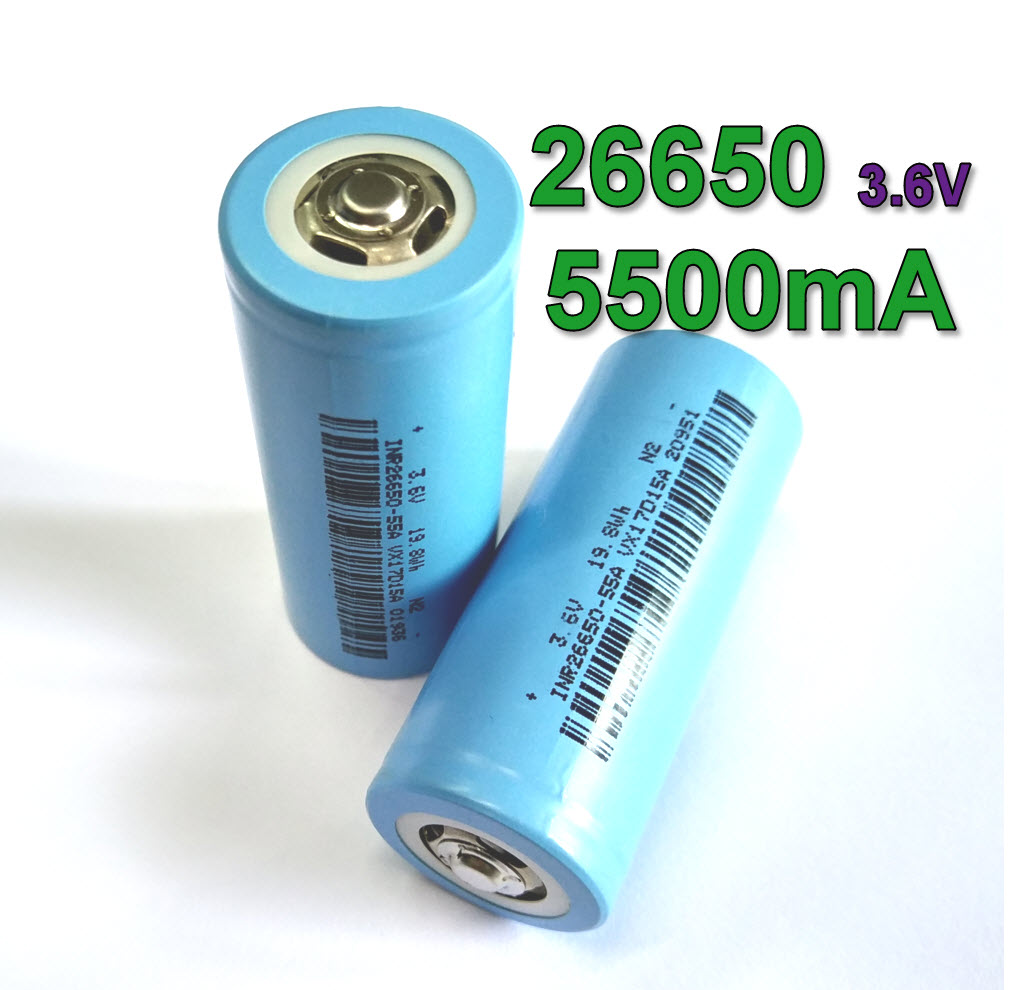

Type: | 26650 |
Nominal Voltage: | 3.7V (at 0.2C discharge current) |
Capacity: | 5500 mAh(Typical), |
5500mAh(Minimum) (From 4.2V to2.8V at 0.2C discharge current) | |
Charge Method: | CC/CV (Constant Current / Constant Voltage) |
Charge Voltage: | 4.2±0.049V |
Charge Current: | 1000mA×6hrs (Standard) |
2000mA×3hrs (Rapid) | |
Discharge Current: | 2750mA (Normal Discharge Current) |
16500A (16.5A) [Maximum Continuous Discharge] | |
Pulse Discharge | Curren:25A |
Discharge Cut-off Voltage | 2.75V |
Size: | 26x65mm |
Weight: | 95g |
Items | Parameters | Suggestions |
---|---|---|
Nominal voltage | 3.60V | |
Typical capacity | 5500mAh @ 0.2C | |
Standard continuous discharge current |
1C | |
Max. continuous discharge current |
3C | |
Discharge cut-off voltage | 2.75 ±0.05 V | |
Charge voltage | 4.20 ±0.05 V | Charge mode: CC/CV,Use a constant current, constant voltage (CC/CV) |
Charge current | Standard: 0.5C Max.: 1C | |
Inner resistance | ≤ 20 mΩ (AC Impedance, 1000 Hz) | |
Operation temperature range | Charge: 0~45℃ | 0℃~+45℃ |
Discharge: -20~60℃ | -20℃~+60℃ | |
When the environment temperature is higher than 45℃,please pay attention to ventilation and heat rejection. | ||
Storage temperature range | 1 year:-20~25℃ 85%RH Max 3months:-20~45℃ 90%RH Max 1 month:-20~60℃ 90%RH Max |
Recommended long-term storage temperature is 15~25℃ |
Life Cycle | >1000times | 1C ,80%DOD |
Weight | About 95g | |
Size(D*H) | Height : 65.2±0.3mm ; Diameter: 26.7±0.2mm | |
Application | ESS, PV street light, UPS , Power Station, Communication Base Station, etc. |
You must carefully read, and comply with the safety instructions and precautions in this Safety Instructions guide before charging, using your battery.
Failure to read, and follow Li-ion safety instructions, and warnings may result in fire, personal injury, and property damages if battery is charged and/or used improperly.
Lithium-ion battery cells may get extremely hot, explode or ignite, and cause serious injury if exposed to abuse conditions. Be sure to follow the safety warnings listed below.
What is short circuit?
Situation when battery positive (+) and negative (-) connect. The current will become extremely high because there is no resistance in the path to limit current flow. Short circuit will result in dangerously high temperature which may cause fire.
Warning:
The use of any unprotected li-ion cylindrical 18650 battery as a stand-alone device, including with e-cigarettes, vaporizer pens or other products, constitutes a DANGEROUS misuse of the battery cells that poses a SERIOUS RISK of personal injury or property damage. These cells are only for prototyping with proper electronic protection circuits, and not for stand-alone use.
These are high discharge current & high capacity 18650 Li-ion batteries. If mishandled or mistreated, these batteries can cause you SERIOUS INJURY. USE AT YOUR OWN RISK.
