Description:

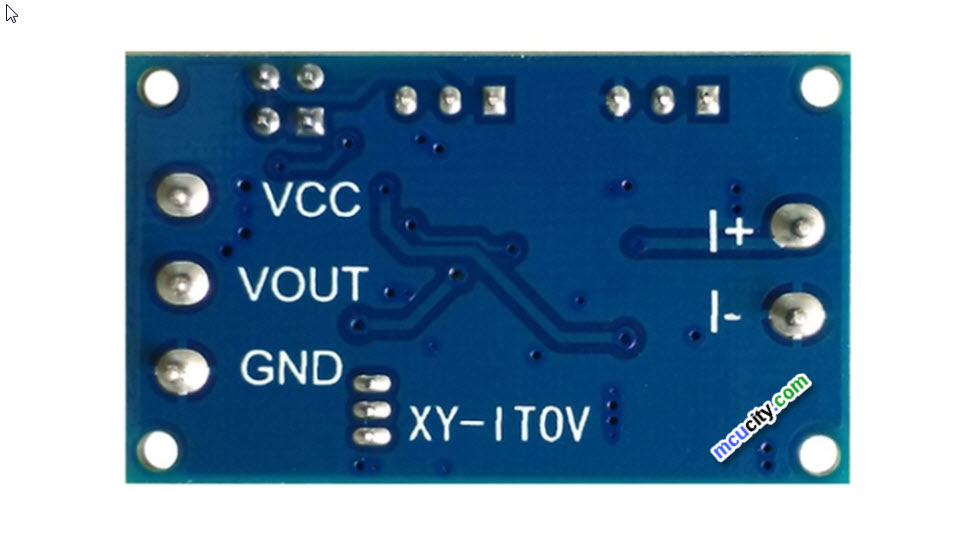

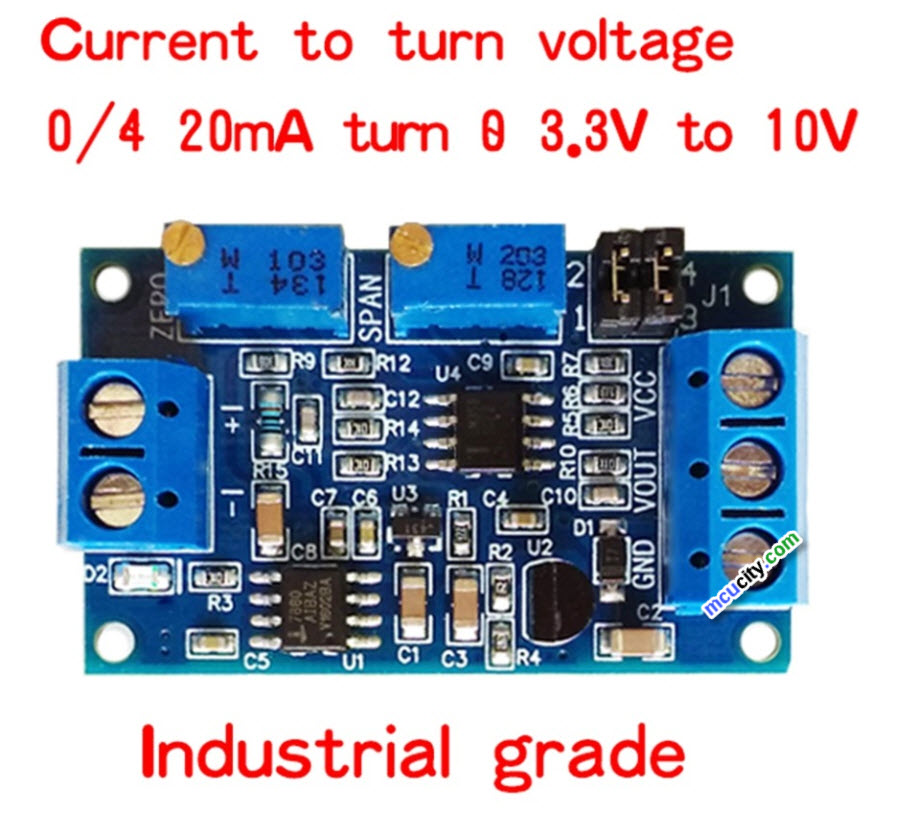

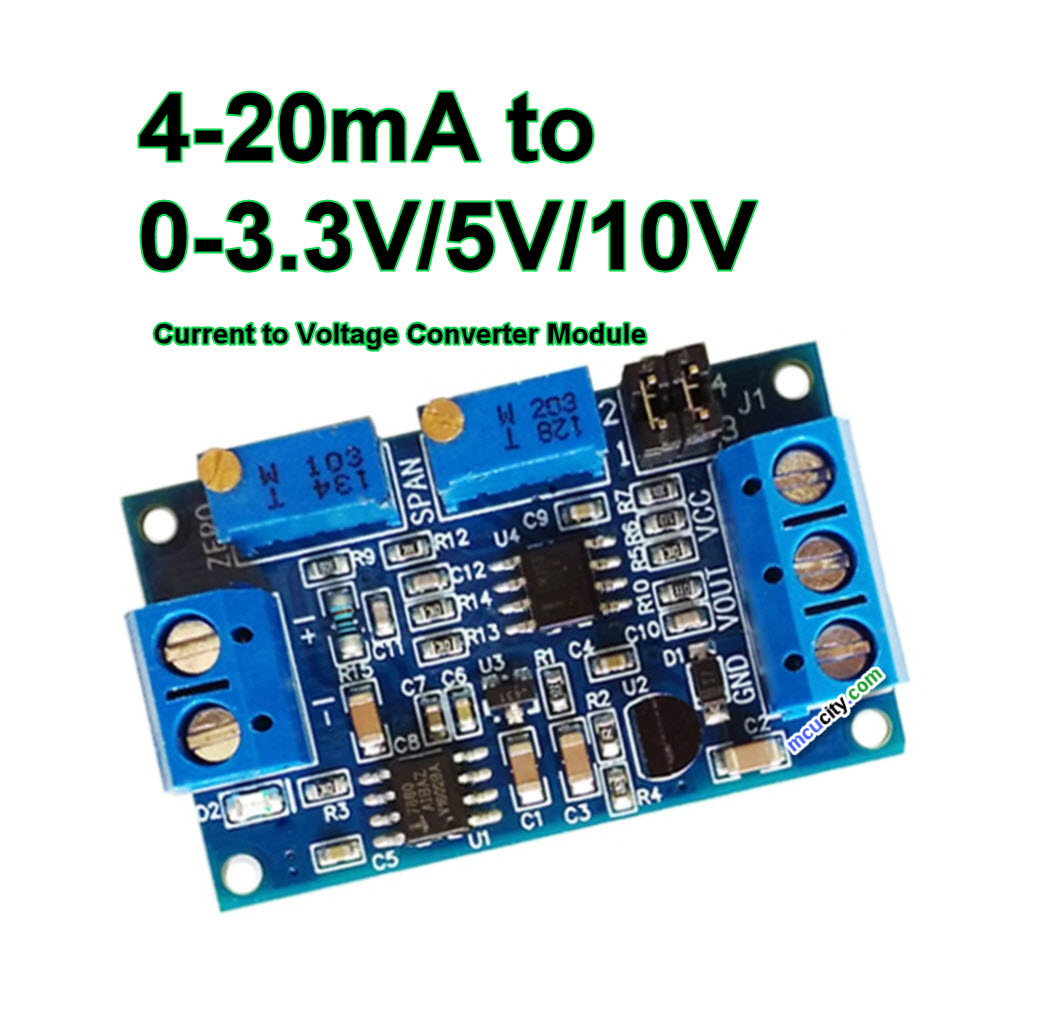

In the process of circuit signal transmission, the voltage signal will increase with the transmission distance becomes weak, the use of current transmission can avoid the signal weakening. This module is used for the end of the current signal transmission, the signal into a voltage signal for single-chip detection. Current input support 4-20Ma, 0-20mA, voltage output support 0-3.3V, 0-5V , 0-10V



Features:

Wide supply voltage range, the output voltage to support multiple ranges

Zero and range can be adjusted

High stability, good linearity, industrial grade

Current signal sampling resistor with high precision color ring resistance, high precision, temperature drift small, high power

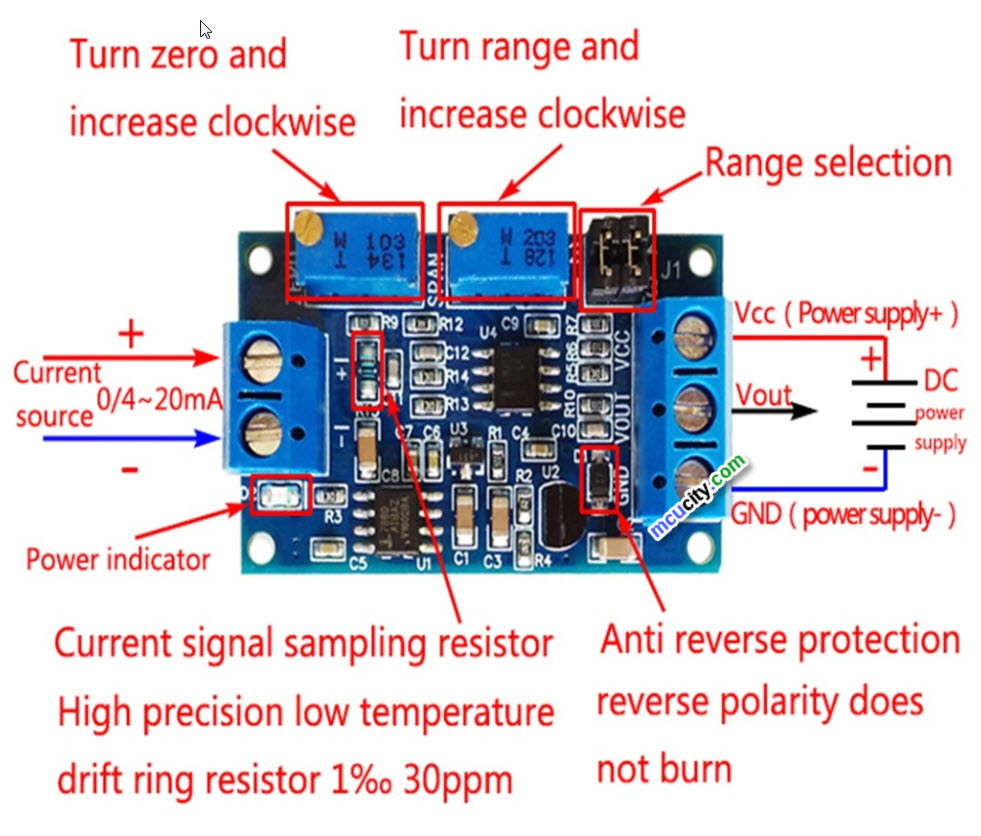

Instructions for use:

According to your needs, through the jumper cap to select the appropriate range:



(ON) = Close Jumper

(OFF) = Open Jumper



Range:  4->20mA:

0->2.5V range:   [J1] = 1,2 (ON), 3,4 (ON)

0->3.3V range:   [J1] = 1,2 (OFF), 3,4 (OFF)

0->5.0V range:   [J1] = 1,2 (ON), 3,4 (ON)

0->10.0V range: [J1] = 1,2 (ON), 3,4 (OFF)



0-20mA:

0->-3.3V range:  [J1] = 1,2 (ON), 3,4 (ON)

0->-5.0V range:  [J1] = 1,2 (ON), 3,4 (ON)

0->-10.0V range: [J1] = 1,2 (ON), 3,4 (OFF)

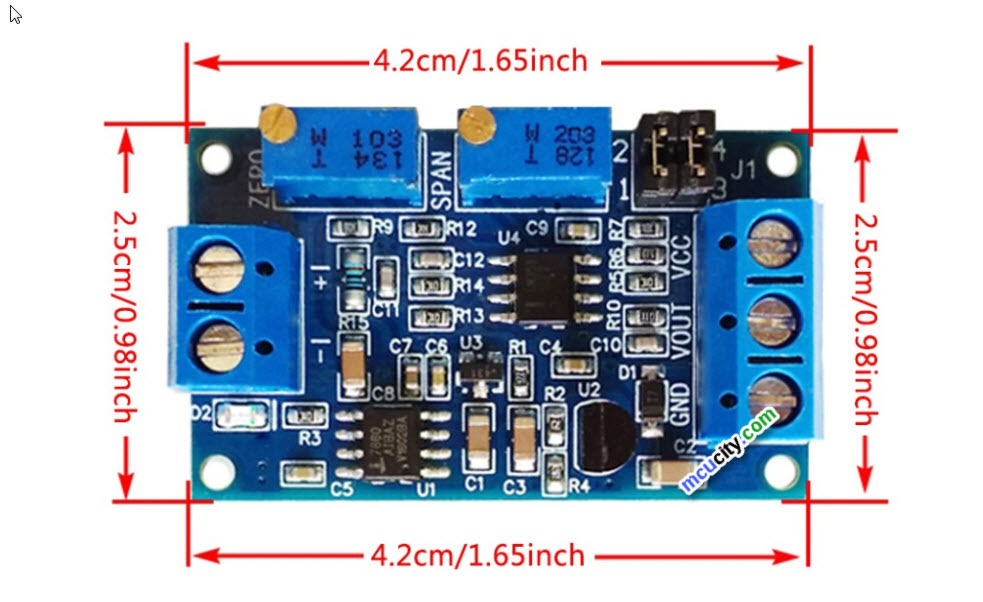

Size: 4.2x2.5cm/1.65x0.98inch

Quantity:  1 Pc



Note:

Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!



Package Contents:

1 Pc x Current To Voltage Module
*






*
