Nextion NX3224T028 - Generic 2.8'' TFT Intelligent LCD Touch Display

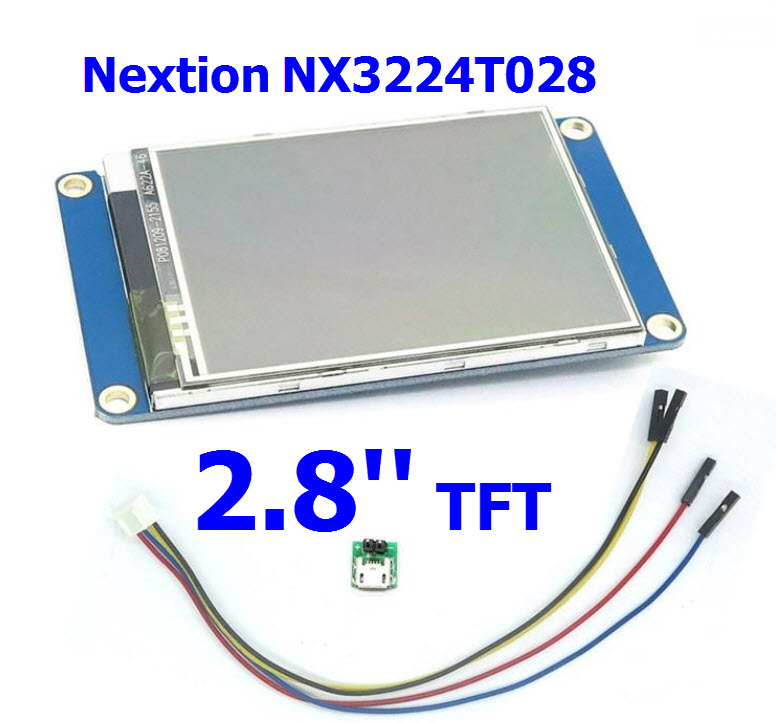

Package include: a Nextion 2.8'' display, a wire, a power supply test board

Note: there's a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image how to use it.

Features:

• Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2, Arduino
• 320x240 Resolution
• RGB 65K true to life colours
• TFT Screen with integrated 4-wire Resistive Touch Panel
• Easy 4 pin interface to any TTL Serial Host
• Microprocessor ARM7 48MHz
• 4M Flash memory for User Application Code and Data
• On board micro-SD card for firmware upgrade
• Visual Area:
• Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
• 5V 200mA DC recommended power supply
• 5V 90mA power conusmption

Documents:

• Wiki Page
• Nextion User Manual
• Download Nextion Editor
• Nextion Editor User Guide
• Arduino Library

Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. It is the best solution to replace the traditional LCD and LED Nixie tube.

Nextion includes hardware part (a series of TFT boards) and software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets you avoid the hassle of wiring. We notice that most engineers spend much time in application development but get unsatisfactory results. In this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich your interface design. And the drag-and-drop function ensures that you spend less time in programming, which will reduce 99% of your development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.

It's easy to adapt Nextion family HMI to existing projects, you just need to provide it a UART.

NX2432T028 is a powerful 2.8'' HMI, which is member of Nextion family. Features include: a 2.8" TFT 320 x 240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.

Features

• 320 x 240 Resolution
• Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
• RGB 65K true to life colours
• TFT Screen with integrated 4-wire Resistive Touch Panel
• Easy 4 pin interface to any TTL Serial Host
• 4M Flash memory for User Application Code and Data
• On board micro-SD card for firmware upgrade
• Visual Area:36.72mm(L)×48.96mm(W)
• Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
• 5V90mA power consumption

Software

Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.

Technical support

For technical support, please open a ticket on Itead Support System.
