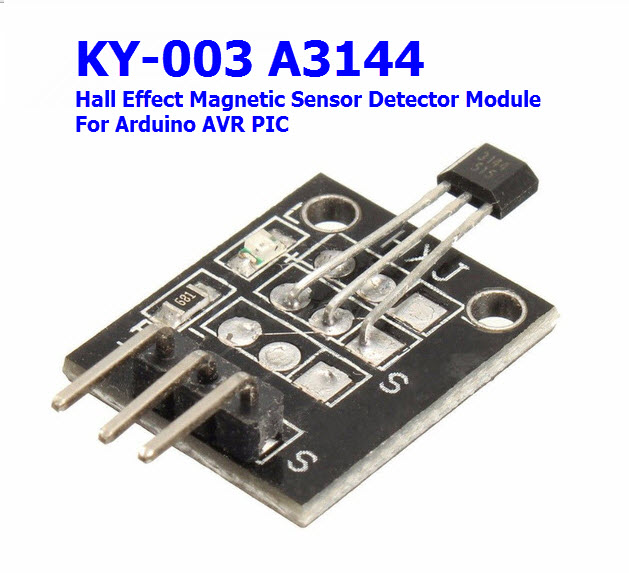

KY-003 A3144 Hall Effect Magnetic Sensor Detector Module For Arduino PIC

Specifications:

Limit parameter (25 ℃)
Power supply voltage VCC ·················· 24V
Output reverse breakdown voltage Vce ············ 50V
Output low current IOL ··················· 50mA
Storage temperature range TS ················ -65 ~ 150 ℃
Operating temperature TA :  E :-20 ~ 85 ℃,  L:-40 ~ 150 ℃

Features:

1. Series 3144, hall switch integrated circuit using hall effect principle.
2. Uses the semiconductor integrated technology
    manufacturing magnetic susceptibility of the circuit.
3. It is by the voltage regulator, hall voltage generator, differential amplifier,
    schmidt triggers, temperature compensation and the open collector output
    stage circuit composed of magnetic sensitive sensor circuit
4. Its input for the magnetic induction intensity
5. The output is a digital voltage signal
6. Working voltage:4.5V-24V
7. Size:1.8x1.5cm

1 x  KY-003 A3144 Hall Effect Magnetic Sensor Detector Module
