Nu-Link Programmer

Nu-Link Programmer
รหัสสินค้า PRO-NULINK
หมวดหมู่ ARM,STM32,STM8S,PIC
ราคา 500.00 บาท
น้ำหนัก 60 กรัม
ลงสินค้า 11 มี.ค. 2561
อัพเดทล่าสุด 14 ต.ค. 2565
ขออภัย สินค้าหมด
บัตรประชาชน
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

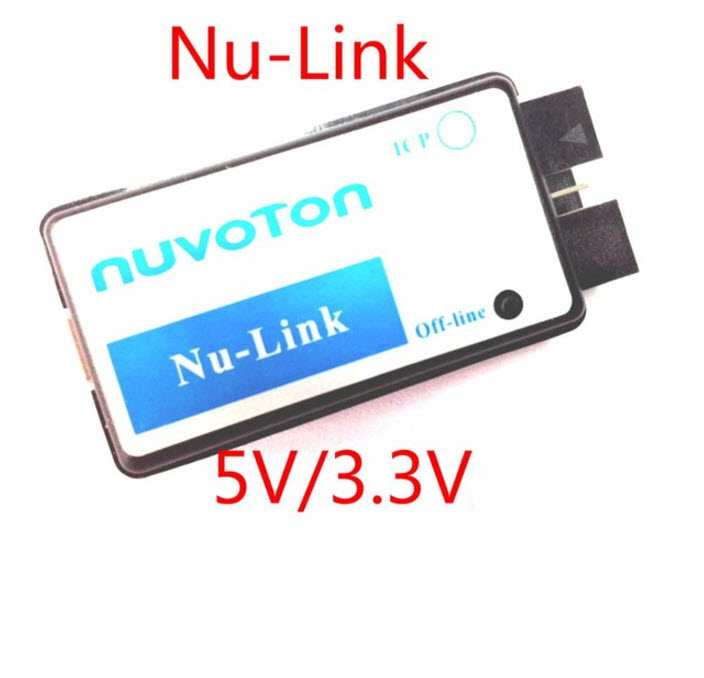

Nu-Link Programmer
  • USB←→SWD bridge
  • Support On-line and Off-line ICP (In-Circuit Programming)
  • USB Plug

Nu-Link ICP emulator downloader

With offline (offline) download!

Nu-LinkNot only is the emulator, or online, offline downloader, is a research and development to production from all applicable
3-in-1Tools


Branch
Support KEIL, IAR FOR ARM and other IDE tools

Flash breakpoints, regardless of the code in RAM or ROM, you can use unlimited breakpoints, unlimited number of breakpoints Cortex chip


Serial debugging of ARM Cortex-M0 device (SWD)

Memory access support program during operation, terminal emulation, and serial debug output


Nu-Link also supports on-chip program to upgrade and update (In-Circuit Program functions), for the development of mass production to achieve integration, simplified operation

USB HID device driver-free, plug and play


Firmware continuous automatic updates

Support WINXP, WIN7 32 / 64bit


Support for new Tang M0, M4 whole series MCU,MCS-51, N76Exxx





Interface definition is the official standard version:


1.VCC
2.DATA
3.CLK
4.RST
5.GND

Programming software:


Features

In-Circuit programming target chip
Online/offline programming mode
Backup flash data of target chip (If the target chip is not flash protected)
Backup offline flash data of Nu-Link dongle (if offline data has been unprotected)
Write software serials number (SN) to target chip
Limit the maximum programming count
Data encryption for online/offline programming
Batch mode for online/offline programming

2 Preparing for ICP Programming Tool
2.1 System Requirements
The hardware and software requirements for installing the ICP Programming Tool system
are as follows:
PC/AT compatible machine with Pentium or higher CPU
XVGA(1024*768) color monitor
At least 512M RAM for best performance
At least 20M free disk space
Windows 2000/XP/Vista/7

2.2 Hardware Installation
Step 1: Plug USB cable into the USB port of the ICP Programming Tool board.
Step 2: Connect the ICP Programming Tool board with ICE interface of DEV board.

2.3 Software Installation
Please run the installer package to install the software
