14.8V 16.8V 30A 4S Lithium Li-ion LiPo Polymer Battery BMS PCB System Balance

14.8V 16.8V 30A 4S Lithium Li-ion LiPo Polymer Battery BMS PCB System Balance
14.8V 16.8V 30A 4S Lithium Li-ion LiPo Polymer Battery BMS PCB System Balance14.8V 16.8V 30A 4S Lithium Li-ion LiPo Polymer Battery BMS PCB System Balance14.8V 16.8V 30A 4S Lithium Li-ion LiPo Polymer Battery BMS PCB System Balance14.8V 16.8V 30A 4S Lithium Li-ion LiPo Polymer Battery BMS PCB System Balance14.8V 16.8V 30A 4S Lithium Li-ion LiPo Polymer Battery BMS PCB System Balance14.8V 16.8V 30A 4S Lithium Li-ion LiPo Polymer Battery BMS PCB System Balance
รหัสสินค้า M1619
หมวดหมู่ บอร์ดชาร์ท/ควบคุม แบต/BMS
ราคา 135.00 บาท
น้ำหนัก 100 กรัม
ลงสินค้า 23 พ.ย. 2560
อัพเดทล่าสุด 13 พ.ค. 2564
ขออภัย สินค้าหมด
บัตรประชาชน
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Features:

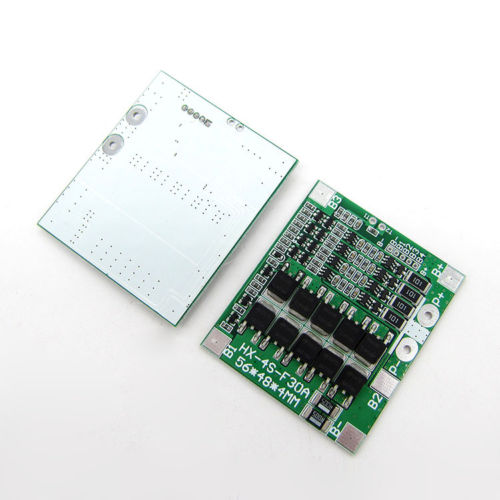

This board is 4 string 3.7V lithium battery protection board

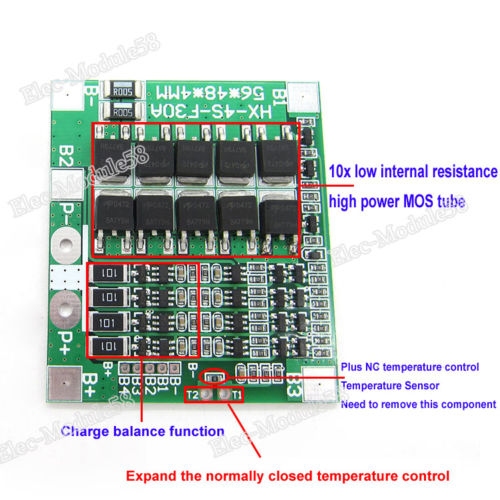

High current protection board, continuous 30A current, with balance circuit

PCB board size: 56*48*4 (MM)

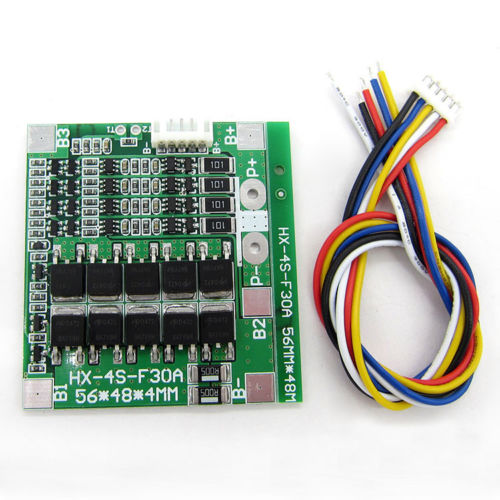

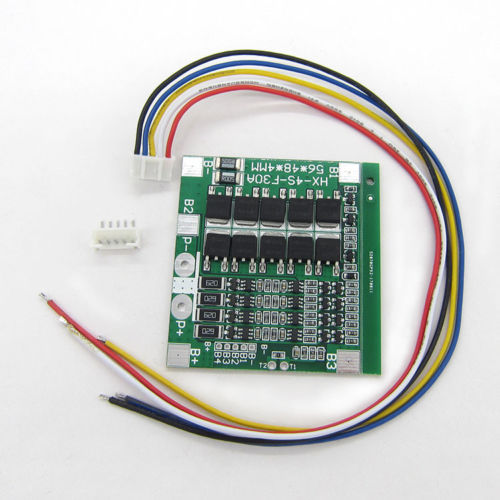

The board comes with cable.

Detailed parameter:


Detail

Specifications



Tipical

Unit

Discharge

Continuous
Discharging Current



30(MAX)

A



Instantaneous

Discharge Current

56

A



Charge

Charging Voltage

16.8

V



Charging Current

20(MAX)

A



Overcharge Protect

Over-charge Detect

4.28±0.05

V



Protect Delay

0.5

S



Over-charge release

4.08±0.05

V



Balance

Detect Voltage

4.20±0.05

V



Release Voltage

4.20±0.05

V



Balance Current

45

mA



Over-discharge Protect

Over-discharge Detect

2.5±0.08

V



Over-discharge Detect delay

0.1

S



Release Voltage

2.9±0.1

V



Over-current Protect

Detect Voltage

150

mV



Detect Delay

40

mS



Current Detect

56±10

A



Release Condition

Cut Load



Short-circuit Protect

Protect Condition

Cut Load

   Prohibit short circuit

Detect Delay

150

uS



Release Condition

Cut Load



Temperature Protect

/

/

 Can Add

Resistance

Inner

≤20



Self-Consumption

Working Current

≤30

uA



Sleep Current (when Over-discharge)

≤20

uA



Working Temperature

Range

-30/+80

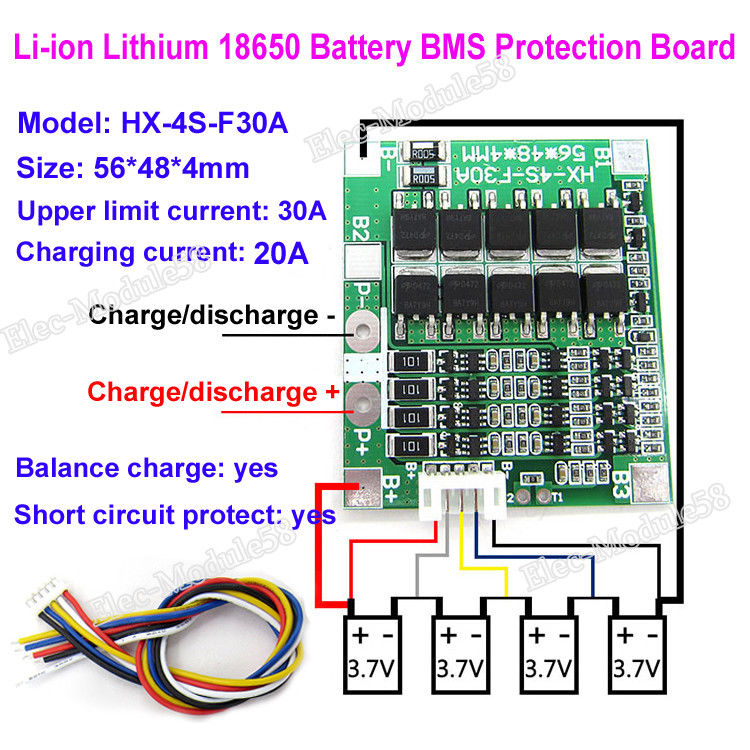

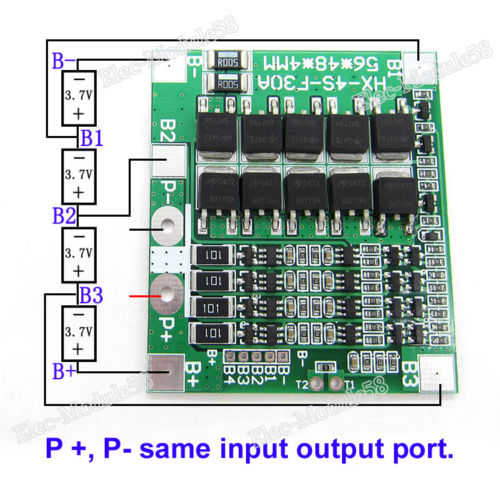

Connection description:
P+ P- is the abbreviation of PACK+ PACK-, that is, the output of positive and negative poles;
B+ B- is the abbreviation of BATTERY. which is the positive and negative pole of the battery.

Package Included:
1 x 4S Lithium 18650 Battery BMS Packs PCB Protection Board

*










*
