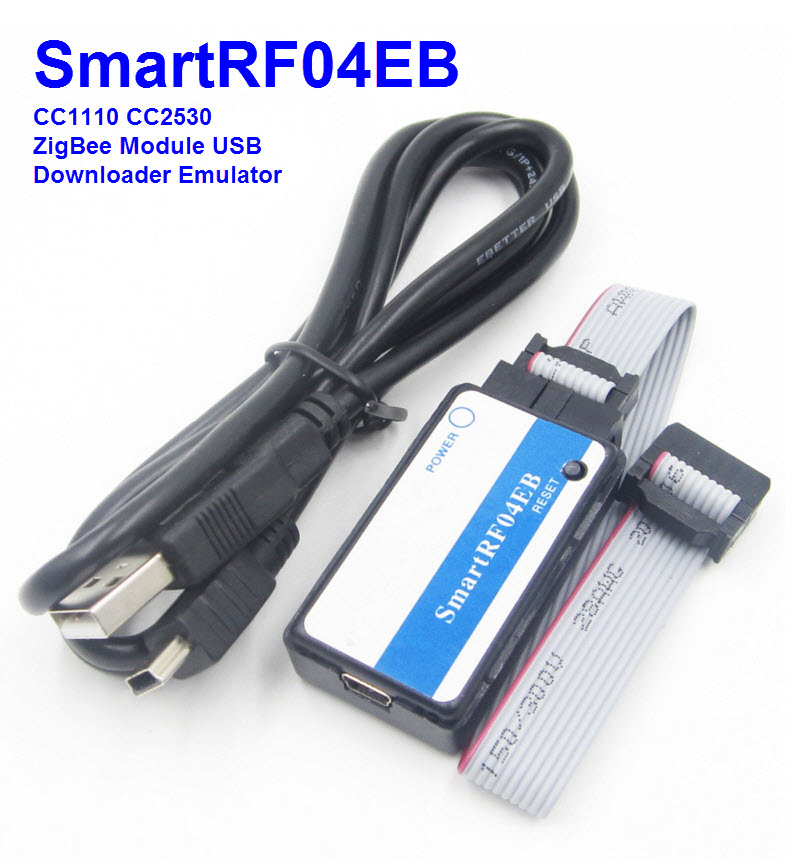

SmartRF04EB CC1110 CC2530 ZigBee Module USB Downloader Emulator

SmartRF04EB CC1110 CC2530 ZigBee Module USB Downloader Emulator
รหัสสินค้า TOL-020-00
หมวดหมู่ มัลติมิเตอร์, ESR Tester,Logic analyzer
ราคา 300.00 บาท
น้ำหนัก 80 กรัม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 21 ต.ค. 2560
อัพเดทล่าสุด 26 ธ.ค. 2565
จำนวน
ชิ้น
หยิบลงตะกร้า
บัตรประชาชน
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

SmartRF04EB CC1110 CC2530 zigbee Emulator Programmer





Product Description



Description
The CC Debugger is primarily used for debugging and programming the flash on CCxxxx 8051-based System-on-Chip (SoC) devices from Texas Instruments. CC Debugger also supports CCxxxx RF transceivers. In addition, CC Debugger is used for configuring the CC85xx devices with PurePath Wireless Configurator.

Key Features
Performance
Compatible with the original TI CC Debugger
Supported Operating Systems: Windows 2000, Windows xp sp2/sp3, Windows Vista 32bit, Windows 7 32bit
Target voltage: 1.2V~3.6V
Capable of powering the target board from the debugger
Operating temperature: 0°C~85°C
Supported Software
IAR Embedded Workbench For C8051
SmartRF Flash Programmer
SmartRF Studio
SmartRF Packet Sniffer
PurePath Wireless Configurator
Connects to PC
Computer connection via USB interface
Connects to target board

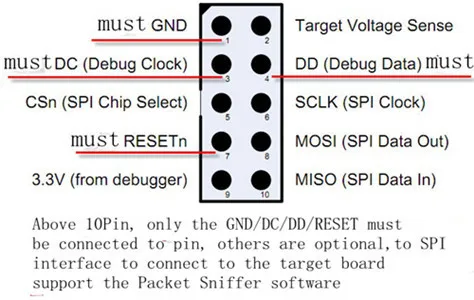

Target board connection via 10-pin IDC connector (2x5 2.54mm pitch)

LED Status
OFF: The debugger has no power or there is no valid firmware on the debugger.
AMBER (BOTH LEDS ON): The debugger is powered, but there is no valid firmware.
RED LED BLINKING: The Debugger is in Boot Recovery Mode.
RED LED ON: No device detected. This might be due to old firmware on the CC Debugger, or a problem with the hardware connection (make sure the target board is properly powered and connected correctly).


ZIGBEE emulator for CC1110 CC2530 (SmartRF04EB enterprise edition)



SmartRF04EB Introduction
1 SmartRF04EB, CC series wireless chip debugging tool, which can be used for CC11xx, CC24xx, CC25xx (NOT support CC2541) and many other series, support a variety of debugging tools, such as download, simulation, debugging, breakpoint, step, full, erase, read, encryption etc, support protocol analysis
2 Seamless connectivity with IAR for MCS-51 compiler, currently known version is IAR730B, IAR751, IAR760, IAR810
3 Support software tools: SmartRF Studio, SmartRF Flash Programmer, IEEE Address Programmer, Packet Sniffer
4 Support operating system: WINXP, WIN7/10
32&64bit



Characteristics and performance
1 Dual buffer outputs, stable, reliable, compatible with most domestic module pin
2 Automatic recognition speed, download speed of up to 150KB/S
3 Provide the 3.3V voltage to the target board
4 The interface defined is official standard edition











Shipping list
1) 1* Host
2) 1* USB cable
3) 1* 10P gray line



QQ20170402174944_
