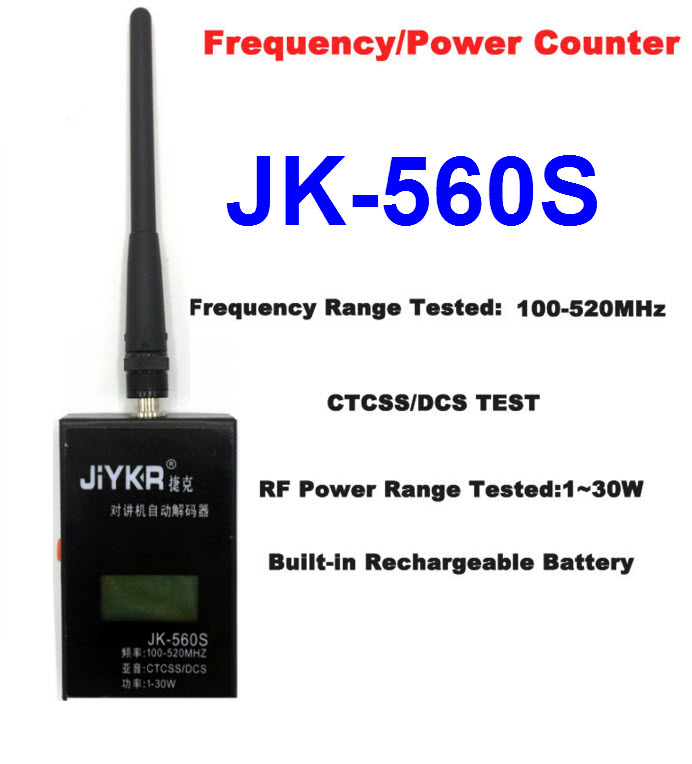

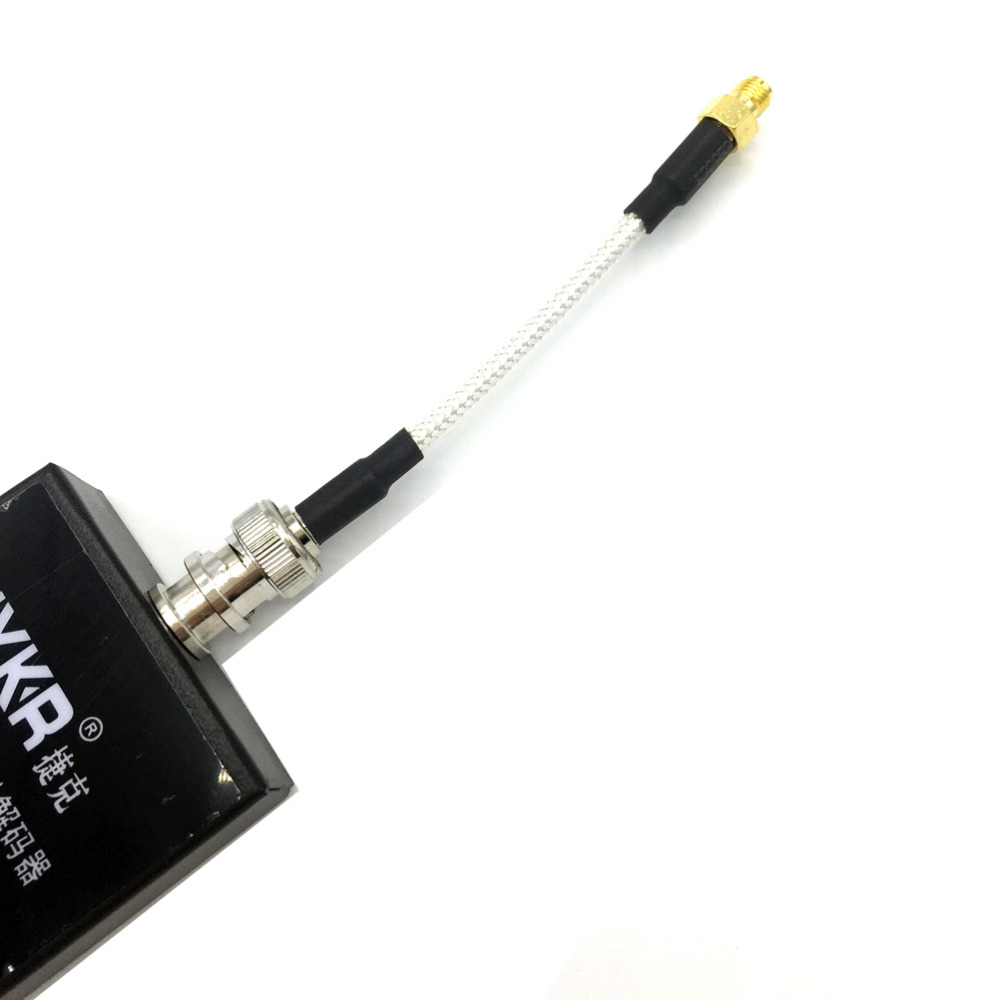

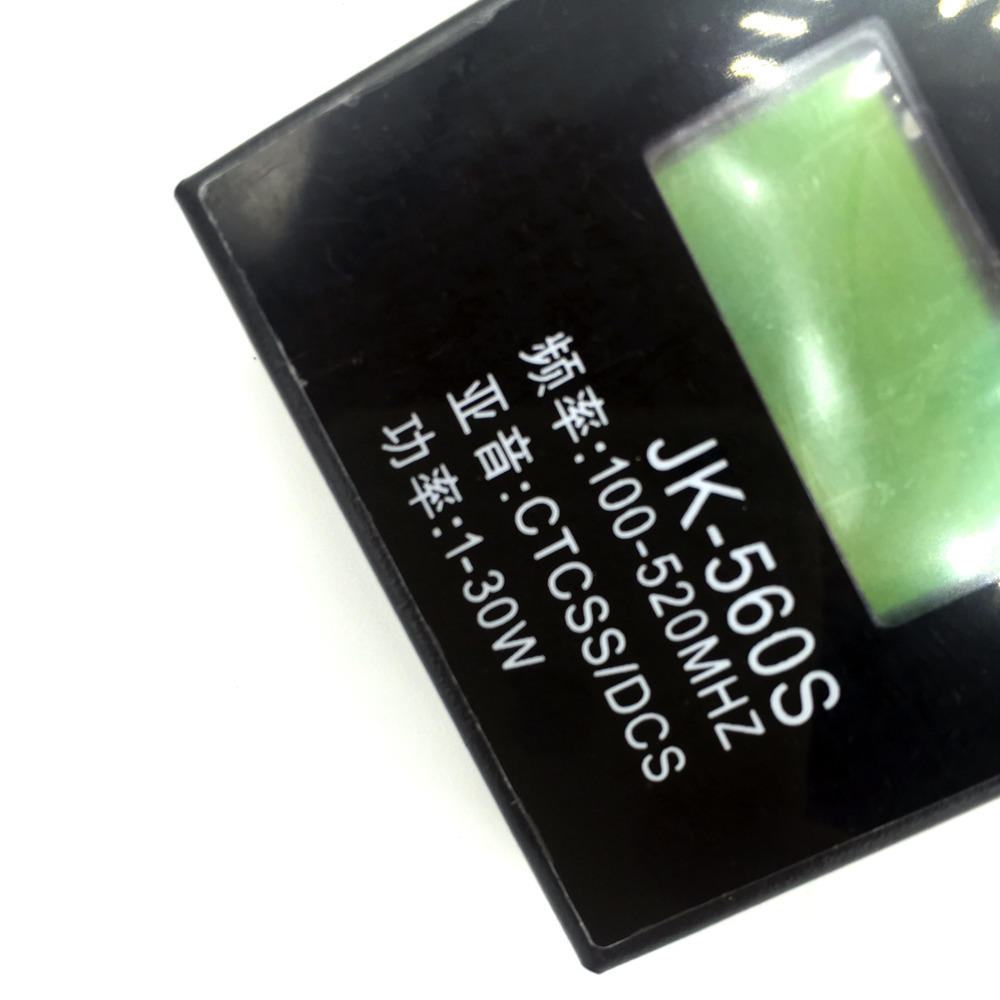

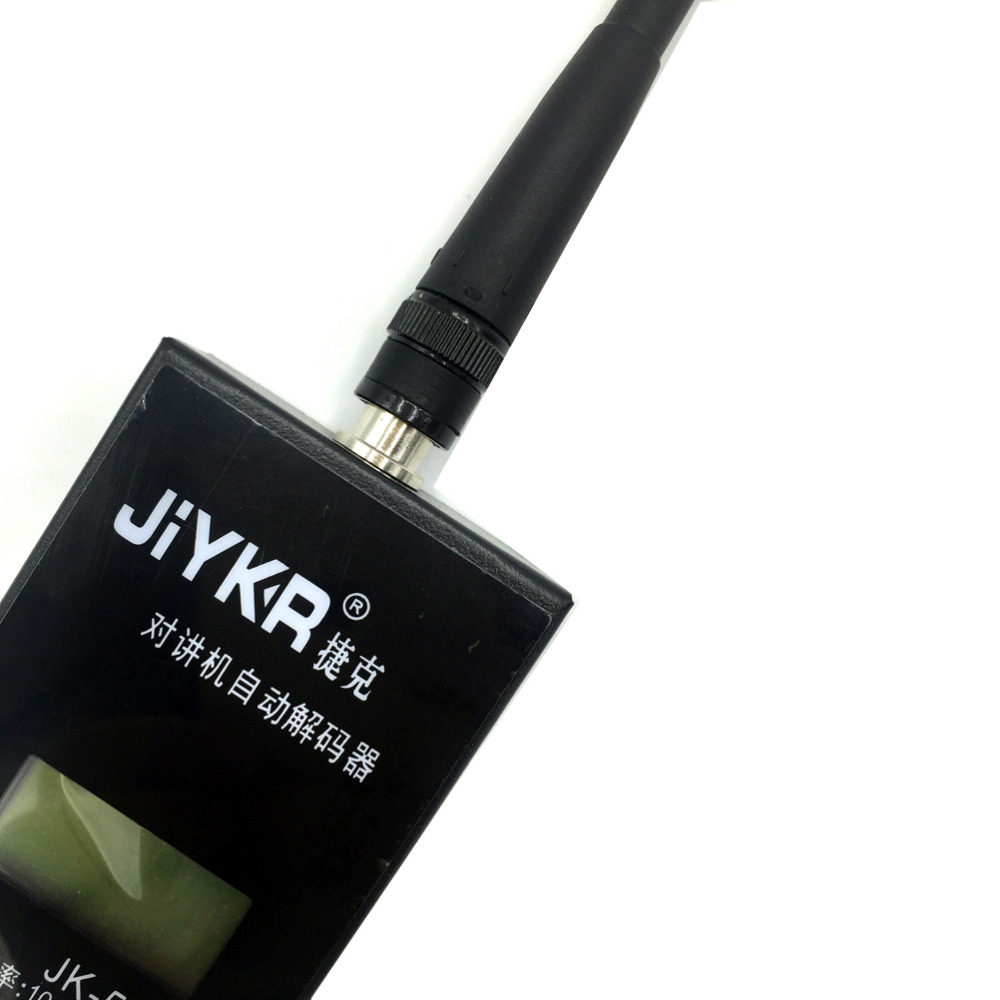

JK-560S Frequency Counter CTCSS/DCS Power decoder for Walkie talkie 100MHz-520MHz with SMA-Female antenna connector

JK-560S Portable  Frequency,Power,CTCSS & DCS 3 in 1 Frequency Counter 100-520MHz,CTCSS/DCS,1-30W Frequency Meter

The JK-560S frequency and power meter with the LED display screen is designed for measure the frequency,power and the Tone(CTCSS/DCS) of the radio devices. Thanks to the built-in dummy load, which gives the said device more relaiable proformance and easier to be carried.You may choose the right mode to measure the frequency or RF power or the Tone by connecting or unconnecting to the transmitter to be measured.

Features:

-LED Display Screen

-Frequency Tested,RF Power Tested,Tone(CTCSS/DCS) Tested 3 in 1

-Built-in 1500mAh Rechargeable Li-ion

-Battery Save Mode, The device will be OFF automatically if it is free for 1 minutes

-Auto 0.1KHz

Specifications:

1. Frequency Range:100MHz---520MHz
2. RF Power Range:1W---30W
3. Impedance Input: 50 Ohm
4. Distance covered : 5m for U-band and V-band
5. Response Time: 0.2s
6. Working Temperature: -20°c~+60°c
7. Battery: Built-in 1500mAh Rechargeable Li-ion Battery
8. Current Consumption: about 100mA
9. Auto Power offtime: 60S

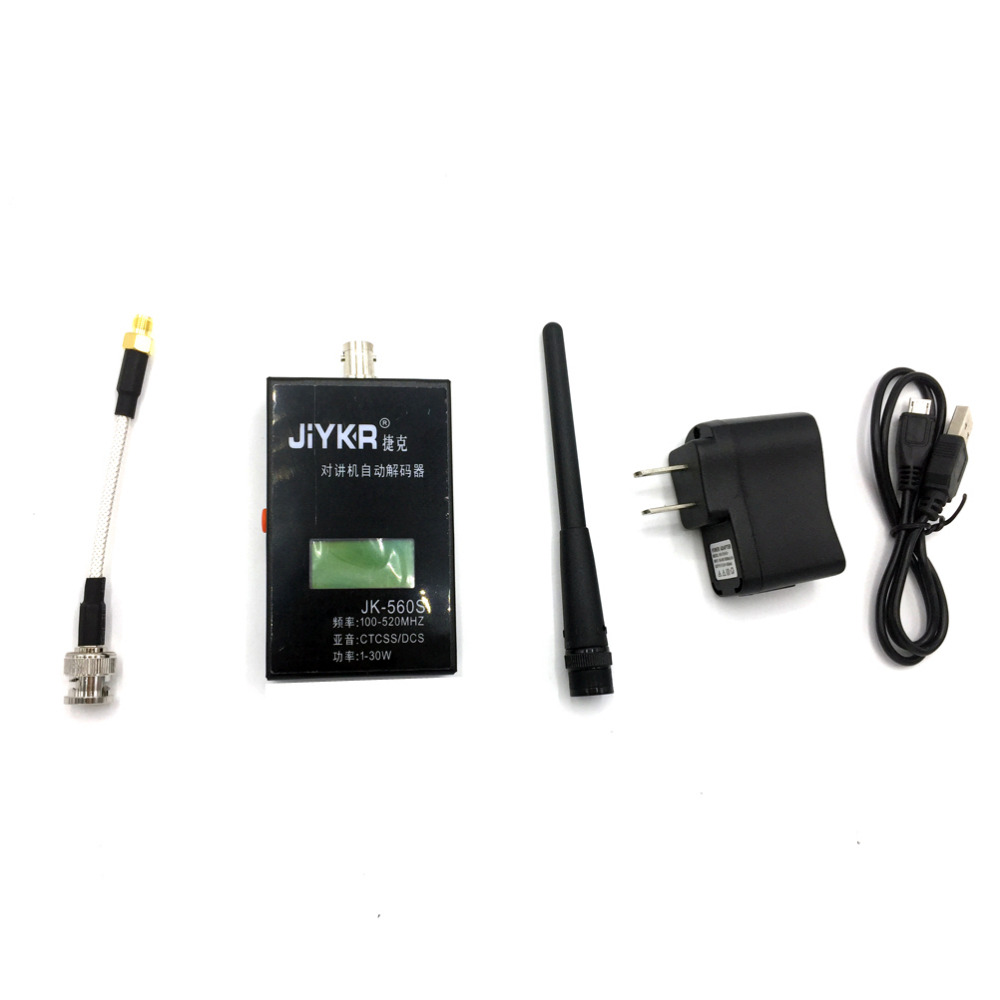

-1× 110-240V Wall Adapter
