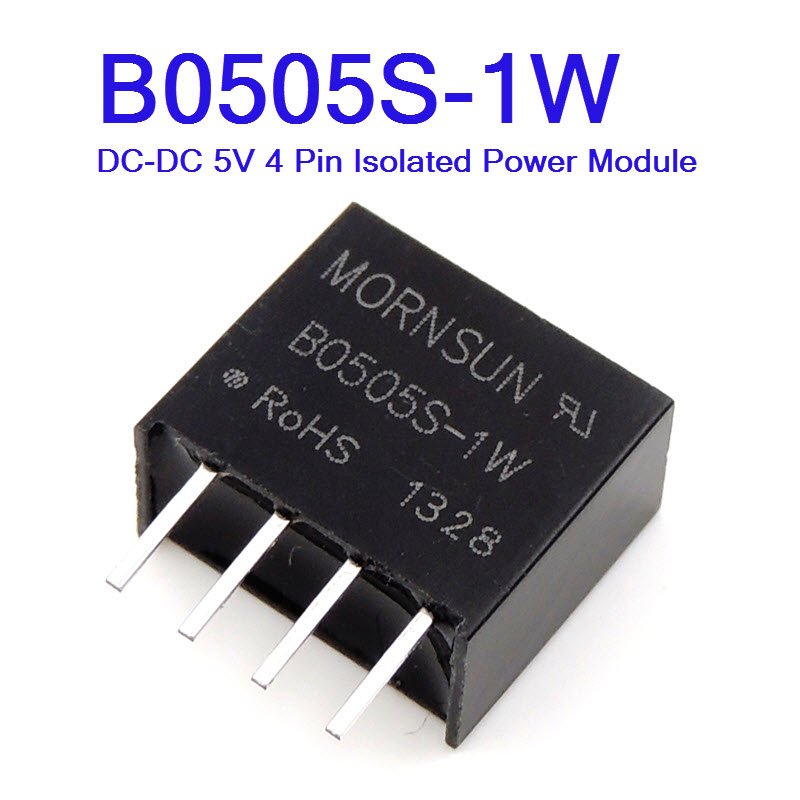

B0505S-1W DC-DC 5V 4 Pin Isolated Power Module (1KVDC Isolation)

B0505S-1W ( DC/DC Converter Isolation)
B0505S-1W DC-DC 5V to 5V
MORNSUN Isolated Power Module

FEATURES
● Efficiency up to 80%
● Small Footprint
● Miniature SIP/DIP Package
● 1KVDC Isolation
● Temperature Range: -40°C ~ +85°C
● Internal SMD Construction
● Industry Standard Pinout
● No Heat sink Required
● No External Component Required
● PCB Mounting
● RoHS Compliance

APPLICATIONS
The B_S-1W & B_D-1W Series are specially designed for applications where a single power supply is isolated from the input power supply in a distributed power supply system on a circuit board.

These products apply to:
1) Where the voltage of the input power supply is fixed (voltage variation ≤ ±10%);
2) Where isolation is necessary between input and output (isolation voltage ≤1000VDC);
3) Where the regulation of the output voltage and the output ripple and noise are not demanding. Such as: purely digital circuits, ordinary low frequency analog circuits and IGBT power device driven circuits, etc
