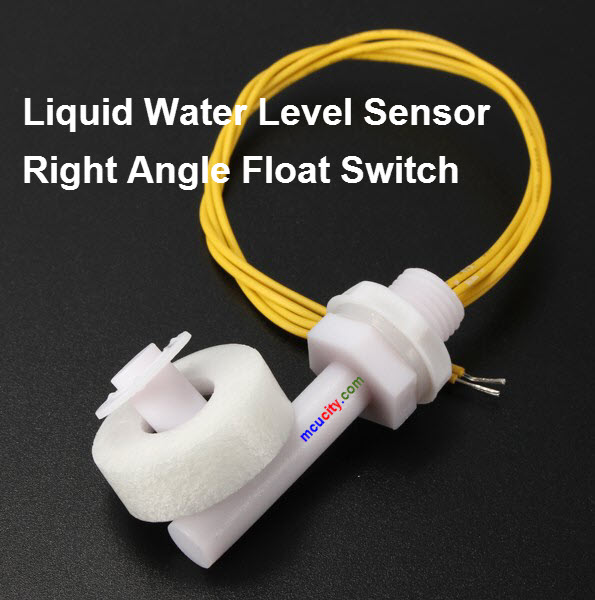

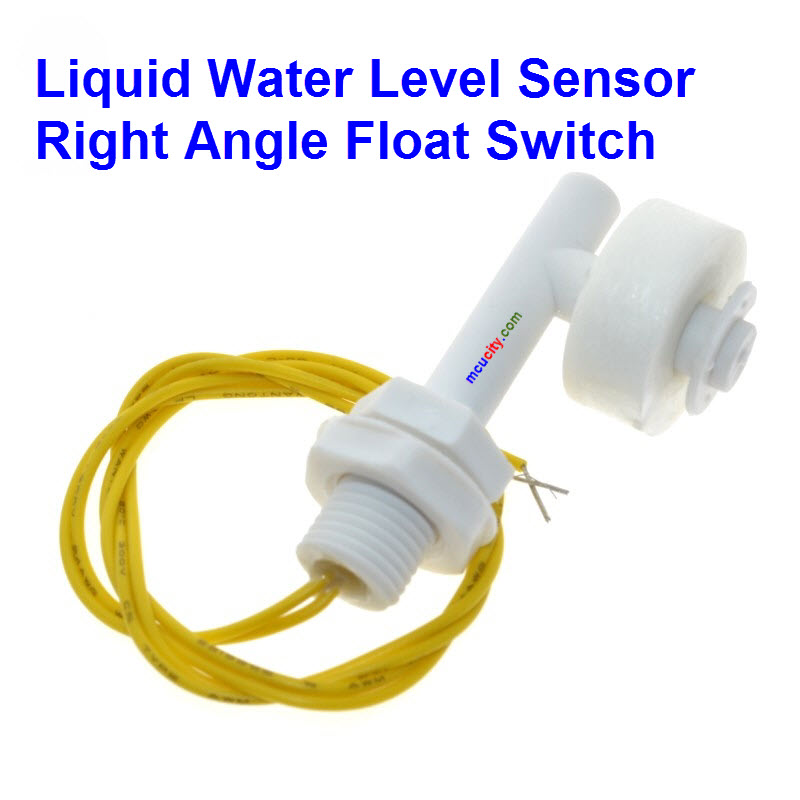

Liquid Water Level Sensor Right Angle Float Switch Mini Float Switch Contains for Fish Tank Switchs sensors

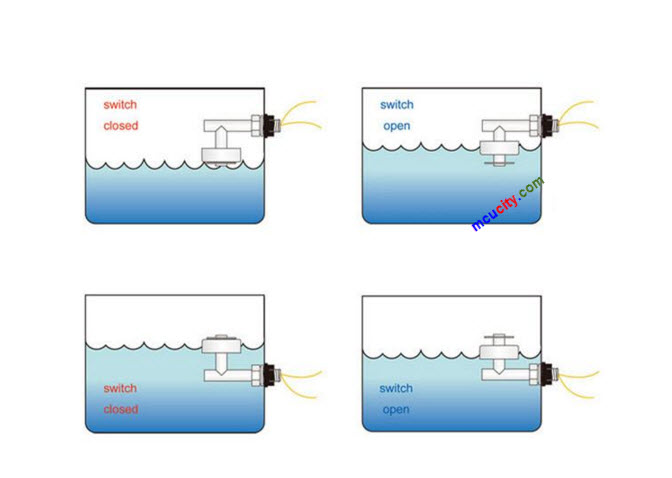

A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
Liquid level sensor using imported switching elements, with lightweight, the working principle is simple, reliable, inexpensive features.
Products can be used for drinking fountains, water heaters, solar, air conditioners, humidifiers, bathroom equipment, vending machines, tanks,
water towers, chemical liquid level control, kitchen equipment, water heaters, etc.
This is a mini float switch.
Specifications:
| Product Name | Floating Switch |
| Model No. | ZPC1 |
| Max Contact Rating | |
| 10W | |
| Max Switching Voltage | 100V DC |
| Max Switching Current | 0.5A |
| Max Breakdown Voltage | 220V DC |
| Max Load Current | 1A |
| Max Contact Resistance | 100mΩ |
| Temperature Rating | -10 / +85 °C |
| Float Ring Material | P.P |
| Float Body Material | P.P |

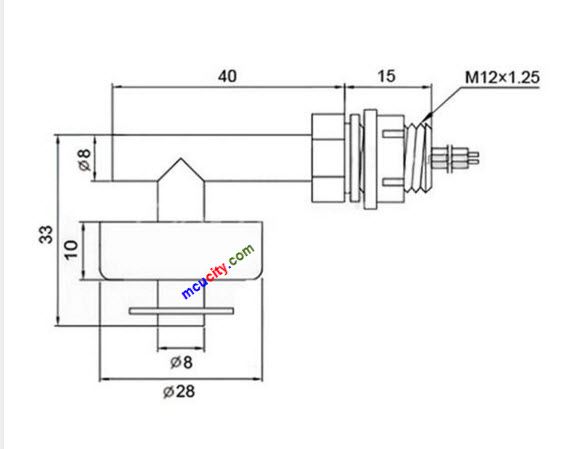

| Thread Dia(Approx) | 11.5mm / 0.45" |
| Body Total Length | 54mm / 2.1" |
| Cable Length | 36cm / 14.2" |
| Color | White |
| Net Weight | 56g |
Package include:
1x Right Angle Float Switch
