รหัสสินค้า | M1380 |
หมวดหมู่ | USB Volt/Amp Powerbank |
ราคา | 410.00 บาท |
น้ำหนัก | 112 กรัม |
ลงสินค้า | 22 ส.ค. 2560 |
อัพเดทล่าสุด | 30 ส.ค. 2564 |
cautions:
1. The charger can charge cylinder lithium ion batteries (3.7V and 3.8V), Ni-MH/Cd,
2. ferric phosphate lithium cell(LiFePO4)
3. Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit
4. 5V USB adapter (adaptor current 2A) is recommended
5. Cation heating while charging
6. Remove the charger from power source after charging complete, and remove the battery from the charger at the same time
7. For indoor use only
8. The displaying data for reference and refer to professional instrument for more accurate data
Specification and function:
1. Micro USB DC 5V input, four independent charging and micro computer management system
2. Four charging current mode (500mAh/700mAhn/1000mAh/2000mAh), 2000mAh current
mode is fixed only on the fourth slot

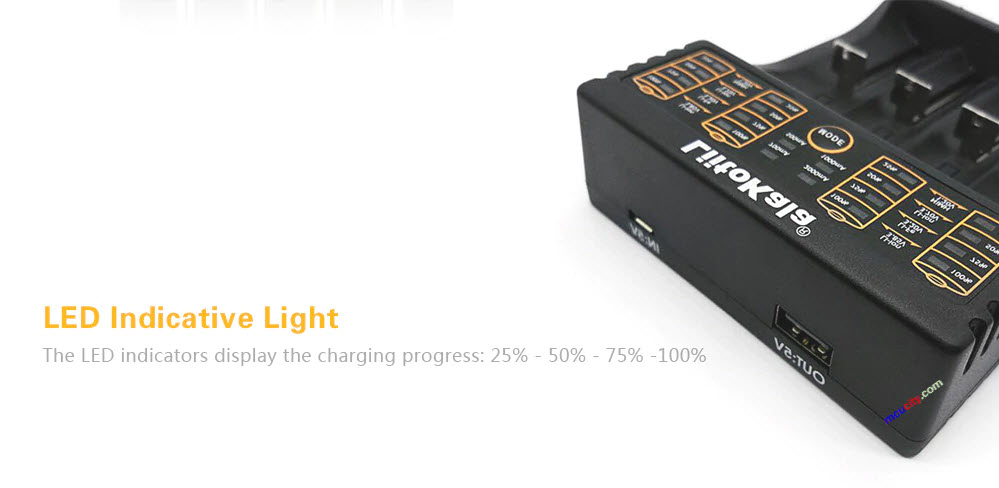

3. The LED indicators display the charging progress: 25% - 50% - 75% -100% and battery type (size): Ni-MH 1.2V , Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.85V

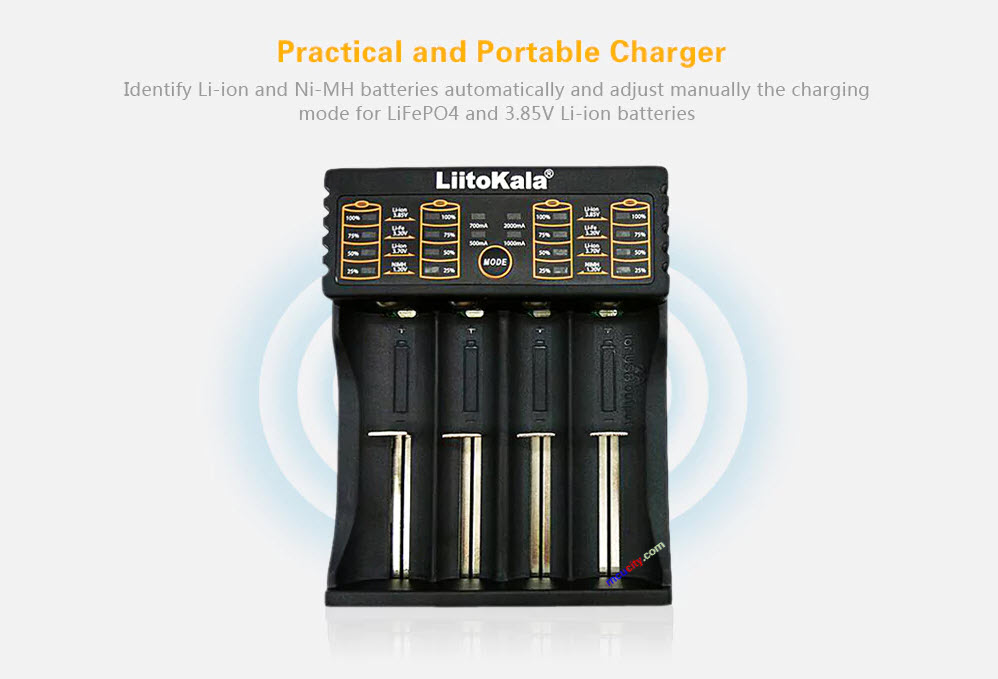

4. Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.85V li-ion batteries
5. Refresh for OV battery. It don’t charge any battery of1.65 -1.85V (refresh current can be detected only)

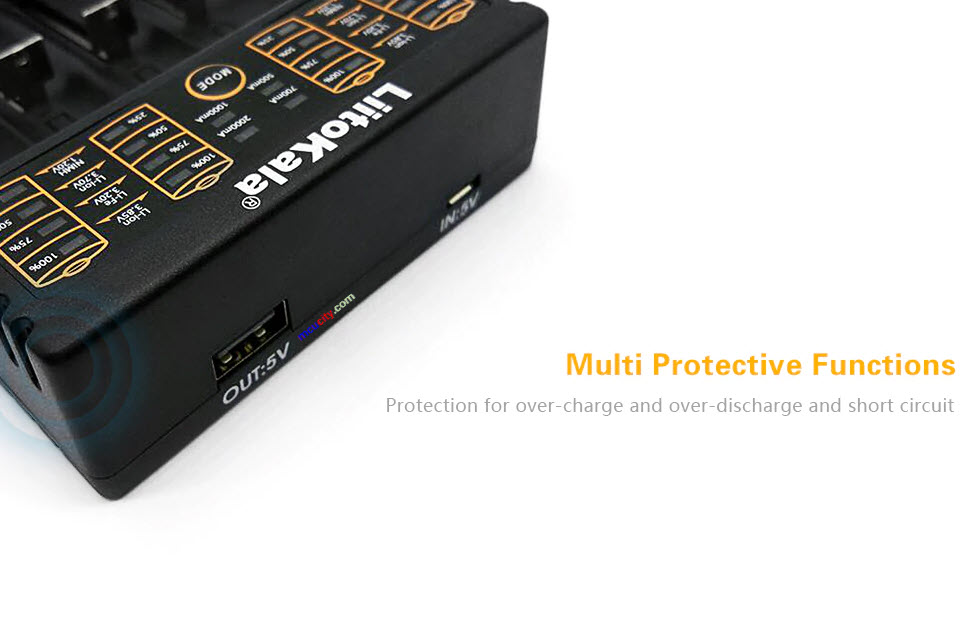

6. Protection for over-charge and over-discharge and short circuit. Identify broken battery and polar reverse inspection
7. Charing under constant voltage and current
8. Input by DC interface and working voltage is 5V-2A (Micro plug)
9. Built with 5V/1000mAh USB discharge (output) function
Button, LED and function
1. Buttons : While electricity is connected, 1) press the button to change the battery type, it will start to charge 5 seconds after setting the battery type (3.2V or 3.85V), 1.2V Ni-MH and 3.7V li-ion ca be detected automatically, so it need set for only 3.2V and 3.8V batteries; 2) change the charging current amount 4 current at any time during charging by long press the button
2. LED: While connect it to 5V input, all LED light up immediately 1) If no battery is put in, 500mAh LED keeps on and others will go out. 2) When battery is detected in, 4 LED lights on AND 3.7V LED keep flicker to indicate to set the battery type, if no operation, it begin to charge 5 seconds later automatically under detection, four LED lights will display the charging status. 3) Tap the button .can show the battery type for 5 seconds. 4) No electricity is connected, insert a battery can quick shows the remaining battery volume.
3. USB output indicator: When USB discharging port detected, indicator of battery volume will light up for 10 seconds and go out, press button to light up again.
4. LED displaying graphic reference

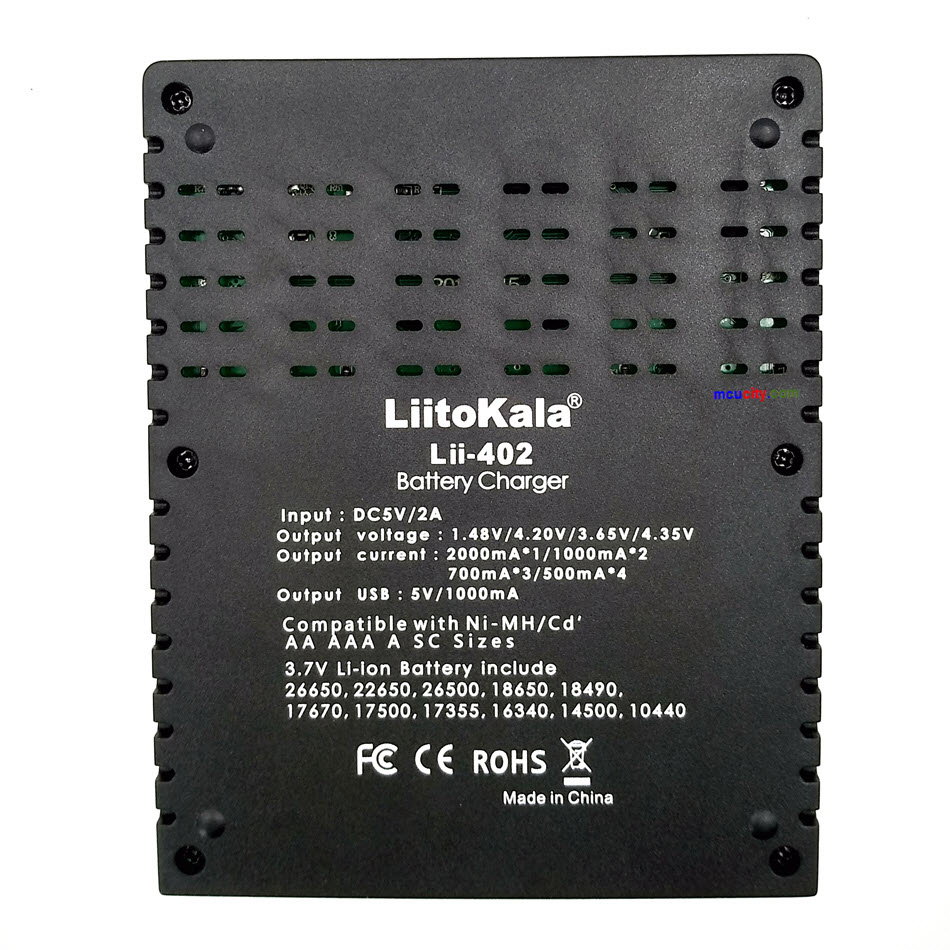

Technical specification
1. Input : Micro USB DC 5V/2A
2. Output: 1.42V
4.2V±0.05V,
3.65±0.05V
4.35±0.05V
3. Current: 2000mA*1 1000mA*2 700mA*3 500mA*4
4. Constant voltage, cut-off current: less than 100mAh
5. Standby current: less than 15mAh
USB Output function
1. 0pen-circuit voltage of USB output : 4.9-5.3V; and the 4th slot is fixed for the USB discharge power source
2. Output current: 1000mAh
3. Open circuit current: <1mAh
4. The corresponding voltage is 4.75-5.25V under 1000mAh current
5. Cut-off voltage for discharge protection: 3.0±0.1V
Li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
Compatibility: Li-ion/IMR: 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
Cautions:
1. Can't charge battery type of 1.6 - 2.2V
2. Batteries are not included
3. Size: 112mm x 90mm x 30mm (L x W x H)
4. Weight: 100 grams (incl. micro cable)
Packing list:

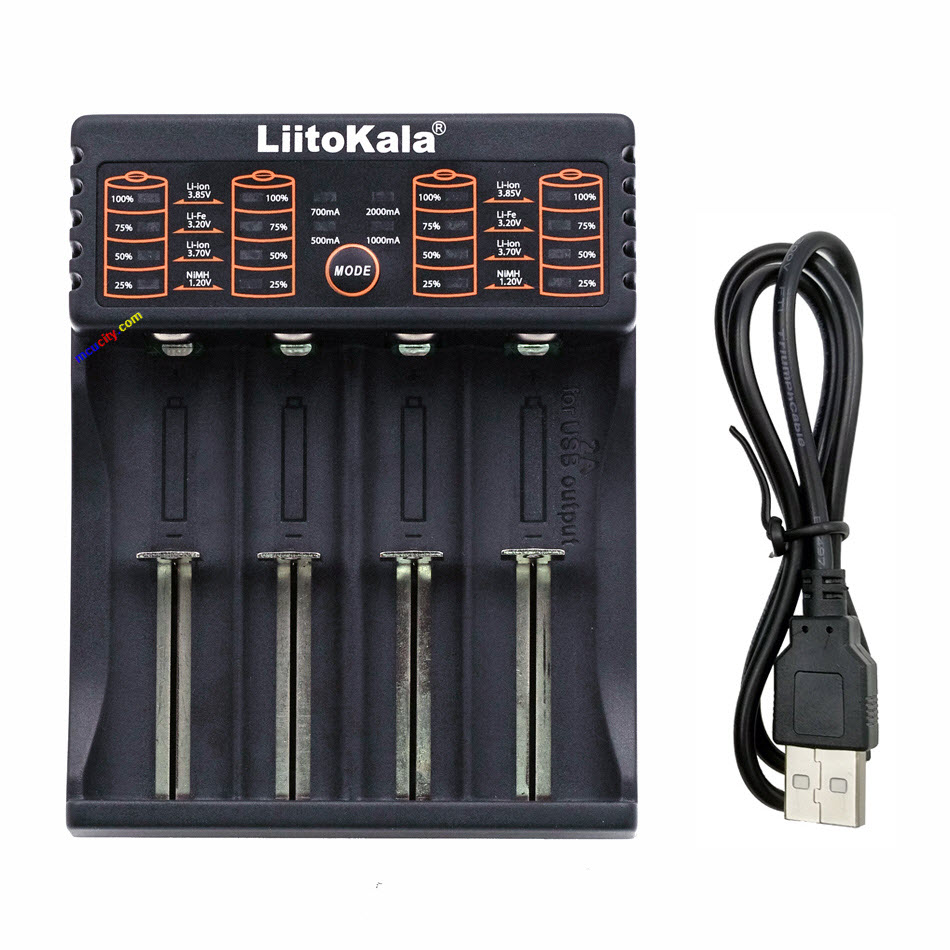

1*Liitokala Lii-402 charger(not includ battery)
1*USB canble
1* Manual
You must carefully read, and comply with the safety instructions and precautions in this Safety Instructions guide before charging, using your battery.
Failure to read, and follow Li-ion safety instructions, and warnings may result in fire, personal injury, and property damages if battery is charged and/or used improperly.
Lithium-ion battery cells may get extremely hot, explode or ignite, and cause serious injury if exposed to abuse conditions. Be sure to follow the safety warnings listed below.
What is short circuit?
Situation when battery positive (+) and negative (-) connect. The current will become extremely high because there is no resistance in the path to limit current flow. Short circuit will result in dangerously high temperature which may cause fire.
Warning:
The use of any unprotected li-ion cylindrical 18650 battery as a stand-alone device, including with e-cigarettes, vaporizer pens or other products, constitutes a DANGEROUS misuse of the battery cells that poses a SERIOUS RISK of personal injury or property damage. These cells are only for prototyping with proper electronic protection circuits, and not for stand-alone use.
These are high discharge current & high capacity 18650 Li-ion batteries. If mishandled or mistreated, these batteries can cause you SERIOUS INJURY. USE AT YOUR OWN RISK.
