รหัสสินค้า | M1296 |
หมวดหมู่ | 18350 16340 |
ราคา | 90.00 บาท |
น้ำหนัก | 22 กรัม |
ลงสินค้า | 10 มิ.ย. 2560 |
อัพเดทล่าสุด | 14 พ.ค. 2564 |

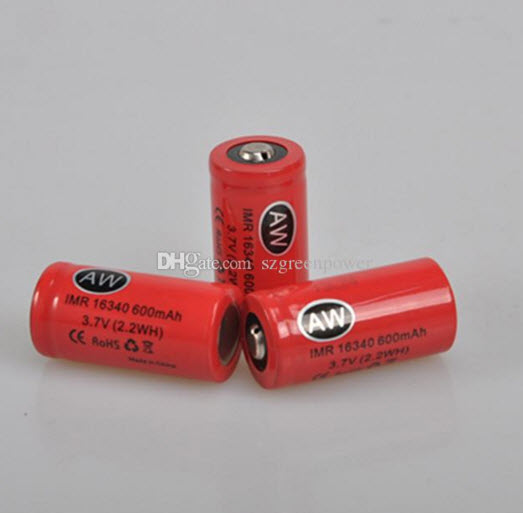

AW 16340 600mah 3.7V 2.2WH IMR lithium ion rechargeable battery
Specification(aw imr 16340 3.7v 600mah)
Item |
Specification |
|
size: |
T16*H34mm |
|
Nominal Capacity |
600mah |
|
Nominal Voltage |
3.7v |
|
Composed Type |
1 pc battery cell |
|
Charging Current |
0.5A-2A |
|
Charging Time |
2-3H |
|
Charge Method |
CC-CV |
|
Max Discharge Current |
20C |
|
Recharge Cycle Life |
more than 800 times |
|
Working Temperature |
Charge |
0~45°C,45~85%RH |
Dis-charge |
-20~60°C,45~85%RH |
|
Storage Temperature and Humidity
|
One month |
-20~60°C,45~85%RH |
Three months |
-20~45°C,45~85%RH |
|
One year |
-20~25°C,45~85%RH |
|
Protection Functions |
Over charge, Over discharge, |
|
Warranty |
12 mouths |
Advantages (aw imr 16340 3.7v 600mah)
·High capacity, low inner resistance, long cycle life, low self-discharge
.Long cycle life, more than 800 charge/discharge cycles under normal use
·No memory effect, economically and conveniently.
·Handling performance, maintenance-free and wide application.
·Strong current charge and discharge capability reached IEC standard
·Green power, kamcy battery is free of Pb, Hg, Cr6+, PBB and PBDE
·Powerful output, maximize your electronic appliances performance
·Can be rapidly charged with any quick charger, smart chargers, plug in charger or universal chargers
You must carefully read, and comply with the safety instructions and precautions in this Safety Instructions guide before charging, using your battery.
Failure to read, and follow Li-ion safety instructions, and warnings may result in fire, personal injury, and property damages if battery is charged and/or used improperly.
Lithium-ion battery cells may get extremely hot, explode or ignite, and cause serious injury if exposed to abuse conditions. Be sure to follow the safety warnings listed below.
What is short circuit?
Situation when battery positive (+) and negative (-) connect. The current will become extremely high because there is no resistance in the path to limit current flow. Short circuit will result in dangerously high temperature which may cause fire.
Warning:
The use of any unprotected li-ion cylindrical 18650 battery as a stand-alone device, including with e-cigarettes, vaporizer pens or other products, constitutes a DANGEROUS misuse of the battery cells that poses a SERIOUS RISK of personal injury or property damage. These cells are only for prototyping with proper electronic protection circuits, and not for stand-alone use.
These are high discharge current & high capacity 18650 Li-ion batteries. If mishandled or mistreated, these batteries can cause you SERIOUS INJURY. USE AT YOUR OWN RISK.
