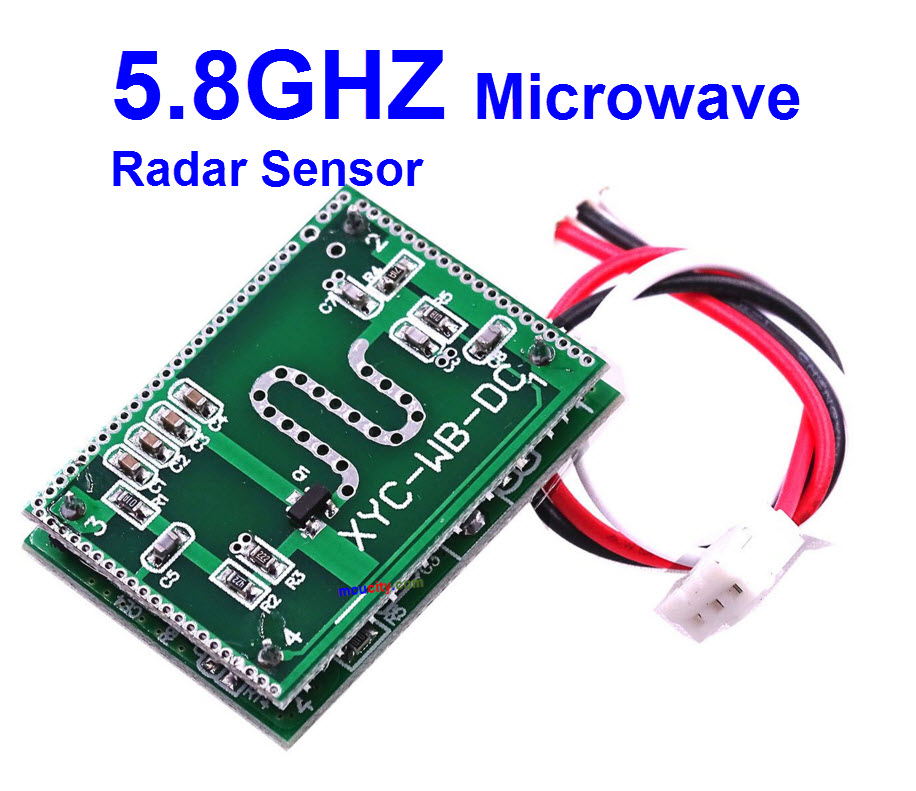

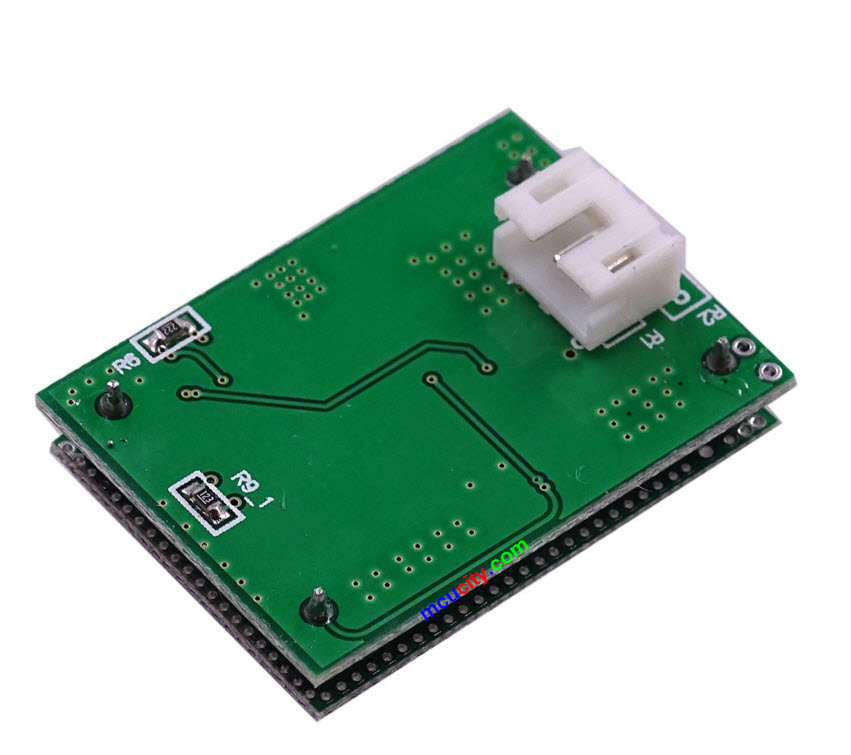

5.8GHZ Microwave Radar Sensor Module 6-9M Home Control 5.8G DC 3.3V-20V

Xyc-wb-dc. is the automatic induction control product for doppler radar technology. It is sensitive to high, remote sensing distance, strong reliability, wide induction Angle and wide range of power supply voltage. It is widely used in various human body induction lighting occasions, burglar alarm situation.

Features: microwave induction is used to transmit and receive echo by plane antennas. The switch is active sensor, and the sensor emits high-frequency electromagnetic wave and receives their echo. The sensor detects changes within the echo and even tiny movements within the true detection range, and then triggers the microprocessor to execute the instructions. The signal can penetrate the door, the glass plate and the thin wall. Note: the detection effect of a person or object moving towards the sensor is the best! This product has strong anti-interference ability, and is not affected by external environmental factors such as wind and heat.



Description:



It uses Doppler radar technology, with auto-sensing capabilities to control other product,High sensitivity, sensor distance, reliability, wide angle sensor,Wide supply voltage range and other characteristics. Widely used in lighting situations,anti-theft alarm situations.



Features:

1. microwave sensors using planar antenna and receiving echo.

2. The switch is active sensors.

3. The sensors emit a high-frequency electromagnetic waves and receives their echo.

4. The sensors detect changes within echo.

5. The sensors detect tiny movement in detect range.

6. Send signal to MCU and execution instruction.

7. Signals are likely to be detected through the door, glass and thin walls.

8. It will get best probe result if person or object when moving toward the sensor.

9. This product is a strong anti-jamming capability, almost without wind, heat and other environmental factors foreign interference





Parameter:





1. working voltage: 3.3-20VDC;

2. standby quiescent current: <3mA;

3. transmit power: <2mW;

4. the working environment temperature: -20°~+80°;

5. Trigger: Repeat Trigger (default);

6. the output signal: TTL level; high->3.3V/Low->0V;

7. detection angle: 360°(spherical) no dead ends;

8. detection range: 6-9 meters (when ordering optional). The default setting 8 meters;

9. the working delay: 1 second to hundreds of seconds, the default setting 30S;



Usage notice:



1. It is better away from wall about 3-4 meter.against get sensor from another side of wall;

2. Open areas more responsive







Application:



1. Security

2. Intelligent Lighting

3. Body sensors toys

4. Industrial automation and control

5. Auto-sensing electrical equipment

6. Battery-powered automatic control
