Actiontec 5V3A (3.5A max) router / fiber cat / set-top box / power adapter (ผ่านการใช้งานแล้ว)

Actiontec 5V3A (3.5A max) router / fiber cat / set-top box / power adapter (ผ่านการใช้งานแล้ว)
Actiontec 5V3A (3.5A max) router / fiber cat / set-top box / power adapter (ผ่านการใช้งานแล้ว)Actiontec 5V3A (3.5A max) router / fiber cat / set-top box / power adapter (ผ่านการใช้งานแล้ว)Actiontec 5V3A (3.5A max) router / fiber cat / set-top box / power adapter (ผ่านการใช้งานแล้ว)Actiontec 5V3A (3.5A max) router / fiber cat / set-top box / power adapter (ผ่านการใช้งานแล้ว)Actiontec 5V3A (3.5A max) router / fiber cat / set-top box / power adapter (ผ่านการใช้งานแล้ว)Actiontec 5V3A (3.5A max) router / fiber cat / set-top box / power adapter (ผ่านการใช้งานแล้ว)Actiontec 5V3A (3.5A max) router / fiber cat / set-top box / power adapter (ผ่านการใช้งานแล้ว)
รหัสสินค้า M1169
หมวดหมู่ Power Adapter 100-240V to DC 3-24V
ราคา 100.00 บาท
น้ำหนัก 200 กรัม
ลงสินค้า 13 เม.ย. 2560
อัพเดทล่าสุด 20 พ.ค. 2564
ขออภัย สินค้าหมด
บัตรประชาชน
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

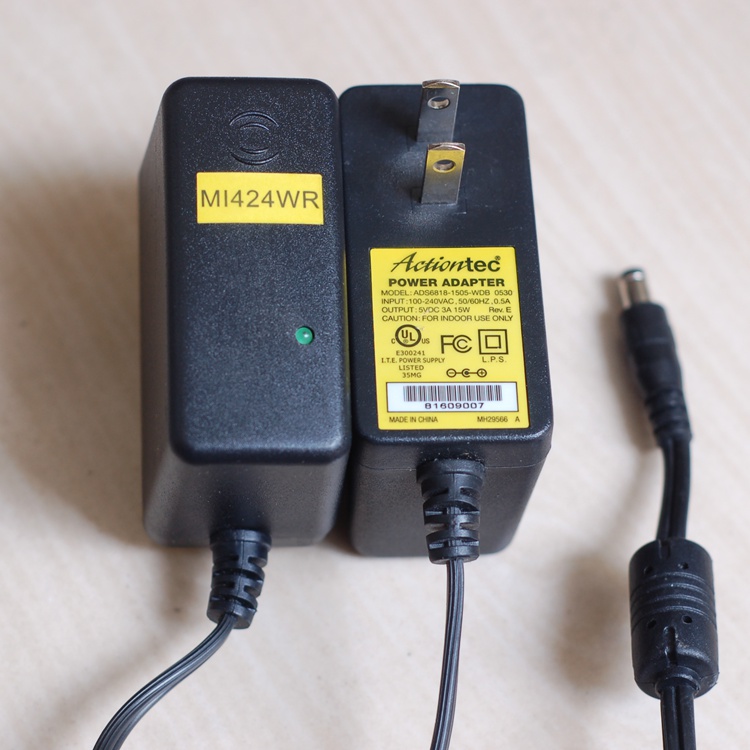

 US plug Actiontec ADS6818-1505 5V 3A 15W Power supply AC Adapter ADS6818-1505-WDB

[Application]

The scope of application is suitable for ADSL Cats, HUB,
surveillance cameras, hard disk box, HD player, routers, switches,
hubs, chargers and other electronic products

[Features]
super load capacity, stable voltage,
short-circuit protection, overload protection and automatic reset function,
through the United States UL and other national security Certification



BRAND :  Actiontec
MODEL :  ADS6818-1505
Input:  AC110-240V ,50/60Hz ,0.5A
Output :  5V 3A 15W (3.8A max Cut off at 4.2A)
PLUG MODEL :  US PLUG
DC connector :  5.5mm * 2.1mm with a card spring
Product net weight  184g
LED display  Yes

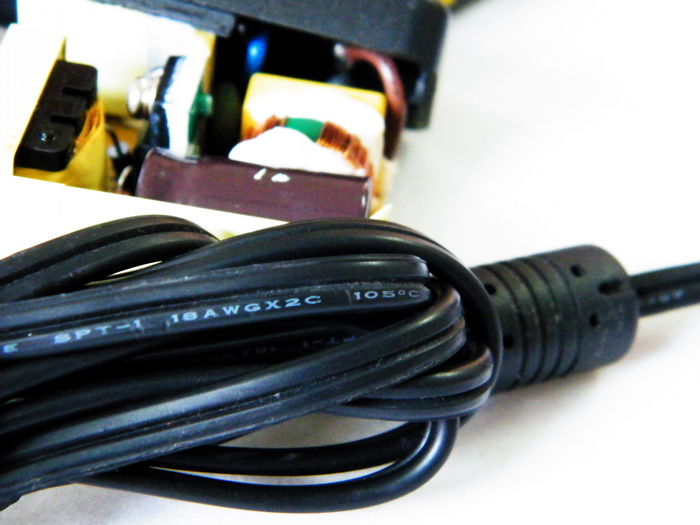

Output line length  1.8M


*

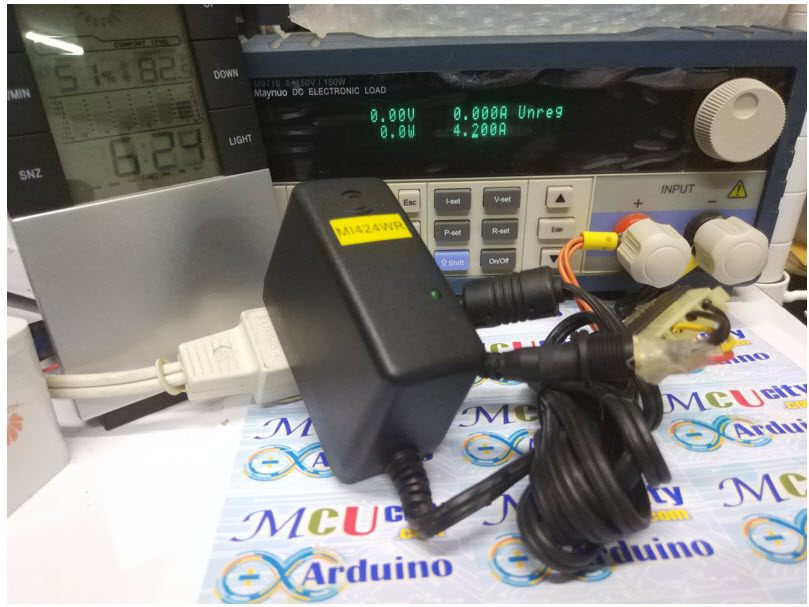

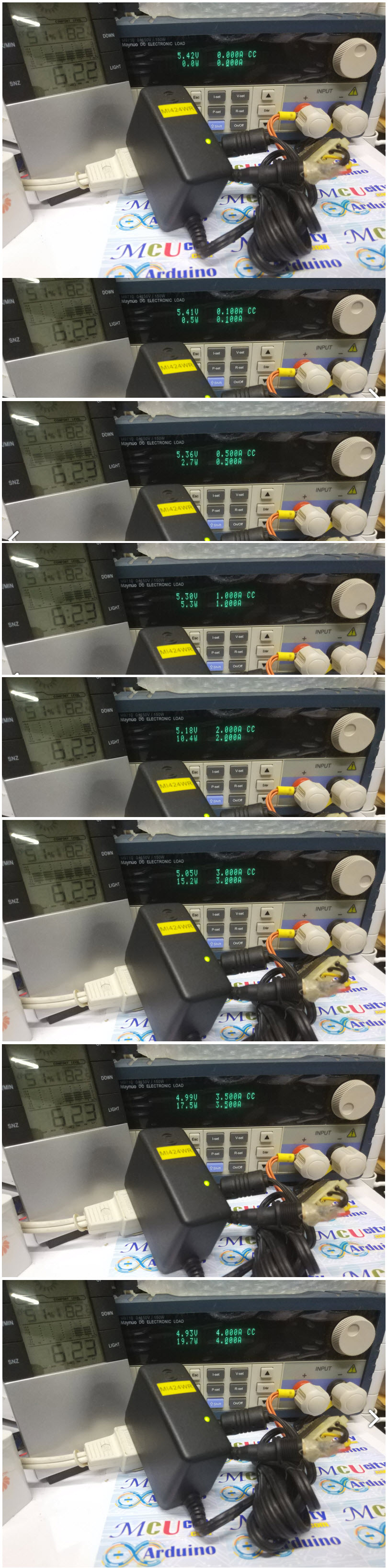

ผลการทดสอบ  Actiontec 5V 3A  โดยสามารถจ่ายกระแส มากถึง 4A (4000mA) และวงจรจะตัดการทำงานเมื่อจ่ายกระแสมากกว่า 4200mA




วงจรหยุดจ่ายกระแสไฟ เมื่อมีกระแสไหลออกมากกว่า 4200mA

Important Li-ion Battery Safety Instructions and Warnings:

You must carefully read, and comply with the safety instructions and precautions in this Safety Instructions guide before charging, using your battery.
Failure to read, and follow Li-ion safety instructions, and warnings may result in fire, personal injury, and property damages if battery is charged and/or used improperly.

Lithium-ion battery cells may get extremely hot, explode or ignite, and cause serious injury if exposed to abuse conditions. Be sure to follow the safety warnings listed below.

  • DO NOT SHORT CIRCUIT. Short circuits may cause fire, and injury!
  • Charge battery fully to 4.2V before first use.
  • Use high quality charger specifically designed to charge Li-ion batteries.
  • Do not charge unattended.
  • Always keep your battery that is not in use inside plastic battery holder.
  • Do not keep bare battery in your pocket, purse, or anywhere together with other metal (conductive) objects.
  • Never attach any metal moving part |magnet| to the top-positive, or the bottom-negative battery contact.
  • Stop using battery with damaged PVC tube (wrap) or terminal insulator immediately.
  • If battery is damaged in any way stop using it immediately.
  • Never discharge a Li-ion battery at a rate exceeding the maximum discharge current specified for that battery.
  • Never use force to install (insert) li-ion battery.
  • Do not use old, and new batteries together.
  • Do not solder directly onto the battery.
  • Do not immerse in any liquid.
  • Do not drop the battery. Always keep it in plastic protective holder.
  • Do not place the battery in high-pressure containers, microwave ovens,or on induction cookware.
  • Immediately discontinue use of the battery if, while using, charging or storing the battery, the battery emits an unusual smell, feels hot, changes color or shape, or appears abnormal in any other way.
  • Do not carry, or store the batteries together with hairpins, necklaces, or other metal objects.
  • Do not use with vaporizer, e-cigarette, or similar device.
  • Use only high quality battery Li-ion charger (CC/CV 4.2V max).
  • Do not expose to heat.
  • Do not disassemble, or modify the battery.
  • Keep the battery away from children, and pets.
  • Never charge, or store the batteries inside your car in extreme temperature. Extreme temperatures (low or high) might ignite the battery, and cause fire.
  • Do not short (connect) positive, and negative battery terminals (contacts) intentionally, or unintentionally.
  • Never charge battery over 4.25V (properly charged li-ion battery is 4.2 Volts / full charge).
  • Do not reverse the positive (+) and negative (-) terminals when charging, or using battery.
  • Never charge the battery at a current exceeding manufacturer-specified charging current.
  • Do not expose the battery to water or salt water, or allow the battery to get wet.
  • You must verify polarity before connecting the battery to the host device (or charger).
  • Never completely discharge li-ion battery ( below 2.5V under load ).
  • After battery is discharged-don't leave it discharged-charge battery as soon as possible (10 min. rest time).
  • It is your responsibility to determine that your charger, and host device works properly.
  • On (battery electrolytes) exposure to skin, flush with water immediately.
  • If eye exposure occurs, flush with water for 15 minutes, and seek emergency care immediately.


What is short circuit?

Situation when battery positive (+) and negative (-) connect. The current will become extremely high because there is no resistance in the path to limit current flow. Short circuit will result in dangerously high temperature which may cause fire.



Warning:

The use of any unprotected li-ion cylindrical 18650 battery as a stand-alone device, including with e-cigarettes, vaporizer pens or other products, constitutes a DANGEROUS misuse of the battery cells that poses a SERIOUS RISK of personal injury or property damage. These cells are only for prototyping with proper electronic protection circuits, and not for stand-alone use.

These are high discharge current & high capacity 18650 Li-ion batteries. If mishandled or mistreated, these batteries can cause you SERIOUS INJURY. USE AT YOUR OWN RISK.
