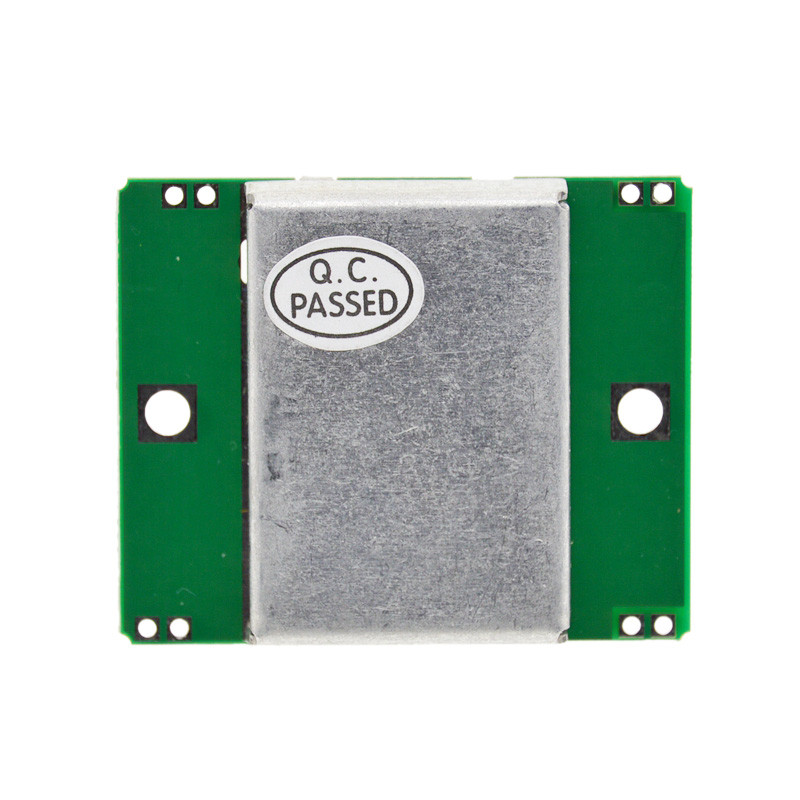

HB100 miniature microwave motion sensor

HB100 Doppler Sensor

HB100 Microwave Doppler Radar Wireless Module Motion Sensor HB100, Microwave Motion Sensor, Motion Detector

http://www.theorycircuit.com/hb100-microwave-motion-sensor-interfacing-arduino/

HB Series of microwave motion sensor module are X-Band Mono-static DRO Doppler transceiver front-end module. These modules are designed for movement detection, like intruder alarms, occupancy modules and other innovative ideas. The module consists of Dielectric Resonator Oscillator (DRO), microwave mixer and patch antenna

Feature:

1 transmission frequency: 10.525 GHz
2 Frequency Setting Accuracy: 3MHz
3 Output power (minimum): 13dBm EIRP
4 Operating voltage: 5V ± 0.25V
5 Operating Current (CW): 60mA max., 37mA typical
6 harmonic emission: <-10dBm
7 Pulse mode:
8 average current (5% DC): 2mA typ.
9 Pulse Width (Min.): 5uSec
10 load cycles (Min.): 1%

Receiver:

1 Sensitivity (10dB S / N ratio) 3Hz to 80Hz band width:-86dBm 3Hz to 80Hz bandwidth of clutter 10uV
2 Antenna Gain: 8dBi
3 Vertical 3dB beamwidth: 36 degrees
4 horizontal 3dB beam width: 72 degrees
5 Weight: 8 grams



Application:

The HB100 microwave module is the use of Doppler radar (Doppler Radar) detector of the design principles of the microwave moving objects, mainly used in the automatic door control switch, security systems, ATMcash dispenser control systems, automatic train signal places. HB100 is standard 10.525GHz microwave Doppler radar detector, this detection method has the following advantages compared with other detection methods: a non-contact detection;, free from temperature, humidity, noise, air, dust, light impact, suitable for harsh environments; 3 , the ability of anti-radio interference; 4, the output power to constitute a hazard to human beings; 5, distance: the detection range of more than 20 meters .



Introduction of the Doppler principle : the Doppler theory is based on the time when radio waves hit an object in the process of moving the radio wave reflection, the frequency of the reflected wave with mobile hit an object state change. If the location of the radio waves encounter an object is fixed, then the reflected wave frequency and launch wave frequencies should be equal. If the object is moving in the direction of the launch of mobile, then the reflected wave will be compressed, that is, the frequency of the reflected wave will increase; the contrary the frequency of the reflected wave decreases.



Microwave detector based on the Doppler principle by the FET media DRO microwave the shocks source (10.525GHz ), power splitter, transmitting antenna, receiving antenna, mixer, and detector circuit (Figure2 ). Transmitting antenna out beaming microwave, encounter objects reflection, the reflected wave receiving antenna receiver, and then to the mixer and Sasser mixed, mixed low-frequency signal, the detector response to the speed of objects movingn adjust the direction to achieve the best coverage area.





manual:

The to 10.525GHz of microwave and lower frequency wave compared with the following advantages: a microwave antenna with good directionality, it is easy to control the scope of the microwave probe. 2 , the microwave in the transmission process easier to attenuation, absorption and reflection, encounter walls of the occluder will be blocked, so walls and other obstacles outside the objects of their interference is very small.



Power supply: the HB100 supply continuous DC power supply ( CW ) mode and pulse power supply ( PW ) mode: HB100 to adapt the voltage range is 5V ± 5 %. Continuous DC power supply ( CW) mode, typical current of 35mA (typical). supply of low duty cycle pulse (PW) mode, it is recommended to HB100 5V , pulse width of 5 μ s 30 of μ s (typically 20 μ s ), frequency of~~ 4kHz ( is typically 2.0kHz ) pulse power supply. 3 to 10 % of the average current duty cycle pulse power supply at 1.2mA ~~ 4mA .



Pulse power supply voltage must be 4.75V to 5.25V between the pulse top flatness may affectHB100 . Supply voltage exceed 5.25V , its reliability will be reduced and may lead to permanent damage of the nominal frequency of the RF output of the circuit.



RF output : all the recommended operating mode, the the HB100 RF power output is very low, both in the human body do not constitute any hazard to work within a safe range. Continuous DC power supply ( CW ) mode, the total output power less than 15mW . Output power density5mm at 1mW/cm 1m for 0.72 μ W / cm 2 . When at 500 % duty cycle pulse power supply mode, the power density decreased to 50 μ of W / cm 2 and 0.036 μ of W / cm 2 .



IF Output : When the objects in the HB100 HB100 antenna surface (non-aluminum shield the side of the antenna surface) do radial mobile, HB100 of the IF output is 72Hz / s IF the pulse output frequency with the object relative radial movement speed is approximately linear relationship. IF output amplitude and the size of the object from, when a weight of 70kg , height 170cm of the test in the distance HB100 1m impose a 1m / s for HB100 do radial movement, the IF output of 5mV , 72 Hz / s pulse signal, the IF output amplitude proportional to the square of the distance from the approximate inverse relationship.



Note : 1. detection range depends on the target reflectivity and size, and signal to noise ratio.

          2.10.525GHz under the Doppler velocity is 31Hz/mph

          3 to install the module must make the antenna surface (non-aluminum shield hood side of the antenna surface) toward the region of being detected, the user can adjust the direction to achieve the best coverage area.

1x  HB100   Wireless Doppler Radar Microwave Motion Sensor Module
