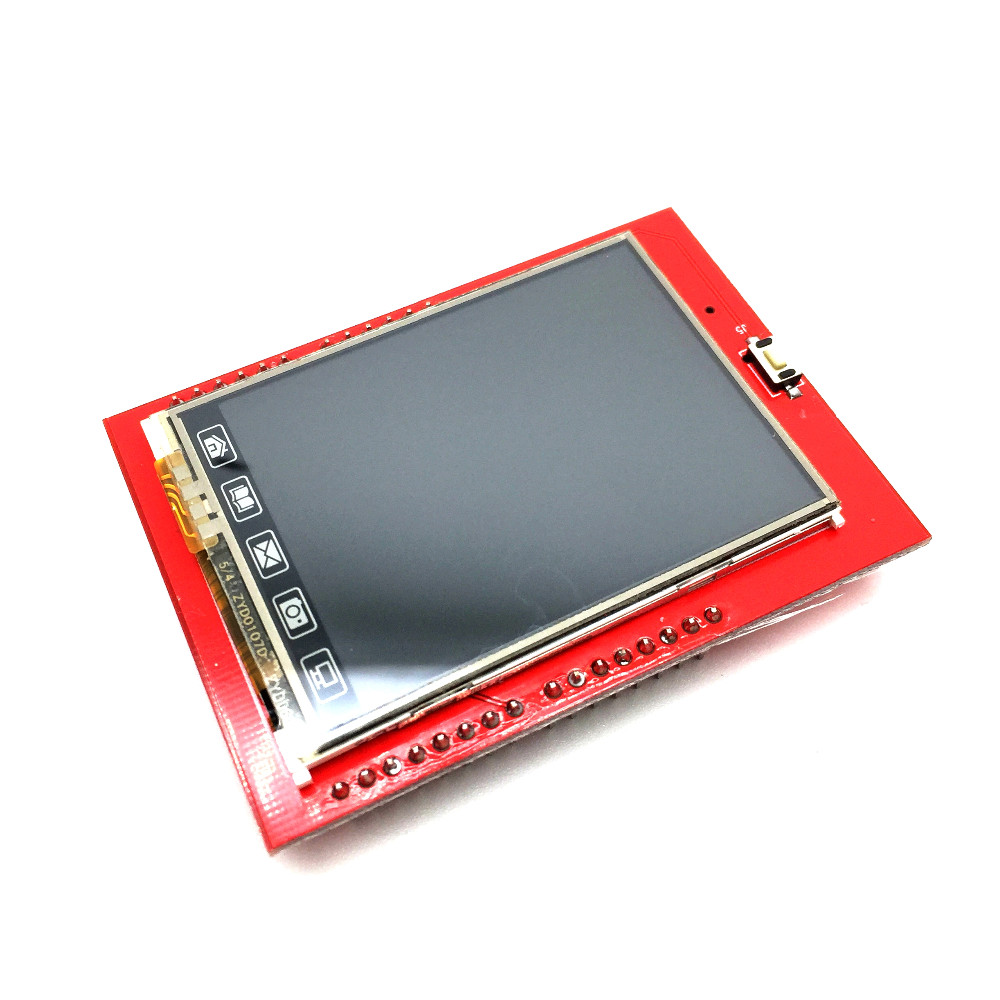

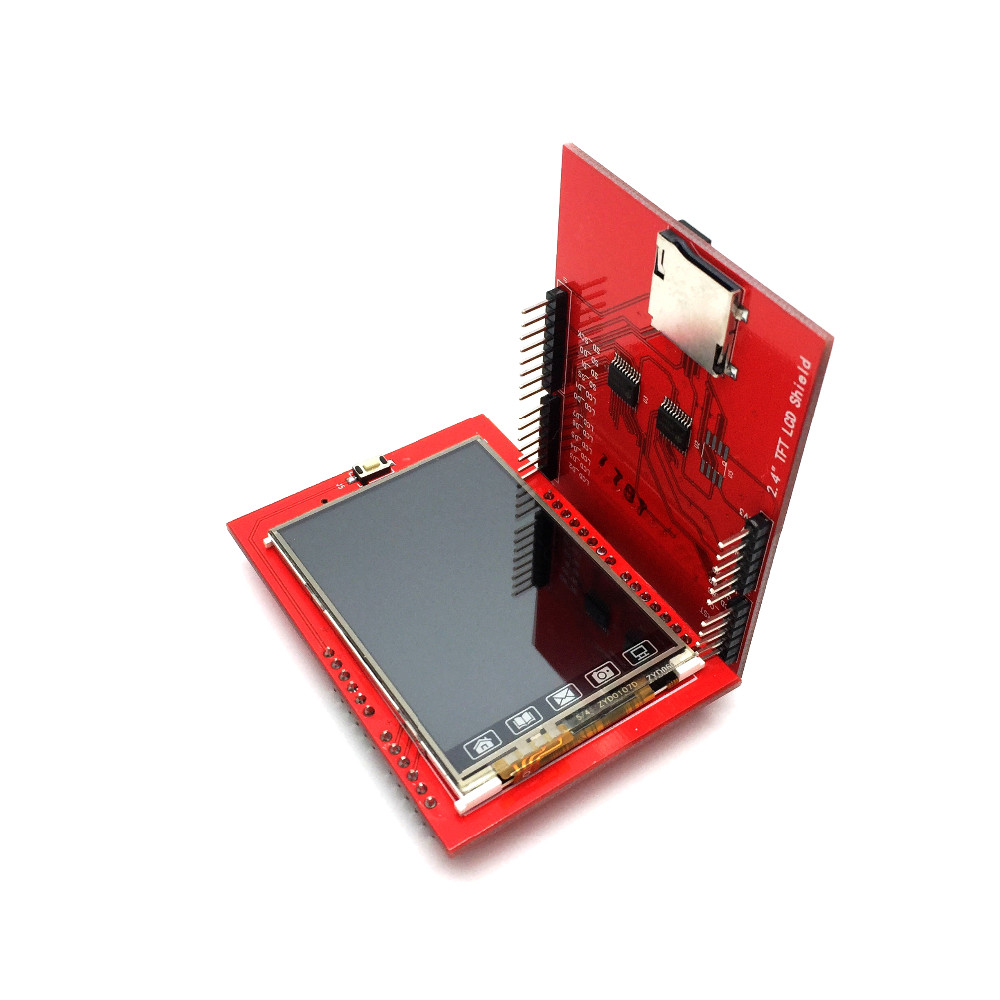

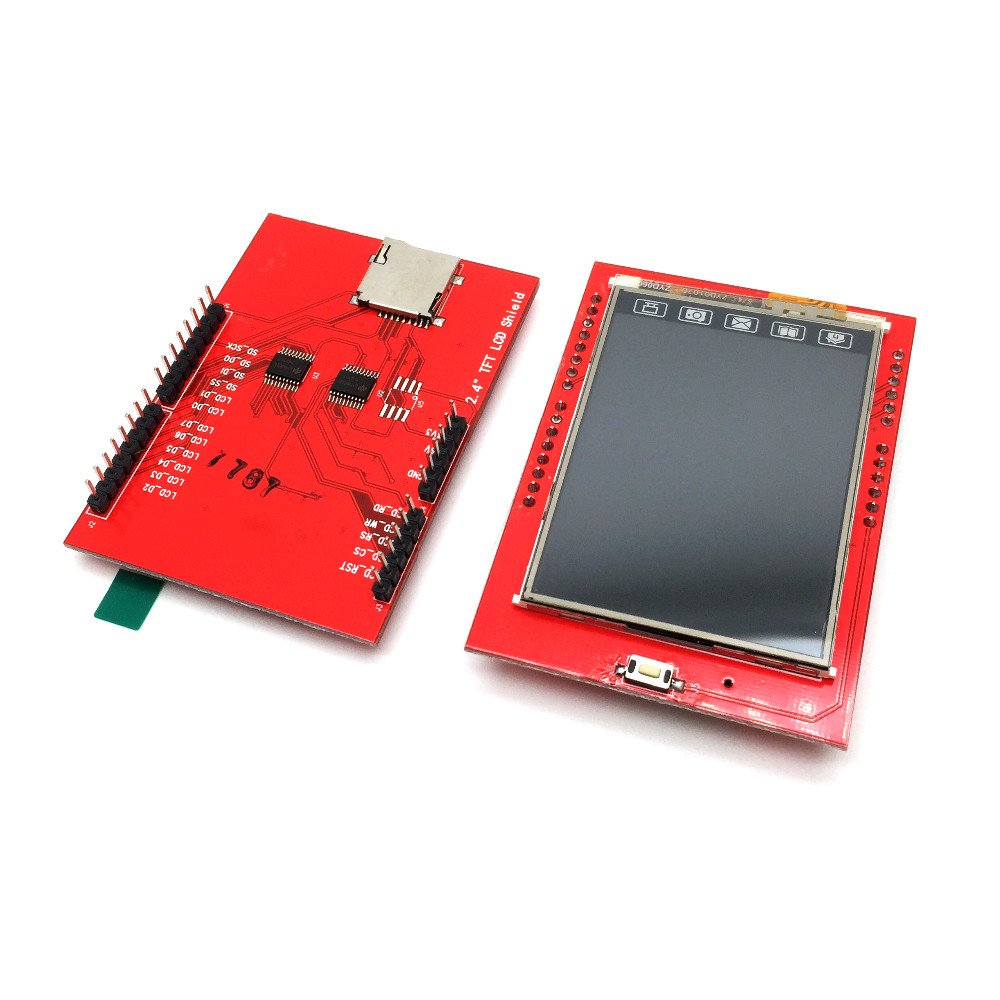

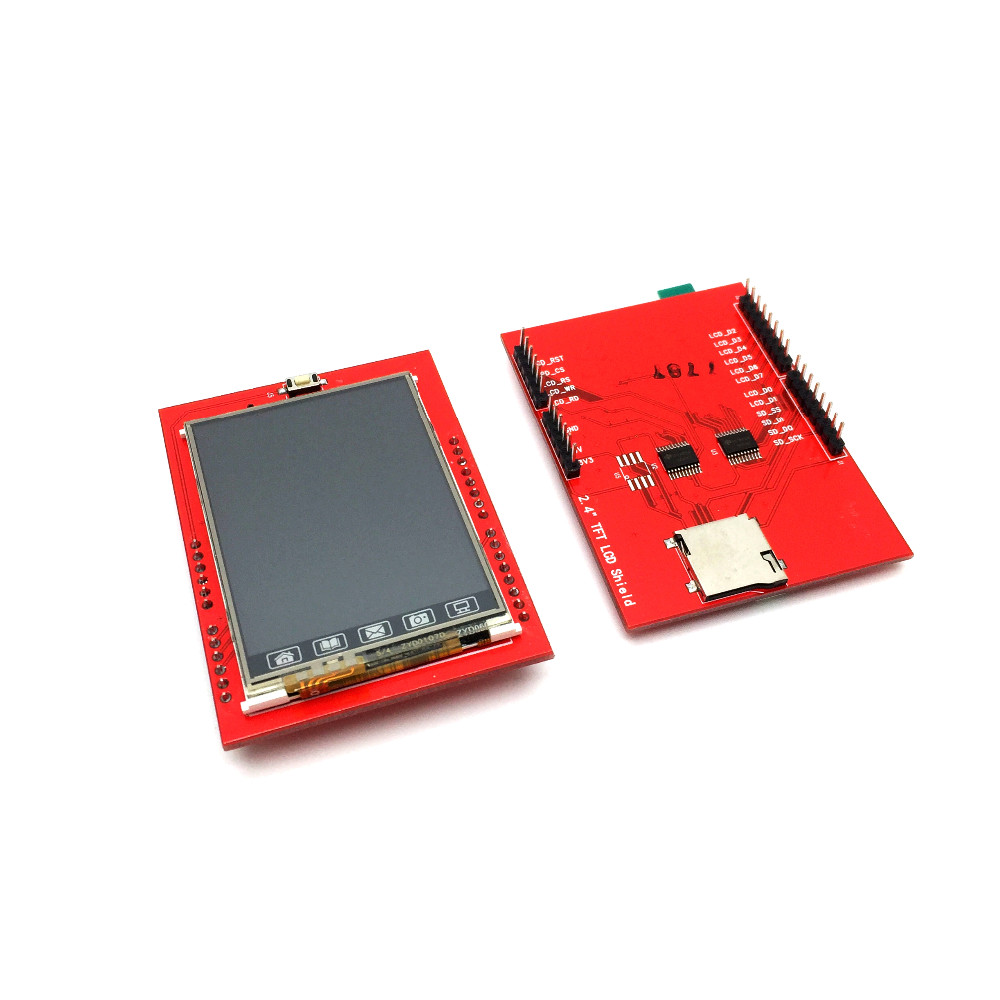

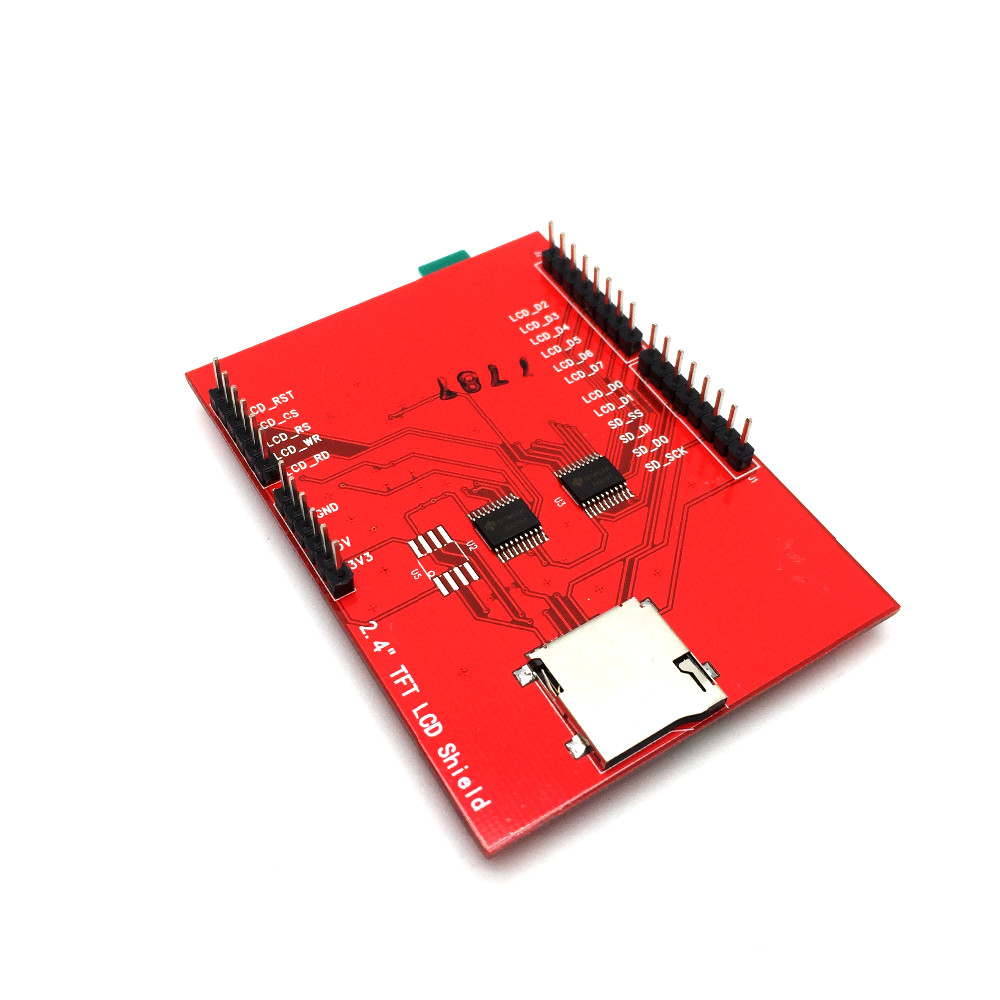

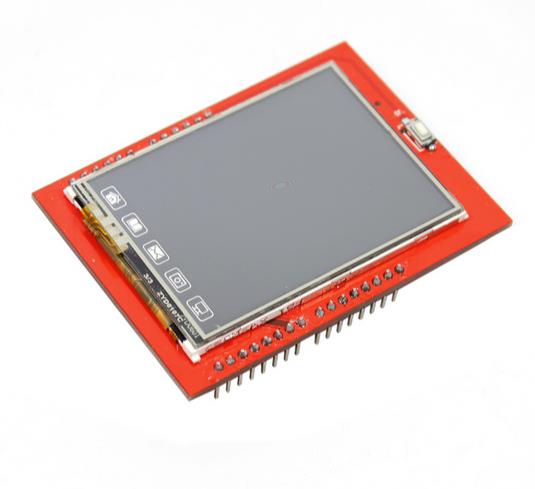

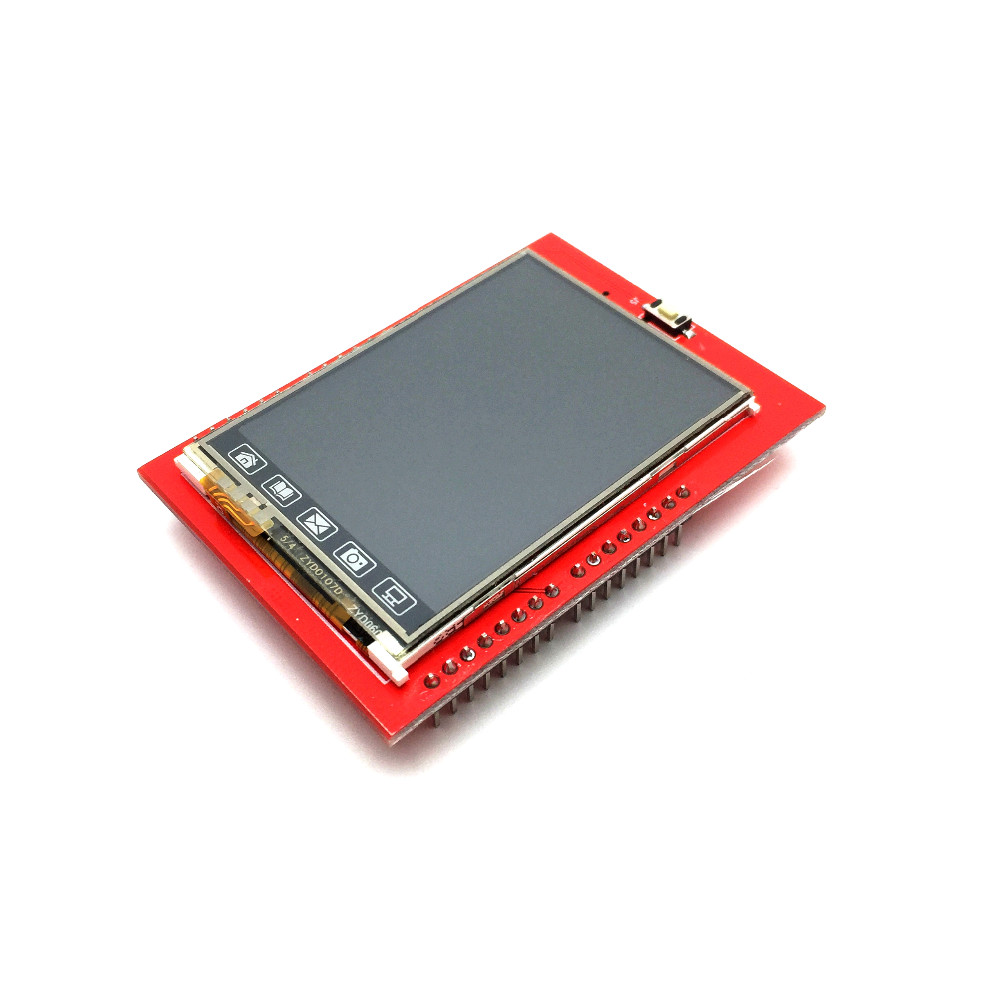

LCD Module TFT 2.4 Inch TFT LCD Screen For Arduino UNO R3 Board And Support Mega 2560

 2.4 inch TFT touch Screen LCD Module For Arduino. The LCD has excellent vivid color contrast.

Spice up your Arduino project with a beautiful large touchscreen display shield with built in microSD card connection. This TFT display is big (2.4″ diagonal) bright (4 white-LED backlight) and colorful (18-bit 262,000 different shades)! 240×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.

Technical Specifications

• 2.4″ diagonal LCD TFT display
• 240×320 resolution, 18-bit (262,000) color
• SPFD5408 controller with built in video RAM buffer
• 8 bit digital interface, plus 4 control lines
• Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the microSD
• Works with any Arduino ‘328 or Mega (Leonardo not supported yet)
• 5V compatible! Use with 3.3V or 5V logic
• Onboard 3.3V 300mA LDO regulator
• 4 white LED backlight. On by default but you can connect the transistor to a digital pin for backlight control
• 4-wire resistive touchscreen

Documents & Downloads

1. SPFD5408 LCD Controller Datasheet

2. Schematics

3. Adafruit 2.8″ Touch Screen LCD uses same graphic controller. Please see this link.

Arduino Libraries:

Following Libraries alongwith an example (graphictest) found in TFTLCD-Library-Master was tested with this 2.4″ TFT display.

• Touch-Screen Library
• TFT LCD Library
• Graphics Library

Notes: Please extract these folders under Arduino Library folder and do not forget to replace “-” (dash) with “_” (underscore)

Tested Example  :graphictest (Tested on Arduino UNO R3)

Package Includes

• 1x 2.4 inch TFT touch Screen LCD Arduino Shield
