Micro B USB microUSB Breakout Board

 Micro B USB Breakout Board

บอร์ดสำหรับแปลงตัว Micro USB เป็นขั้วต่อ 2.54mm (100mil) เพื่อต่อใช้งานได้ง่าย

This is a handy USB Micro-B breakout board. Compatible with our USB Micro cables and our DIY USB micro-b plug connectors.

Since the header pins are breadboard compatible this is a quick way to connect a USB cable to a breadboard.

This simple board breaks out a micro-B USB connector’s VCC, GND, ID, D- and D+ pins to a 0.1" pitch header. If you want to add the popular micro-B USB to your project, but don’t want to put up with soldering the tiny connector, this is the board for you.

PRODUCT CONTENTS:

1 piece — USB Micro-B Breakout Board

1 piece — 1x5 Male Header

SPECIFICATIONS:

Breadboard compatible

Board Dimensions: 16.02mm (0.631") long x 13.3mm (0.524") wide, 3mm (0.118") inside diameter of mounting holes

Weight: 1.02g (0.036oz)

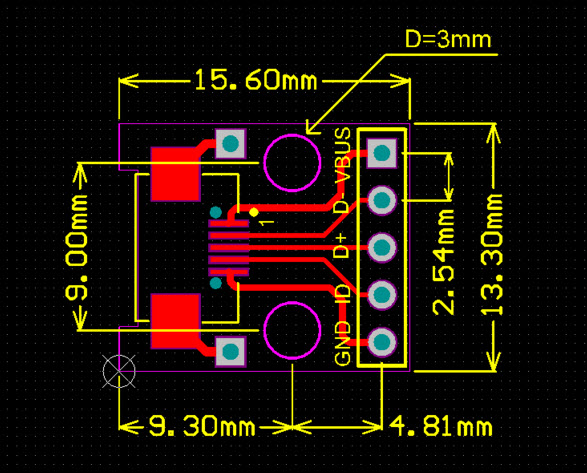

DIMENSIONS:

Allow for ±0.4mm variation in actual board size
