รหัสสินค้า | M1017-LJ12-BX |
หมวดหมู่ | วัดระยะทาง และ ความเคลื่อนใหว |
ราคา | 60.00 บาท |
น้ำหนัก | 45 กรัม |
สถานะสินค้า | พร้อมส่ง |
ลงสินค้า | 4 ม.ค. 2560 |
อัพเดทล่าสุด | 18 มิ.ย. 2568 |
จำนวน | ชิ้น |
Inductive Proximity Sensor ( LJ12A3-4-Z/BX)
ระยะตรวจจับ 4 mm (ขึ้นอยู่กับชนิดวัตถุที่ตรวจจับ)
พร็อกซิมิตี้เซนเซอร์ ตรวจจับวัตถุโลหะ
Inductive Proximity Sensor Detection Switch NPN DC6-36V LJ12A3-4-Z/BX
Specification:
Product Name | Inductive Proximity Switch |
Model | LJ12A3-4-Z/BX |
Wire Type | Cylindrical DC 3 Wire Type (Black, Brown, Blue) |
Switch Appearance Type | Cylinder Type |
Theory | Inductive Sensor |
Output Type |
NPN NO(Normal Open) |
Diameter of Head | 12mm |
Detecting Distance | 4mm |
Supply Voltage | DC 6-36V |
Current Output |
300mA |
Response Frequency | 0.5KHz |
Detect Object | Iron |
Operating Temperature | -25°C to +55°C (Non-freezing Condition) |
Size | 6.2 x 2cm/2.4'' x 0.8'' (L*Max. Dia) |
Cable Length | 110cm/43.3" |
External Material | Plastic, Alloy |
Net Weight | 46g |
Color | Silver Tone, Yellow, Gray |
Package Content | 1 x Inductive Proximity Switch |
ชื่อโมเดล: LJ12A3-4-Z/BX
Inductive Proximity Sensor Detection Switch DC6-36V
PNP NO:LJ12A3-4-Z/BY
PNP NC:LJ12A3-4-Z/AY
NPN NO:LJ12A3-4-Z/BX
NPN NC:LJ12A3-4-Z/AX

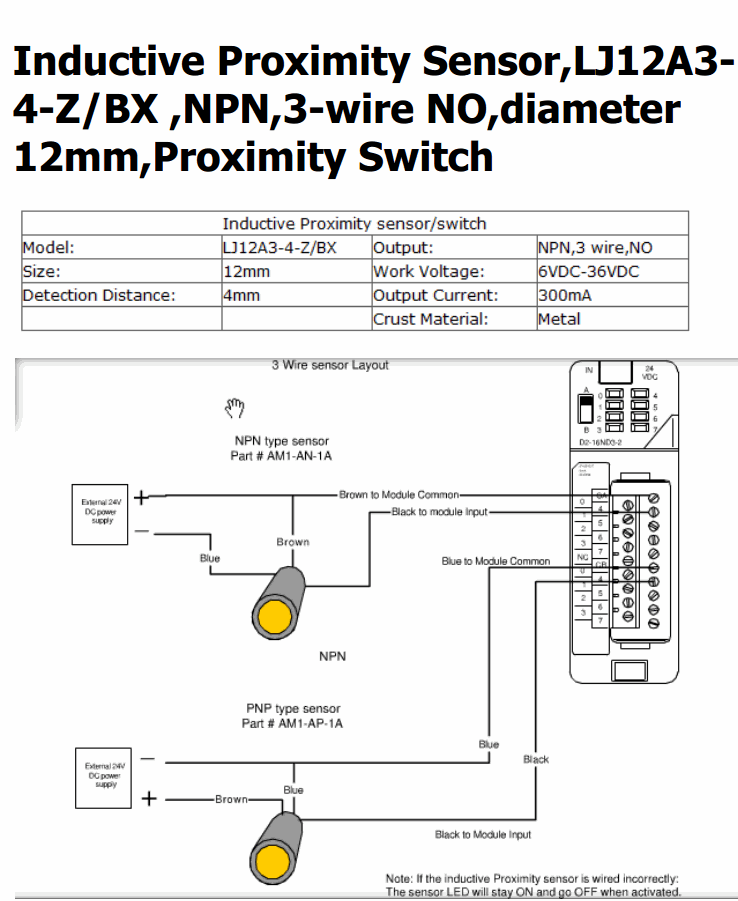

Proximity Sensor Interfacing to an Arduino (sinking sensor)
Inductive Proximity Sensor ( LJ12A3-4-Z/BX)
ระยะตรวจจับ 4 mm (ขึ้นอยู่กับชนิดวัตถุที่ตรวจจับ)
พร็อกซิมิตี้เซนเซอร์ ตรวจจับวัตถุโลหะ
คุณสมบัติอุปกรณ์
