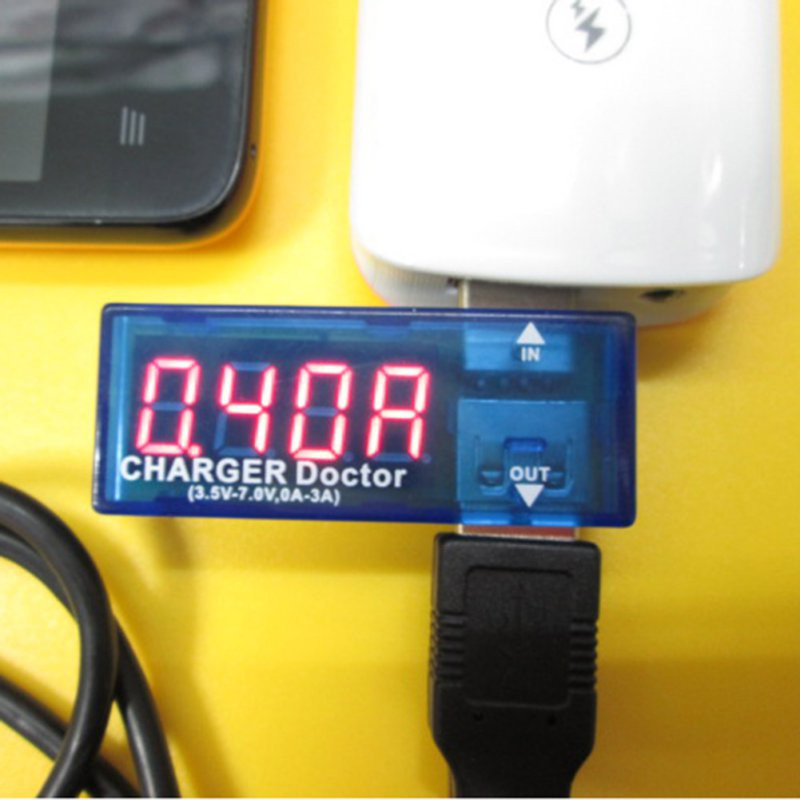

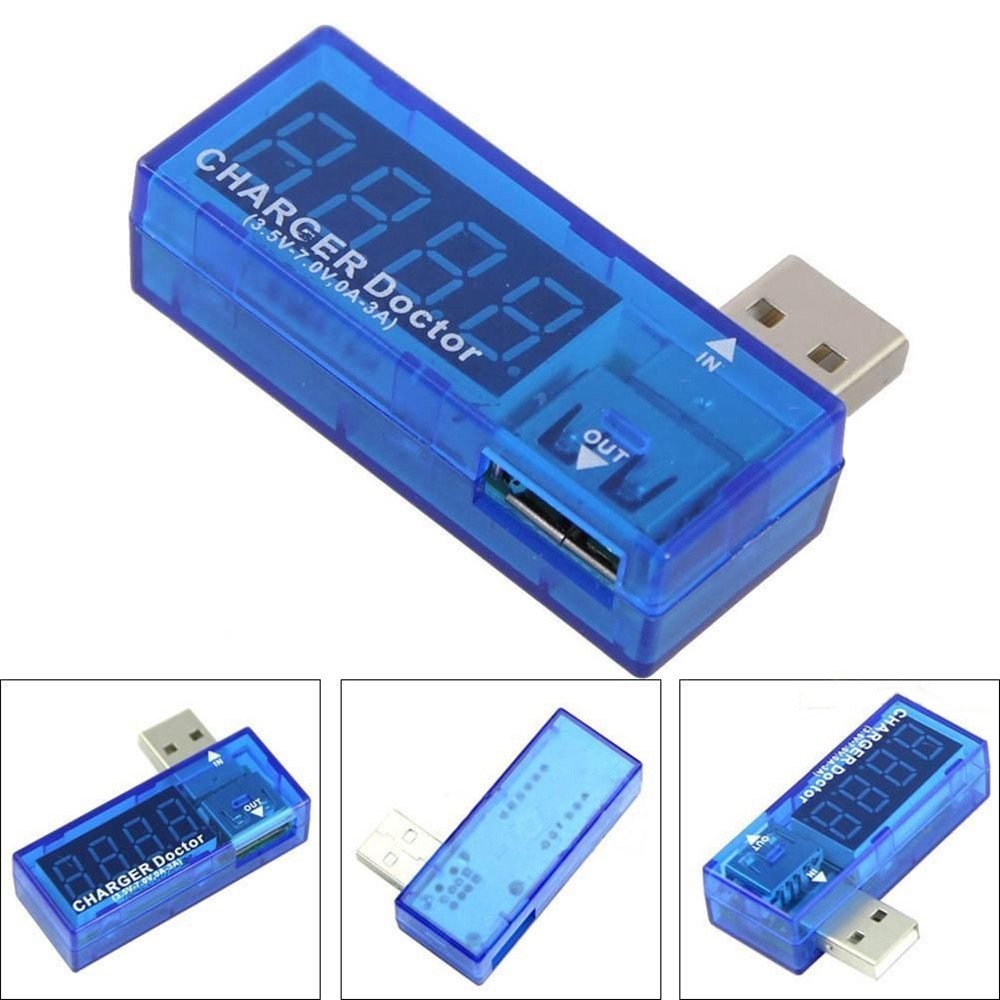

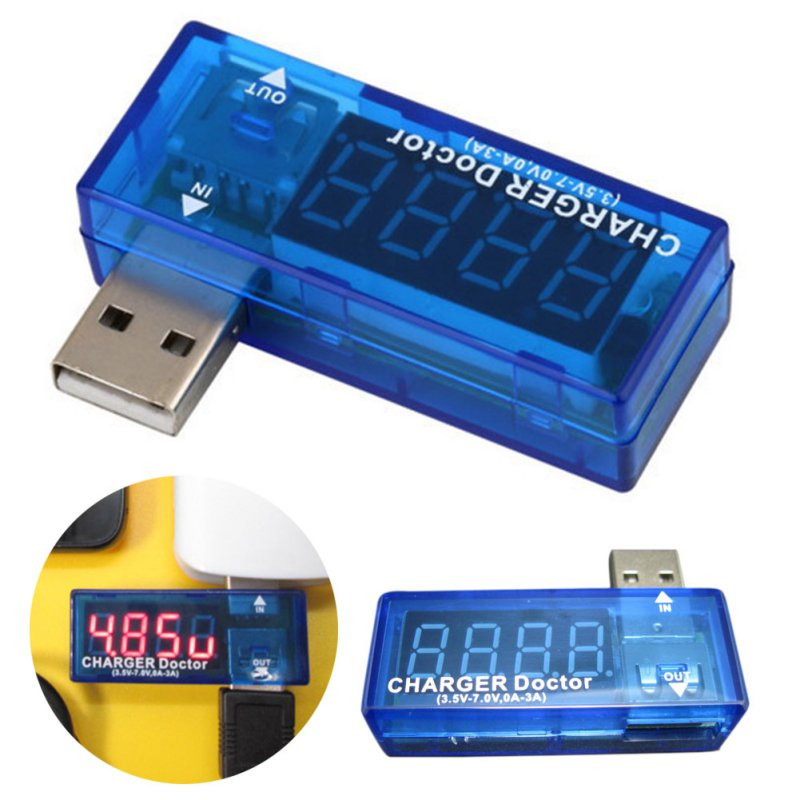

This is a portable mini current voltage detector. You can use it to measure current and voltage of the power supply equipment with USB port conveniently.
http://goughlui.com/2014/10/28/reverse-engineering-the-usb-charger-doctor/
ใช้วัดและทดสอบ แรงดันไฟและกระแส ที่ไหลผ่าน พอร์ต USB
โดยสามารถวัดแรงดันได้สูง 7V
Features:
1.Easy to measure the USB output vollage and the device input current or loader voltage.
- High quality, small sized, easy and convenient to carry
- It can measure current and voltage of the power supply equipment with USB port
- The voltage and current will be displayed circularly
2.Availabe for every USB electronic product,such as PC USB,home charger,car charger and so on.
3. Plug and play, no extra power supply needed.
4.Through "DR CHARGER",you could clearly know the condition of the charger
,phone,usb cable and every USB device.
Specifications: | |
Workable range: | (Volt) u= 3.5 - 7.0V, A= 0 - 3A |
Resolution: | Voltage 10mV, current 1mA |
Error Range: | Voltage |
Full-scale Voltage Drop: | 200mV |
Workable Temperature: | 0 - 60C |
Color: | Blue or White |
Product Dimension(L x W x H): | 52 x 34 x 15mm |
Product Weight: | 17g |
